5.2Screw in the DRIVEN PULLEY
EXTRACTOR
in the center hole of the driven pulley
adapter.
5.3Tighten the extractor until driven
pulley is free.
5.4Remove tools from the driven pulley.

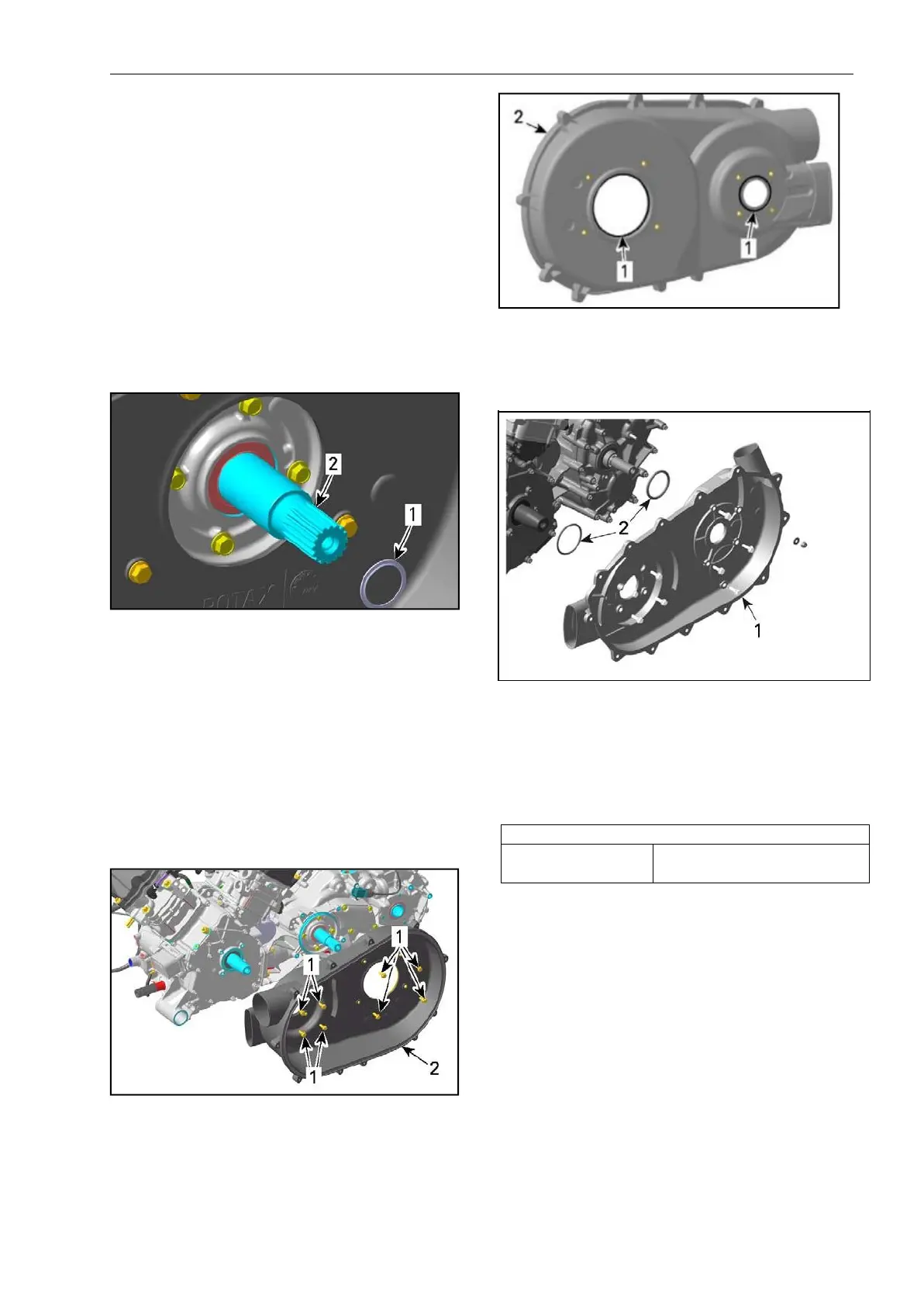

Remove thrust washer from
countershaft.
1.Thrust washer
2.Countershaft
CVT AIR GUIDE
Removing the CVT Air Guide
Remove:
– DRIVE PULLEY
– DRIVEN PULLEY
Unscrew the clamps retaining the CVT
air hoses.
Remove CVT air guide.
1.Retaining screws
2.CVT air guide
Remove and discard O-rings
1.CVT air guide
2.O-rings
Inspecting the CVT Air Guide
Clean CVT air guide from
contamination
1.CVT air guide
2.O-rings
Installing the CVT Air Guide
For installation reverse the removal
procedure
TIGHTENING TORQUE
CVT air guide
retaining
10 N•m ± 1 N•m
