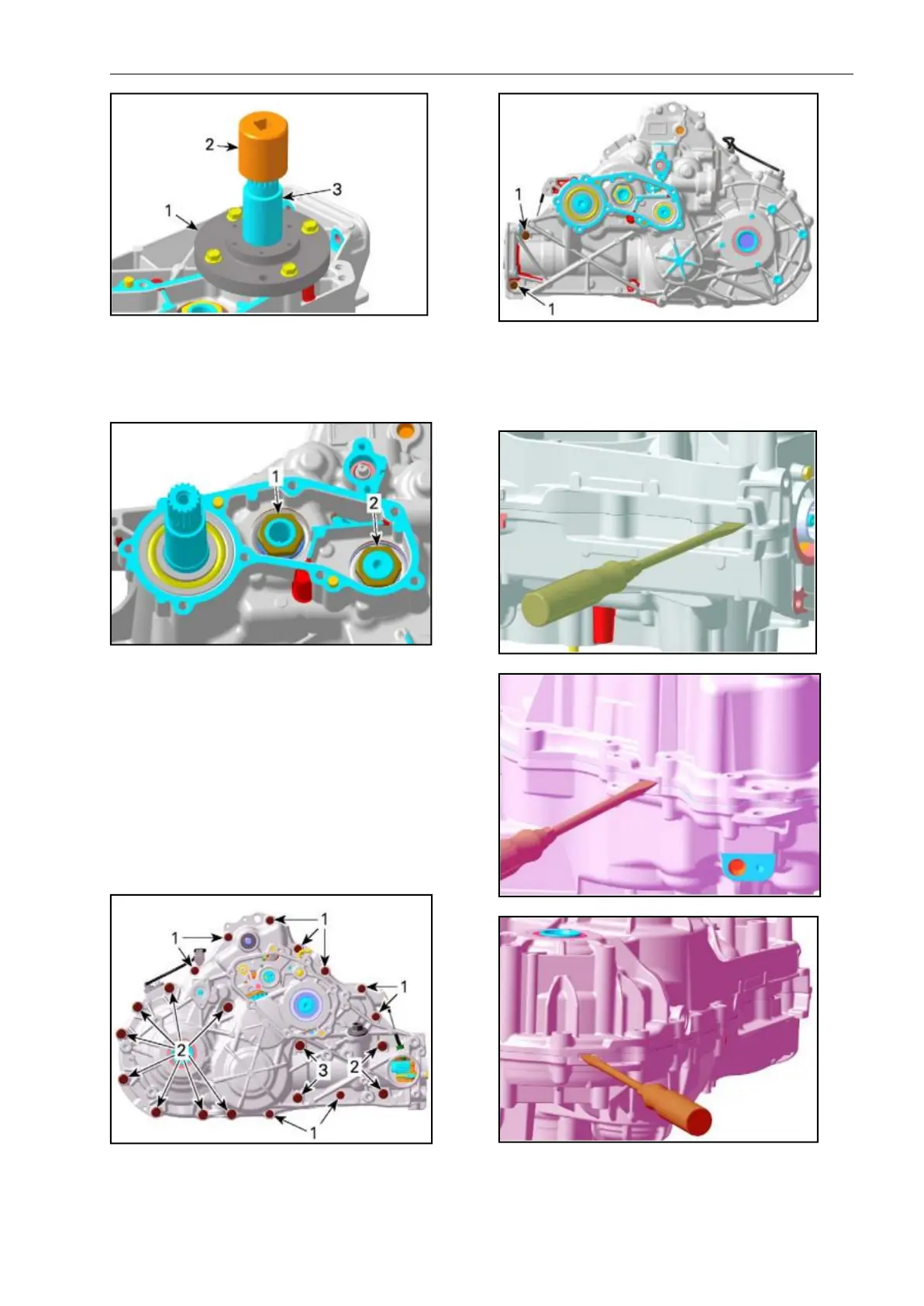

1. M34 socket
2. Spline socket
3. Countershaft
Remove nuts of main shaft and
instermediate shaft.
1. Main shaft nut
2. Intermediate shaft nut
Refer to GEARBOX AND SHAFTING
MECHANISM in this subsection and
remove:
Parking lock gear
-Index washer.
Remove all gearbox housing screws:
1. Start removing the M6 screws.
2. Then remove the M8 screws.
1.11 screws M6×45
2.10 screws M8×45
3.2 screws M8×65
1.2 screws M6×45
Separte gearbox housing,use 2 big
screwdrivers.
If necessary, refer to proce dures in this
subsection and remove:
