8.ENGINE
8-101

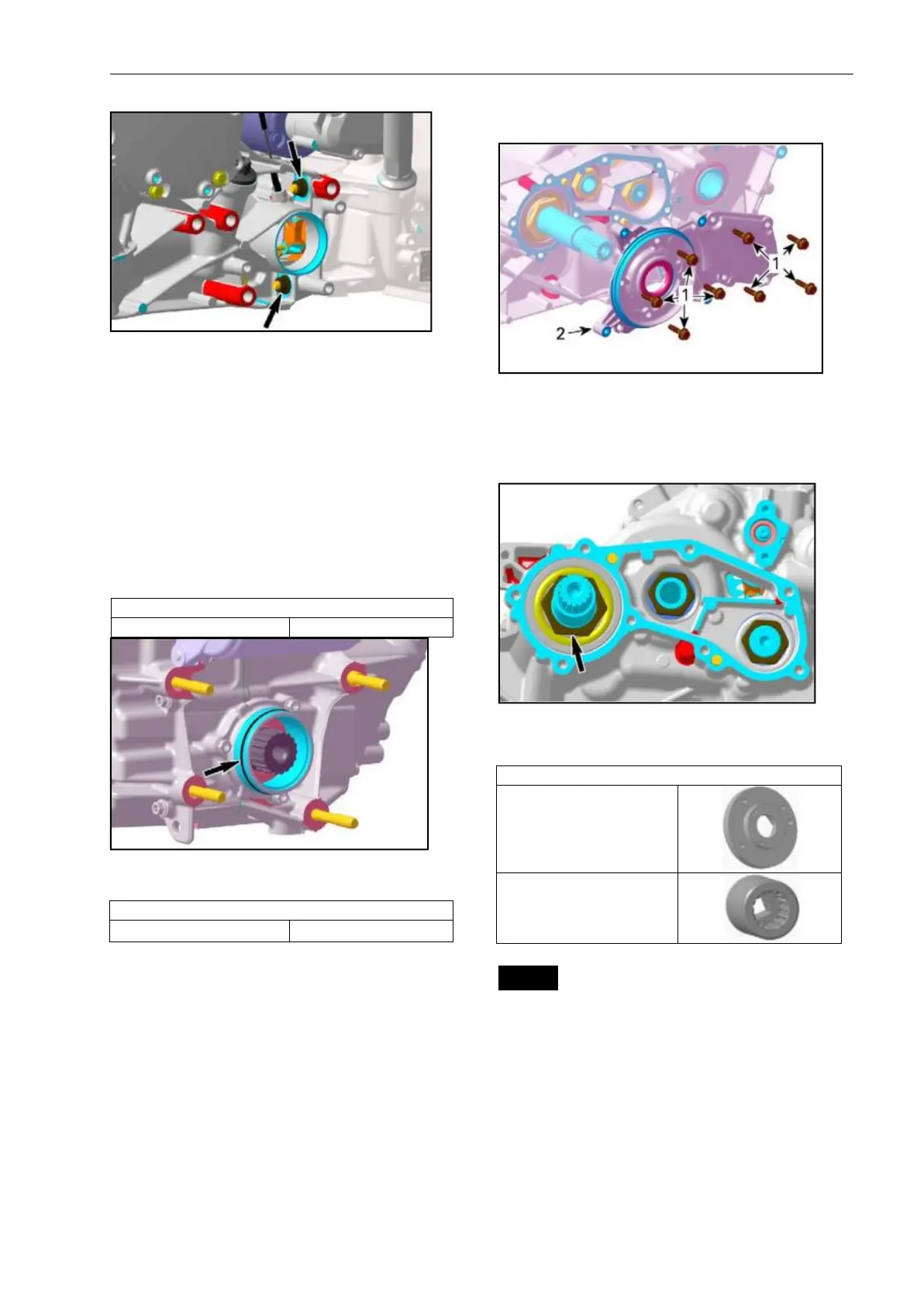

RH SIDE OF ENGINE
Pull gearbox to separate it from engine.
Installing the Gear box
For installation reverse the removal
procedure.
Pay attention to following.
Before gearbox installation check
O-ring on bearing cover if brittle,hard or
damaged.Replace if necessary.
Lubricate O-ring on rear bearing cover.
O-RING LUBRICATION
Service product
Engine oil
Tighen gearbox retaining nuts to
specification
TIGHTENING TORQUE
Gearbox retaining nuts
25N.m±3N.m
After installation refill gearbox oil,refer
to PERIODIC MAINTENANCE PRODURES
subsection.
GRARBOX HOUSING
Disassembing the Gearbox Housing
See prucedures in this subsection to
remove:
-4WD ACTUATOR
-GBPS (GEARBOX POSITION SENSOR)
-DIFFERENTIAL LOCKING ACTUATOR
Set gearbox to PARK position.
Remove bearing cover.
1. Retaining screws
2. Bearing cover
Remove countershaft nut.
△CAUTION Nut can loosen abruptly.
REQUIRED TOOL
M34 SOCKET
SPLINES SOCKET1/2
NOTICE Turn spline socket clockwise to
loosen the nut.
