Use a suitable tube with the proper
diameter to install the oil seal.
NOTICE Oil seal must be installed with
sealing lip toward gearbox.

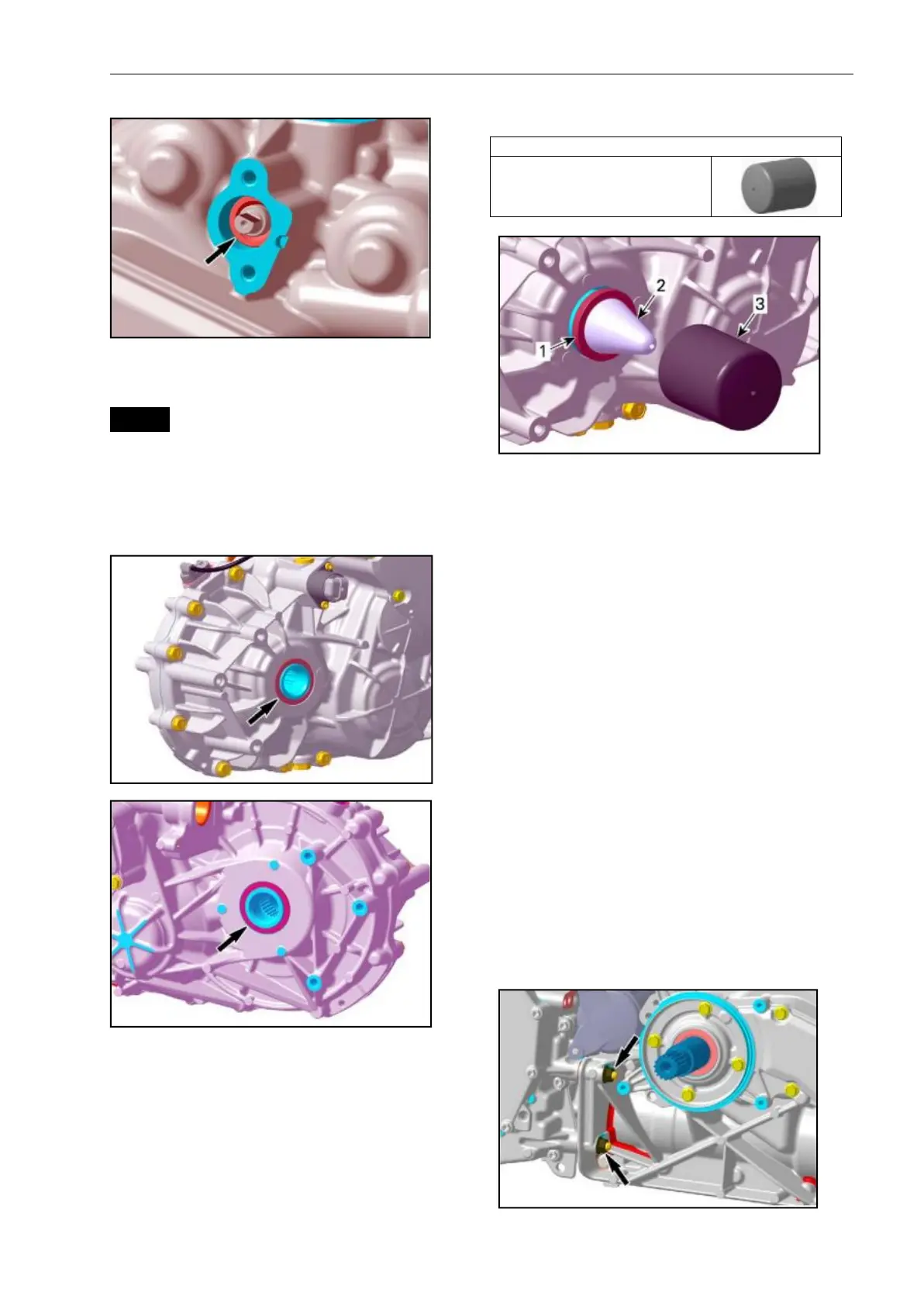

Output Shaft Oil Seal
Remove the aooropriate drive shaft.
Refer yo REAR DRIVE subsection.
RIGHT SIDE
LEFT SIDE
Punch a sharp screwdrive thought oil
seal for removal.
Place oil seal on output shaft and install
it using the following tools.
1. Output shaft oil seal
2. Eeve installer
3. Oil seal installer
GEARBOX ASSEMBLY
Removing the Gearbox Assembly
Remove engine from vehicle. Refer to
ENGINE REMOVAL AND
INSTALLATUON for the procedure.
Refer to COUNTINOUSLY VARIABLE
TRANSMISSION (CVT) subsection to
remove following parts:
- CVT cover
- Drive and driven pulleys
- CVT air guide.
Drain gearbox. Refer to GEARBOX
OIL REPLACEMENT in PERIODIC
MAINTEANCE PROCDURES
subsection.
Remove 4WD ACTUATOR see
procedure in this subsection.
Unscrew the four (4) gearbox retaining
nuts.
LH SIDE OF ENGINE
