ODES WORKCROSS UTV650 - Page 200

8.ENGINE
8-99

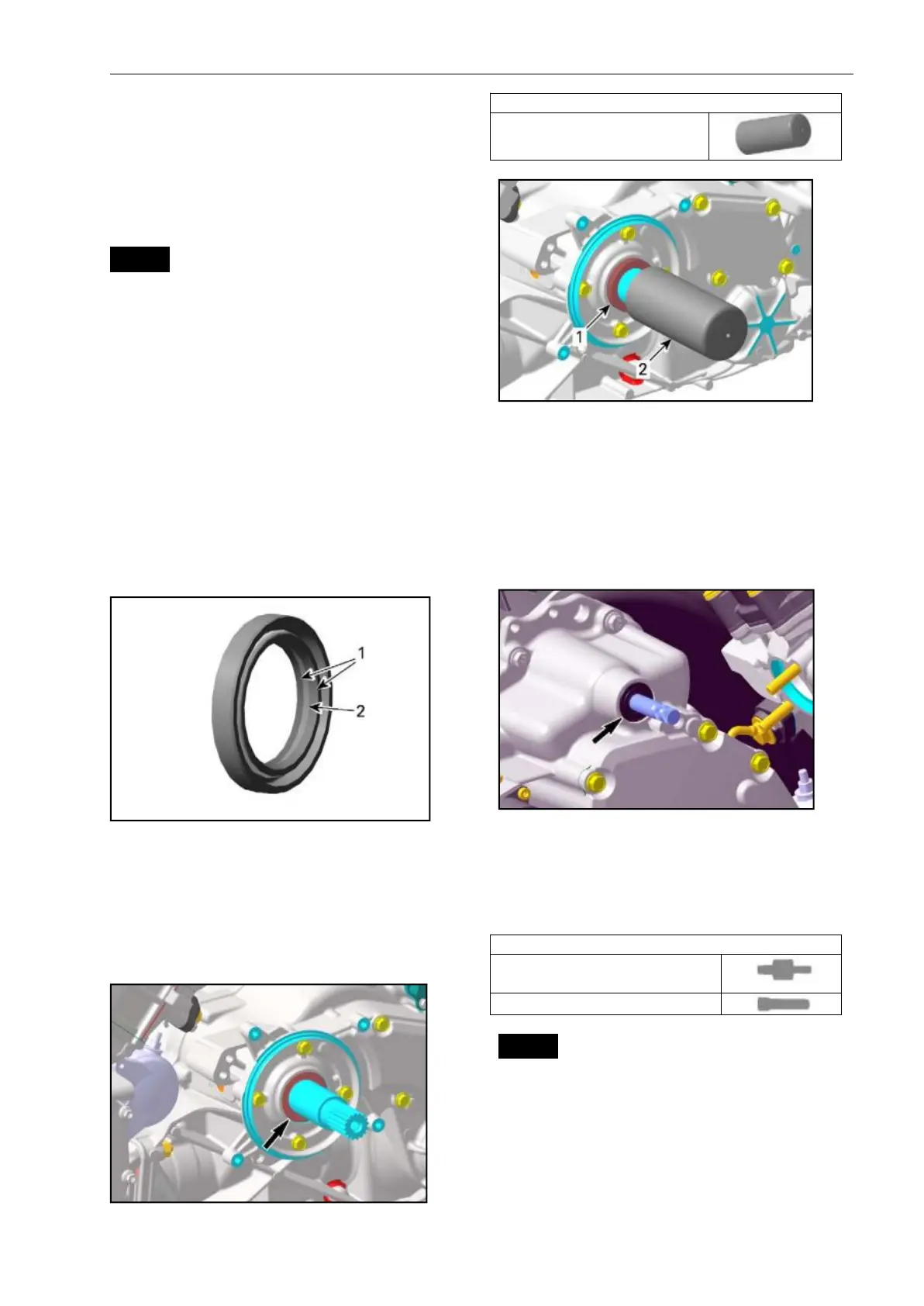

GEARBOX OIL SEALS
Replacing the Gearbox Oil Seal
Replace oil seals if they are brittle, hard
or dam- aged.
A small flat screwdriver can be used to
remove most of these oil seals.
NOTICE Avoid scoring parts during oil
seal removal.
When replacing an oil seal, take this
opportunity to inspect the following:
-Check bearings behind each oil seal for
contamination and/or metal shavings.
-Check oil seal running surfaces for
scratches. Lubricating the Oil Seal
When installing or reinstalling oil
seals,use PETAMO GREASE GHY
133N to :
-Lubricate sealing lips aii around.
-Fill up the between sealing lips halfway
aroiund the permetre.
1. Sealing lips
2. Room between sealing lips
Countershaft Oil Seal
To replace the countershaft oil seal,
remove:
-Drive and driven pulleys
-CVT air guide.
Install countershaft oil seal.
REQUIRED TOOL
OIL SEAL INSTALLER
(COUNTERSHAFT)
1. Countershaft oil seal
2. Oil seal installer
Shift Shaft Oil Seal
Remove the shaft plate. Refer to
SHIFTER subsection.
The shift shaft oil seal can be removed
without removing the gearbox from the
vehicle.
Use a suitable tube with the proper
diameter to install the oil seal.
If gearbox housing is apart, use
following tools for shift shaft oil seal
installation.
REQUIRED TOOL
OIL SEAL INSTALLER
(GEARBOX)
HANDLE
NOTICE Oil seal must be installed with
sealing lip toward gearbox.
Shift Drum Shaft Oil Seal
To replace the shift drum shaft oil seal,
remove the GBPS (GEARBOX
POSITION SENSIR). See procedure in
this subsection.
