REQUIRED TOOLS
ECM ADAPTER TOOL
Using a multmeter,recheck resistance as
per table.
If resistance value is connect replace
ECM,refer to ECM REPLACEMENT in
the ELECTRONIC FUEL
INJECTION(EFI)subsection.
If resistance value is connect,repair the
conntctor or replace the wiring harness
between ECM connector and actuator.

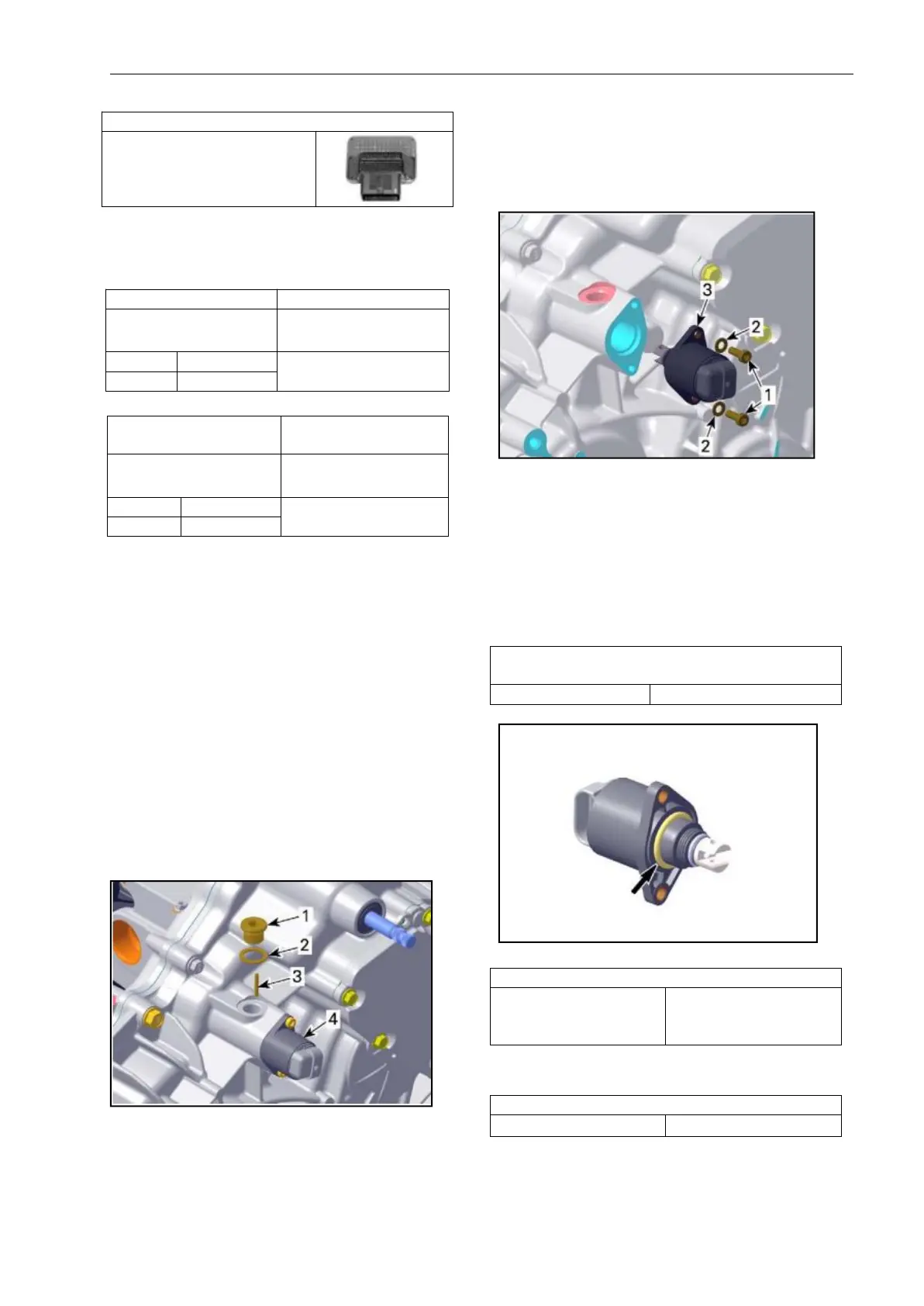

Removing the Differntial Locking
Acyuator
Remove:
-Plug screw
-Sealing ring (discard it )
-Pin
1. Plug screw
2. Seaing ring
3. Pin
4. Differential locking actuator
Remove:
-Retaining screws
-Washers
-Differential locking actuator.
1. Retaining screws
2. Washers
3. Dfferential locking actuator
Installing the Differential Locking
Actuator
Lubricate actuator O-ring
DIFFERENTIAL LOCKING ACYUATOR
O-RING
Service product
SUPER LUBE GREASE
Tighten retaining screws to specification
TIGHTENING TORQUE
Differential locking
actuator retaining
screws
3N.m±0.2N.m
Install a NEW sealing ring and tighten
plug screw to specification.
TIGHTENING TORQUE
Plug screws
30N.m±3N.m
ECM CONNECTOR
MEASUREMENT
PIN
RESSTANCE Ω
@20℃（68°F）
A-C2
A-C1
28-34Ω
A-B2
A-A4
ACTUATOR
CONNECTOR
MEASUREMENT
PIN
RESSTANCE Ω
@20℃（68°F）
A
C
28-34Ω
B
D
