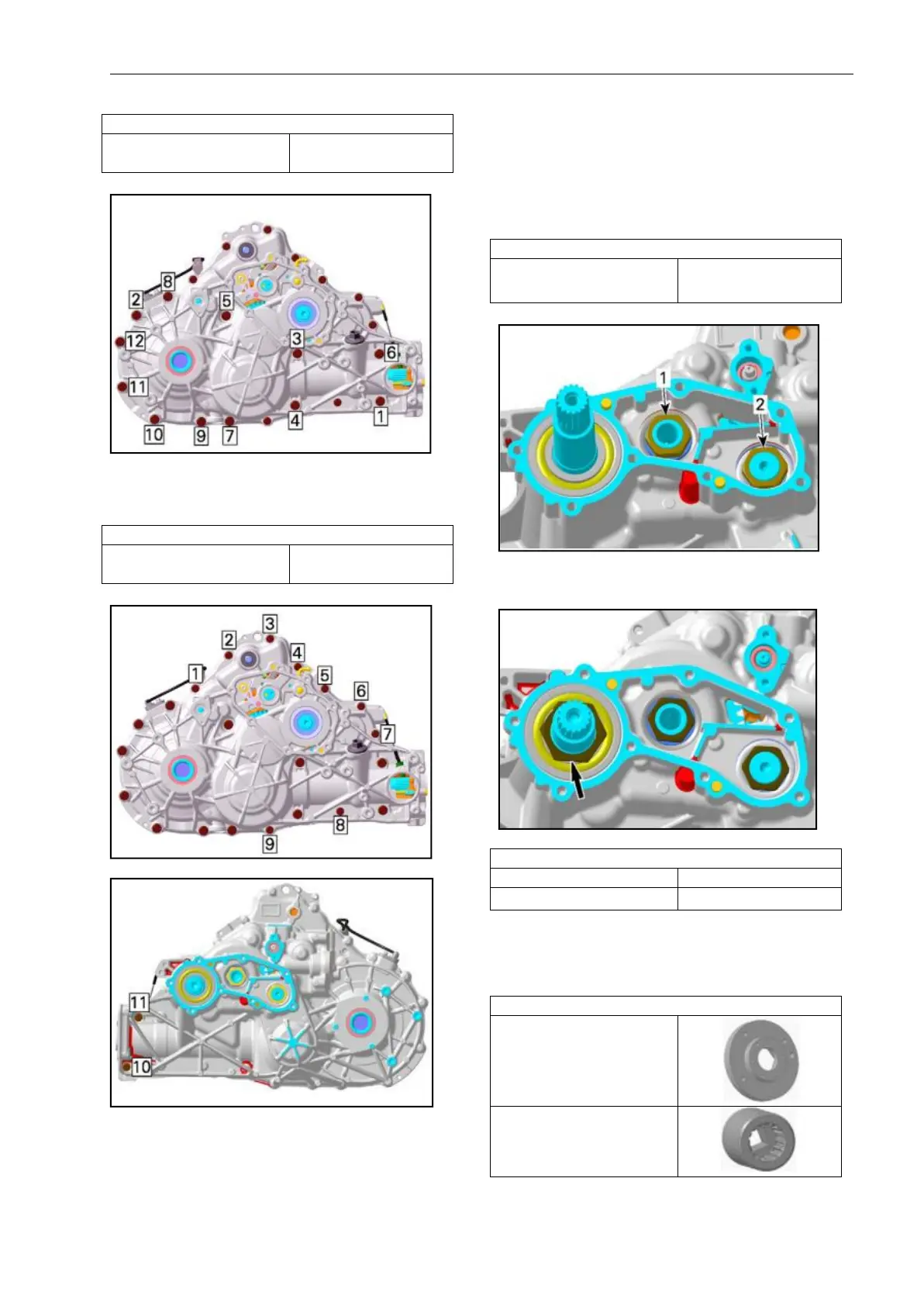

ODES WORKCROSS UTV650 - Page 206

8.ENGINE
8-105
TIGHTENING TORQUE
M8 gearbox housing
screws
25N.m±3N.m
Tighten M6 gearbox housing screws as
per fllowing sequence.
TIGHTENING TORQUE
M6 gearbox housing
screws
10N.m±1N.m
Refer to GEARBOX AND SHAIFT
MECHANISM in this subsection to
install:
-Index lever
-Index washer
-Parking lock gear
Set gearbox to PARK position.
Tighten main shaft and intermediate
shaft nuts to specification.
TIGHTENING TORQUE
main shaft and
intermediate shaft nuts
10N.m±1N.m
1. Main shaft nut
2. Intermediate shaft nut
Tighten countershaft nut to specification
TIGHTENING TORQUE
Service product
Countershaft nut
170N.m±10N.m
REQUIRE TOOL
M34 SOCKET
SPLINE SOCKET 1/2’’
