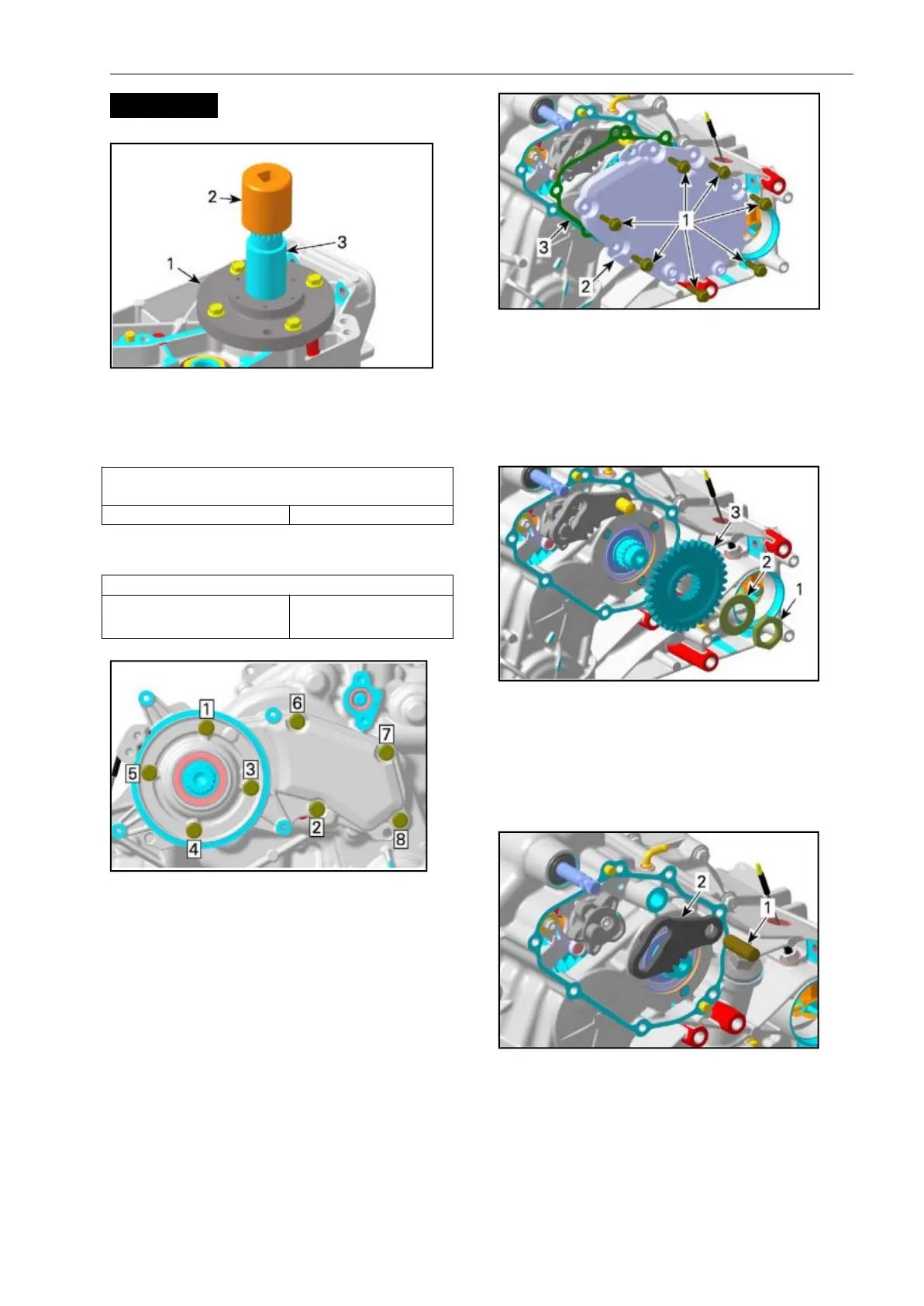

NOTICE Turn spline socket
counterclockwise to tighten the nut.
1. M34 socket
2. Spline socket
3. Countershaft
Apply sealant on mating surface of
bearing housing.
BEARING HOUSING MATING SURFACE
SEALANT
Service product
Install bearing housing screws and
tighten them as per following sequence.
TIGHTENING TORQUE
Bearing housing
screws
10N.m±1N.m
1. GEARBOX AND SHIFTING MECHANISM
Disassenbling the Gearbox and Shifting
Mechanism
NOTE:Durning gearbox and shafting
mechanism disassembly,inspect the
condition of each part closely.
Index Lever,Index Washaer and Parking
Locking Lever
Set gearbox to PARK position.
Remove:
-Reating screws
-Gearbox cover
-Gasket(discare it)
1. Retaining screws
2. Gearbox cover
3. Gasket
Remove:
-Nut
-Spring washer
-Park locking gear
1. Nut
2. Spring washer
3. Praking locking gear
Remove:
-Pin
-Parking locking lever.
2. Pin
3. Parking locking lever
Remove screw retaining the index
washer to the shaft drum,
