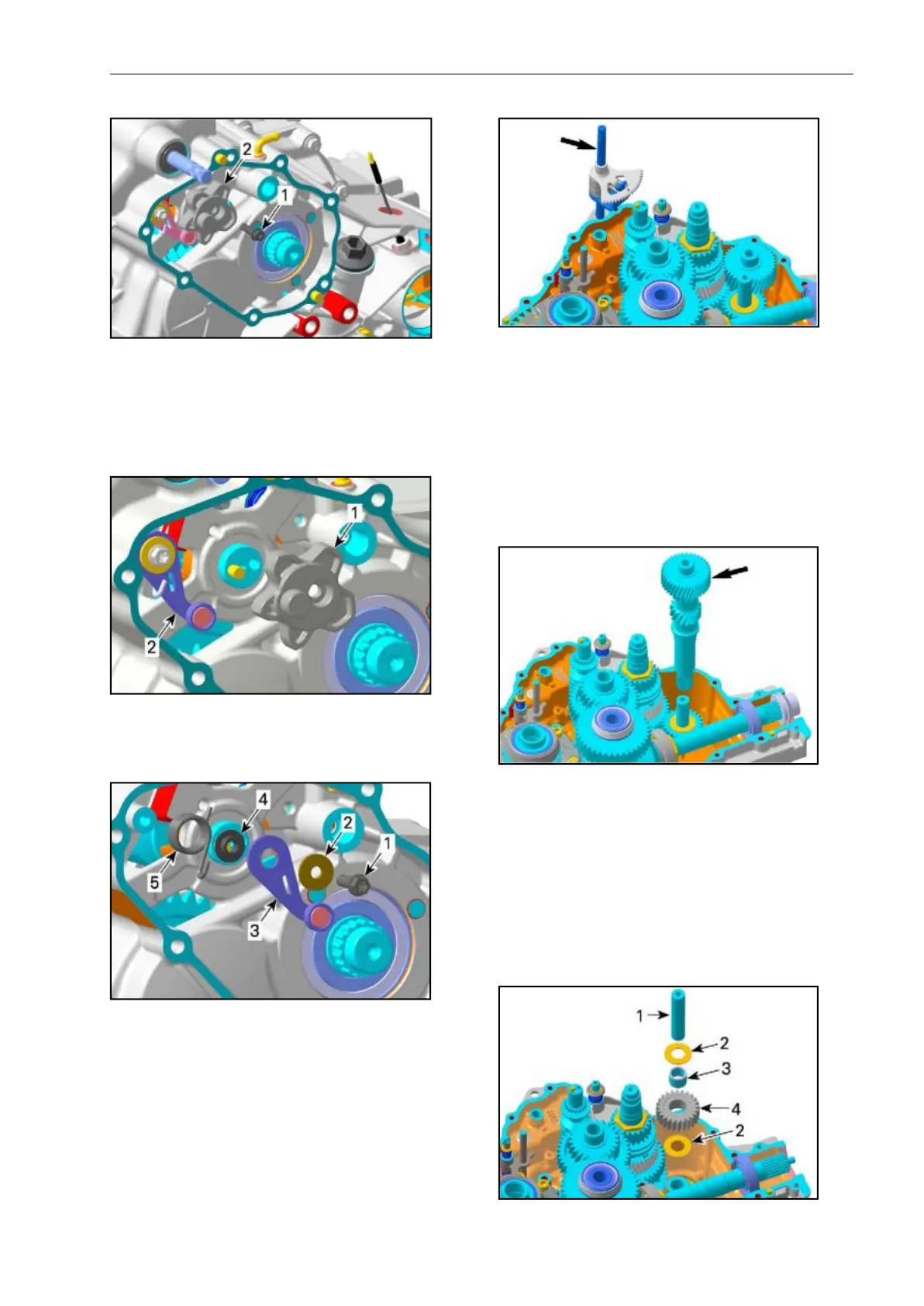

1. Screw
2. Index washer
Insert a flat screwdriver in the slot of
index lever.
Turn screwdriver clockwise and remove
index washer.
1. Index washer
2. Index lever
Remove the index lever with
washer,step ring and spring.
1. Screw
2. Washer
3. Index lever
4. Step ring
5. Index spring
Shift shaft Assembly
Separaate gearbox housing,refer to
GRARBOX HOUSING in this
subsection.
Withdraw shift shafe assembly.
Countershaft and Reverse Intermediate
Gear
Separate gearbox housing,refer to
GEARBOX HOUSING inthis
sunscetion.
Use a soft hammer to push out
countershaft from gearbox housing CVT
side.
Remove:
-Bearing pin
-Reverse intermediaye gear
-Needle bearing
-Thrust washer
NOTE:Take care not to lose lower thrust
washer durning remova.
1. Bearing pin
