8.ENGINE
8-114

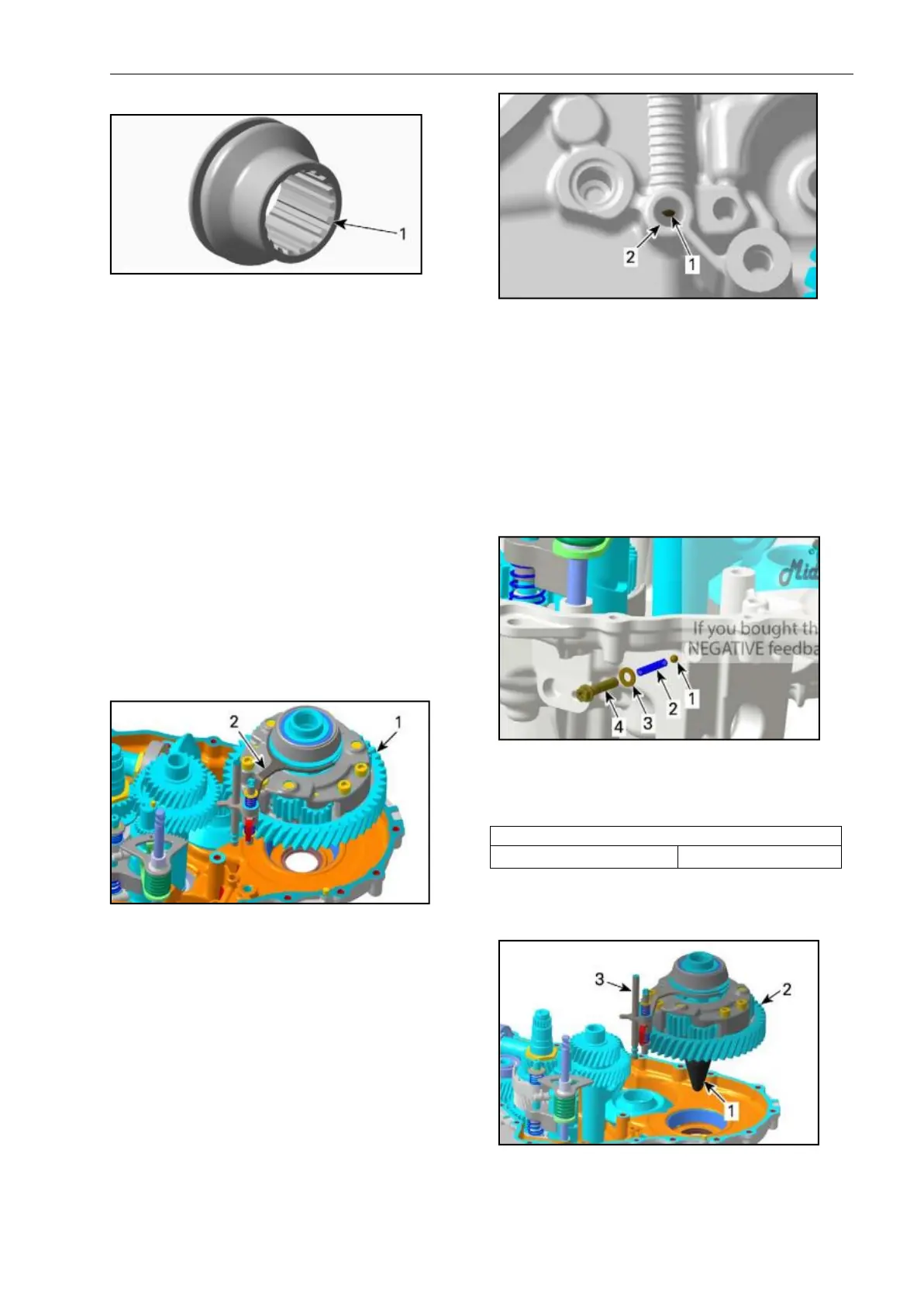

1. Inspect splines
Measure the coupling sleeeve groove
width.
REAR DIFFERENTIAL AND LOCKING
MECHANISM
Removing the Rear Different and
Locking Mechanism
Separte gearbox housing,refer to
GRARBOX HOUSING in this
subsection.
Remove rear differential together with
locking mechanism.
Take care not losing the distance shin
underneath tapered roller bearing.
1.Rear differential
2.Locking mechanism
Inspecting the Rear Differential and
Locking Mechanism
Check for ball of locking mechanism
setting in gearbox housing.
1.Ball
2.Bore of lockiong mechanism in gearbox housing
Installing the Rear Differential and
Locking Mechanism
Install:
-Ball
-Spring
-Sealing ring
-Screw.
1.Ball
2.Spring
3.Sealing ring
4.screw
TIGHTENING TORQUE
Screw
8N.m±1N.m
Install rear differential togetuer with
locking mechanism.
1.Sleeve installer
2.Rear differential
3.Locking mechani
