8.ENGINE
8-113

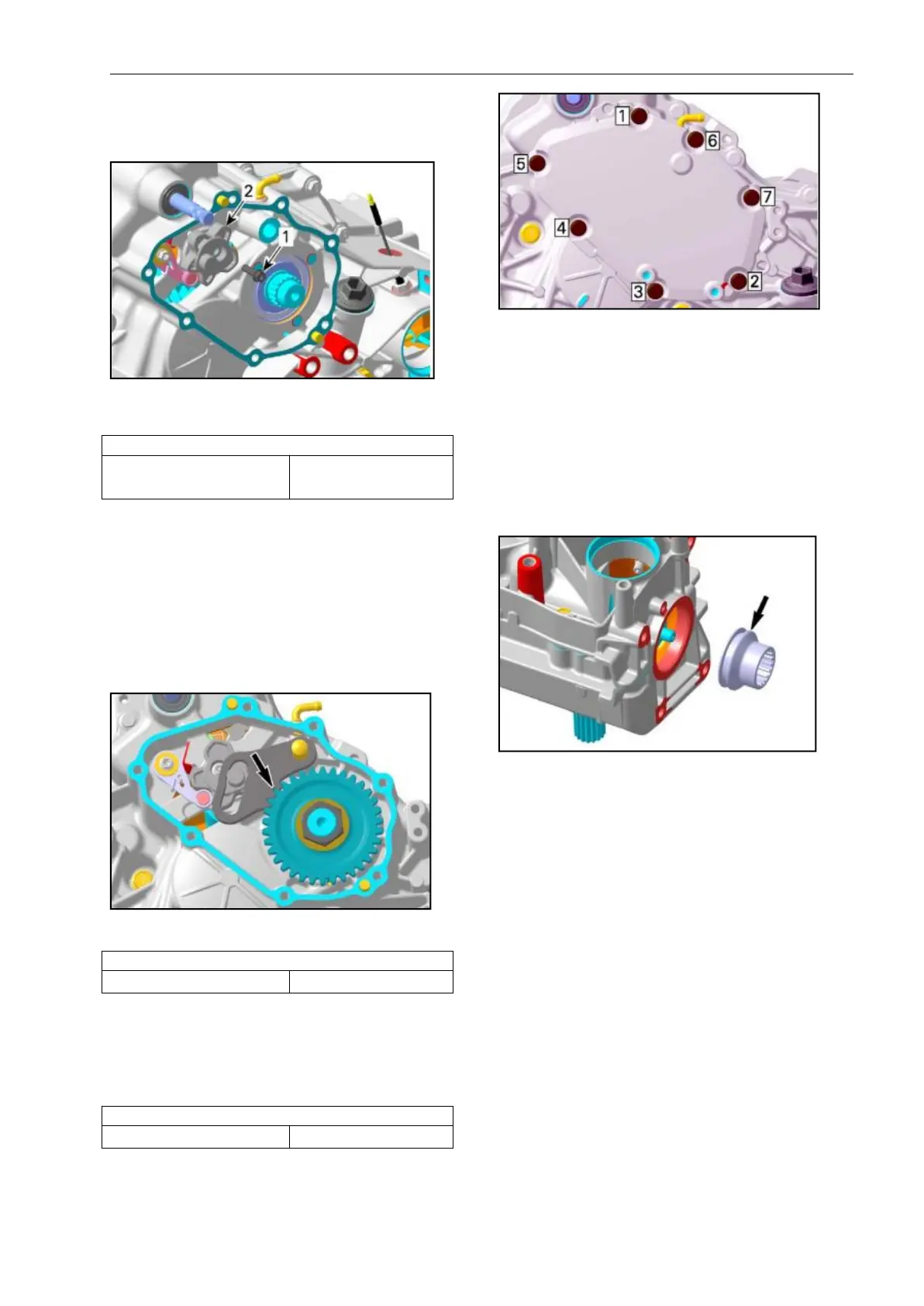

Install screw retaining the index washer
to the shift drum.
1.Screw
2.Index washer
TIGHTENING TORQUE
Index washer retaining
screw
10N.m±1N.m
Install:
-Parking locking gear
-Spring washer
-Nut
-Pin
-Park locking lever
Set gearbox to PARK position.
PARK LOCKING LEVER ENGAGED
Tighten nut to specification.
TIGHTENING TORQUE
Park locking gear nut
170N.m±10N.m
Install gearbox cover with New gastet.
Tighten gearbox cover screws as per
following sequence.
TIGHTENING TORQUE
Gearbox cover screws
10N.m±1N.m
OUTPUT SHAFT MECHANISM
Removing the Out put Shaft Mechanism
Drain gearbox oil.Refer to GEARBOX
OIL REPLACEMENT in PERIODIC
MAINTENANCE PROCEDURES
subcestion.
Remove:
Pull out 4
×
4 coupling sleeve.
Inspecting the Output Shaft and 4
×
4
Coupling Mechanism
Output Shaft
Check output shaft and its gear for
cracks,bend,pitting or other visible
damages.
Check output shaft splines for wear or
other damades.
Check if output shaft bearing turn freely
and smoothly.
Replace oil seal if brttle,hand or
damaged.
4×4 Coupling Sleeve
Check splines of coupling sleeve for
wear or other damages.
