8.ENGINE
8-112

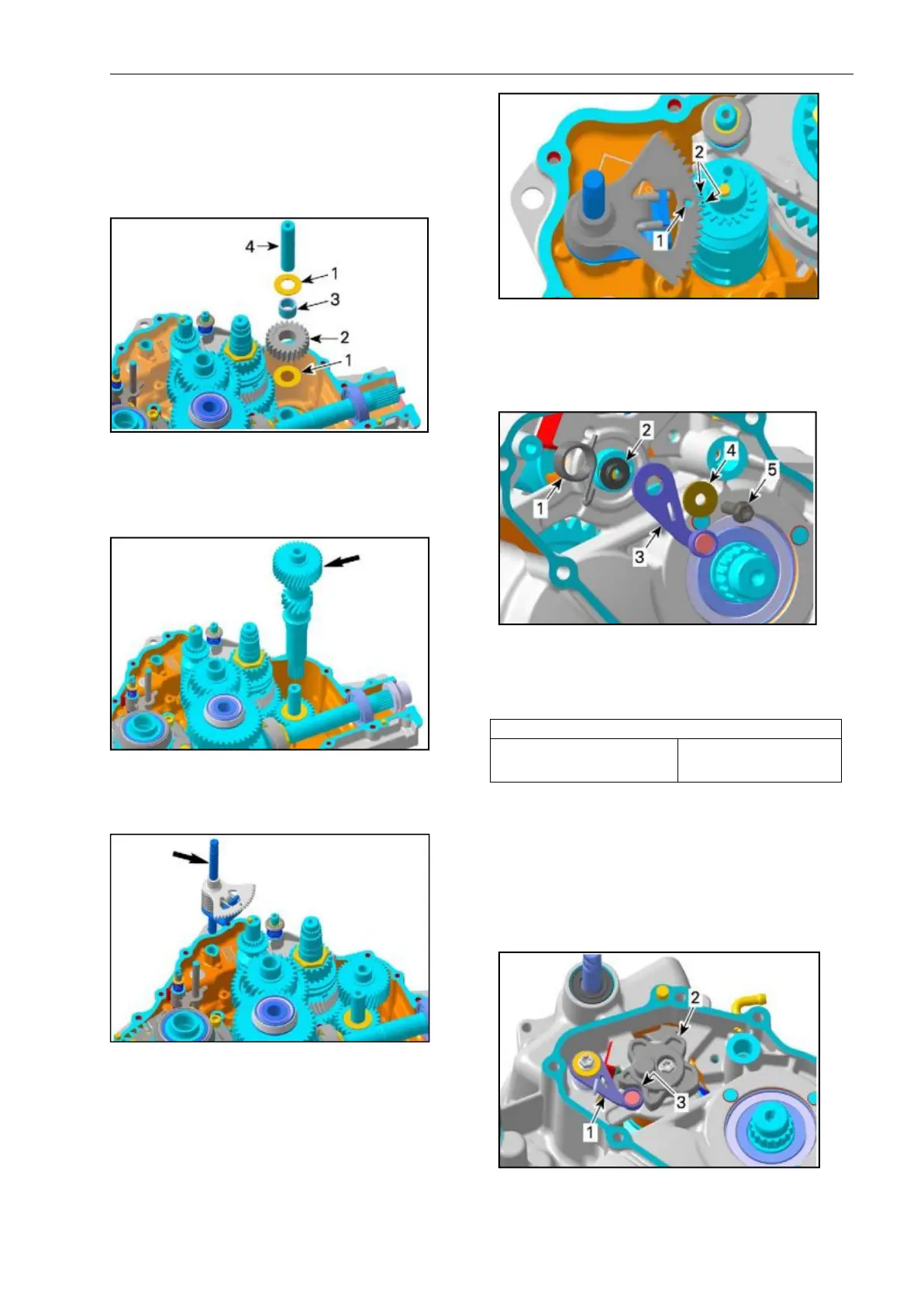

Intall:
-Reverse intermediate gear
-Needle nearing
-Thrust washer
-Bearing pin.
1.Thrust washers
2.Reverse intermediate gear
3.Needle bearing
4.Bearing pin]
Install countershaft from.
Shift Shaft Assembly
Install shaft shaft assembly.
Align mark on shift shaft with marks on
shift durm gear.
1.Mark on shift shaft
2.Marks on shift durm gear
Index Lever, Index Washer and Parking
lock Lever
Fit step ring into index lever
1.Index spring
2.Step ring
3.Index lever
4.Washer
5.Screw
TIGHTENING TORQUE
Index lever retaining
screw
10N.m±1N.m
Install index washer on shift durm.
Insert a flat scerwdrive in the slot of the
index lever.turn scerwdrive clockwise
and engage lever in index washer in
NEUTRAL position as per following
illustrating.
1.Index lever
2.Index washer
3.NEutral position
