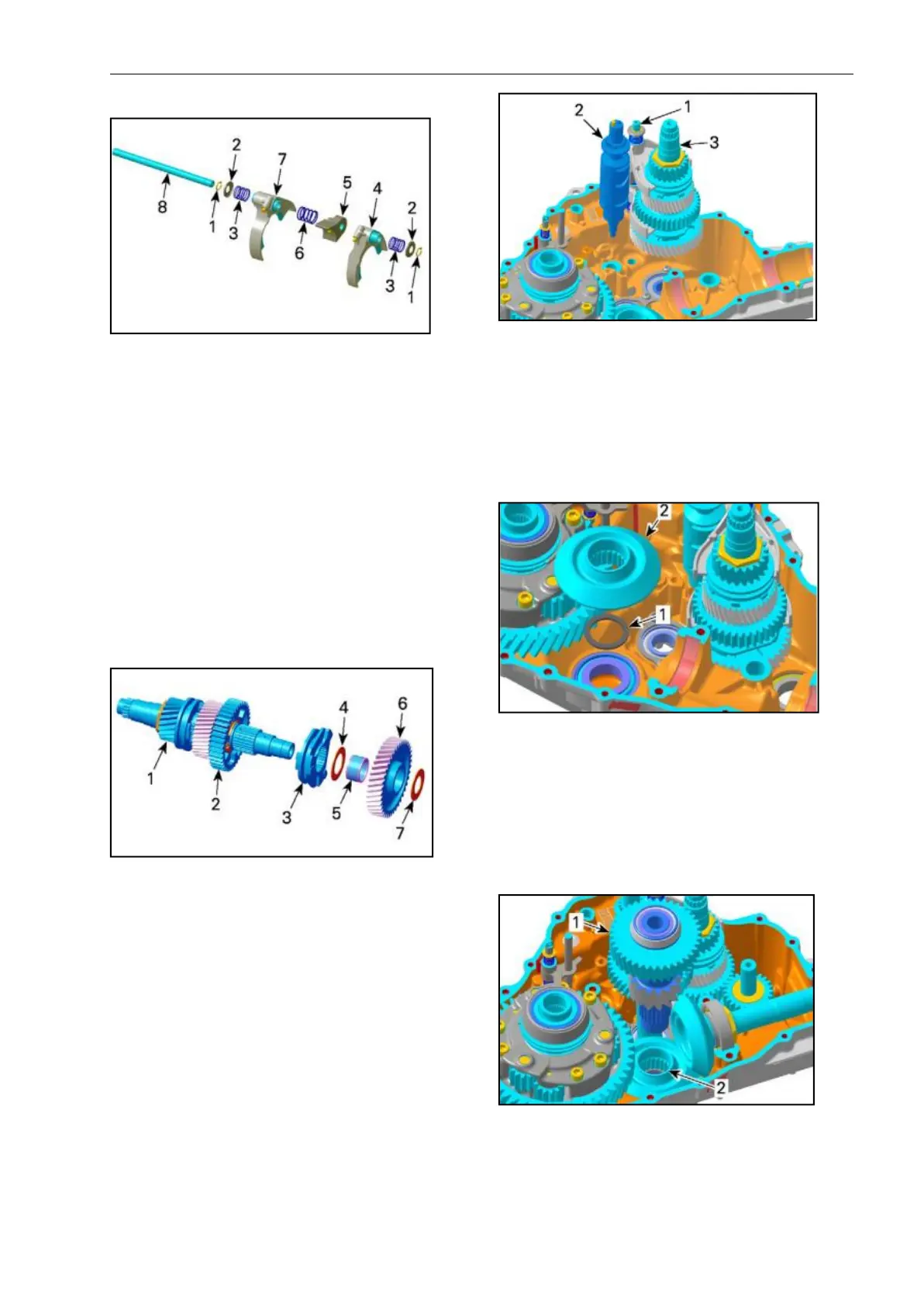

1.Snap rings
2.Spring seat
3.Outer springs
4.Shift fork HIGH
5.Shifting block
6.Center spring
7.Shift fork LOW/REVERSE
8.Shift fork shaft
Main Shaft,Shift Fork SHAFT Assembly
and Shift Durm
Install shaifting sleeve,thrust washer and
LOW gear pinion on main shaft
assembly.
NOTE:Check if shaifting sleeve
engrages connectly in reverse gear.
1.Main shaft assembly
2.Reverse gear
3.Shifting sleeve
4.Thrust washer
5.Needle bearing
6.LOW gear pinion
7.Thrust washer
Install shaift fork shaft assembly,shift
durm and main shaft assembly together
into gearbox housing.
1.Shift fork shaft assembly
2.Shift durm
3.Main shaft assembly
Pinion Drive Shaft and Intermediate
Shaft
Ensure distance shaim and bevel gear
are placed on the pinion drive shaft
bearing in geaibox housing.
1.Distance shim
2.Bevel gear
Install:
1.Intermediate shaft
2.Pinion drive shaft
Carefully fit pinion drive shaft into inner
solines of bevel gear.
1.Pinion drive shaft
2.Bevel gear solines
Countershaft and Revise Intermediate
Gear
