Inspection
Oil condition gives information about the
teeth condition inside the gearbox. See
TROUBLESHOOTING in the appropriate
GEARBOX AND 4X4 COUPLING UNIT
subsection.
Clean the magnetic drain plug from metal
shavings and dirt. Presence of debris gives
an indication of failure inside the gearbox.
Check gearbox "to correct the problem.
Replace O-ring of oil filler screw if brittle,
hard or otherwise damaged.

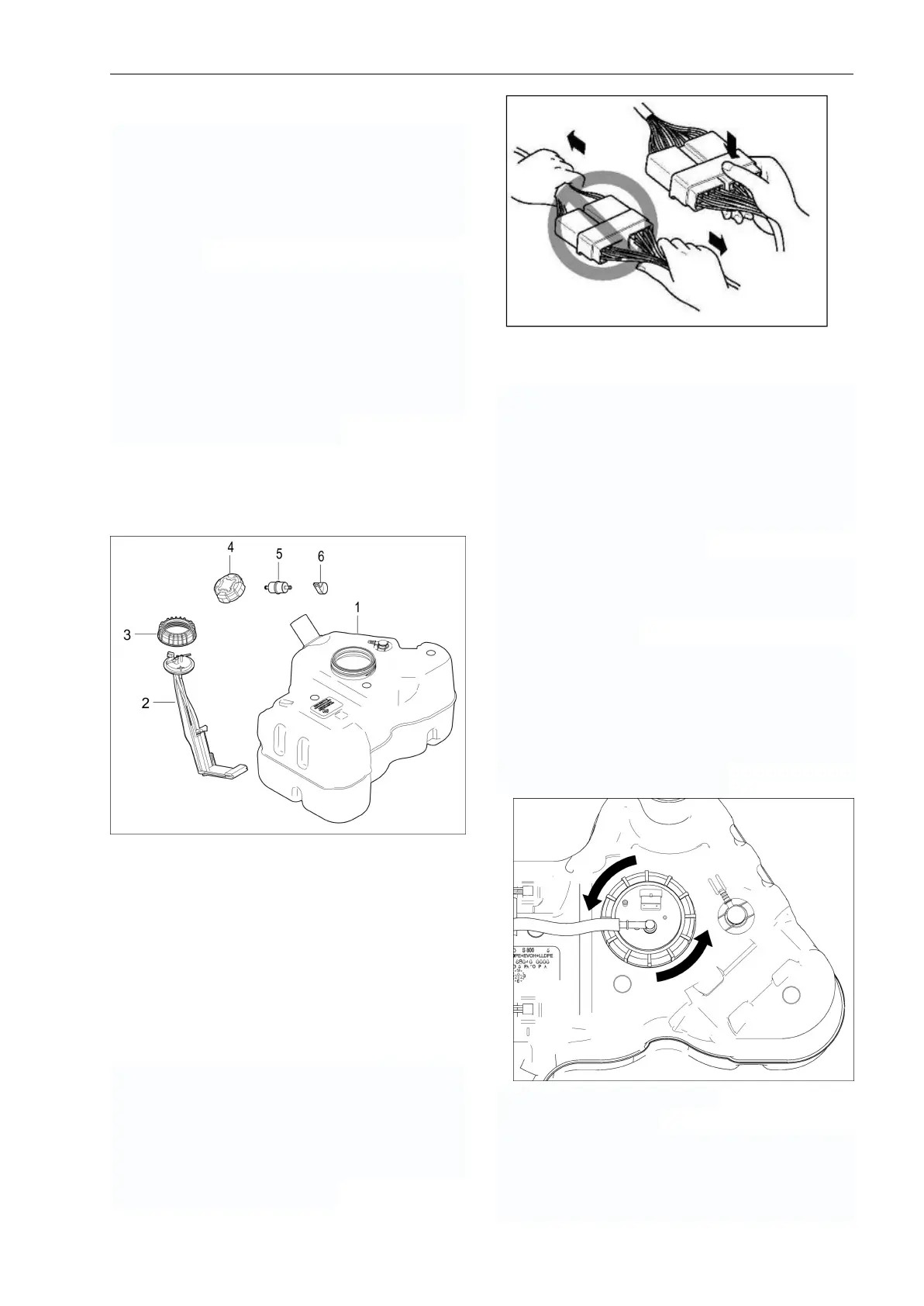

Fuel oil system
Structure
1. Fuel tank
2. Fuel
3. Fuel pump
4. Fuel tank cover
5. Fuel filter
6. Gasoline filter support
Dismantling
Fuel tank combination
Disconnect wire group plug-in of fuel
sensor, separating fuel sensor from wire
group. Note: Do not pull the plug directly
when you pull it out. Press the plug by hand
and pull it out at both ends.
Warning: special attention should be paid to
explosive gasoline
Unplug the tubing and tank vent after
releasing the hose clamp , and then rotate
the oil pump cap in the direction of the
arrow. After completing the above steps,
the oil pump can be removed from the tank
for repair or replacement.
Note: ear clamp should not be used
repeatedly; new clamp should be used
upon installation.
When pulling out fuel pipe, attention
should be paid to pressure inside fuel pipe,
splash proof measures should be taken and
vessel should be prepared to discharge fuel
inside fuel pipe in advance.
TYPICAL - FUEL PUMP REMOVAL
Fuel pump retaining nut
1. Carefully pull out and rotate fuel pump as
required. NOTICE Pay attention not to
damage fuel sender and fuel pump prefilter.
