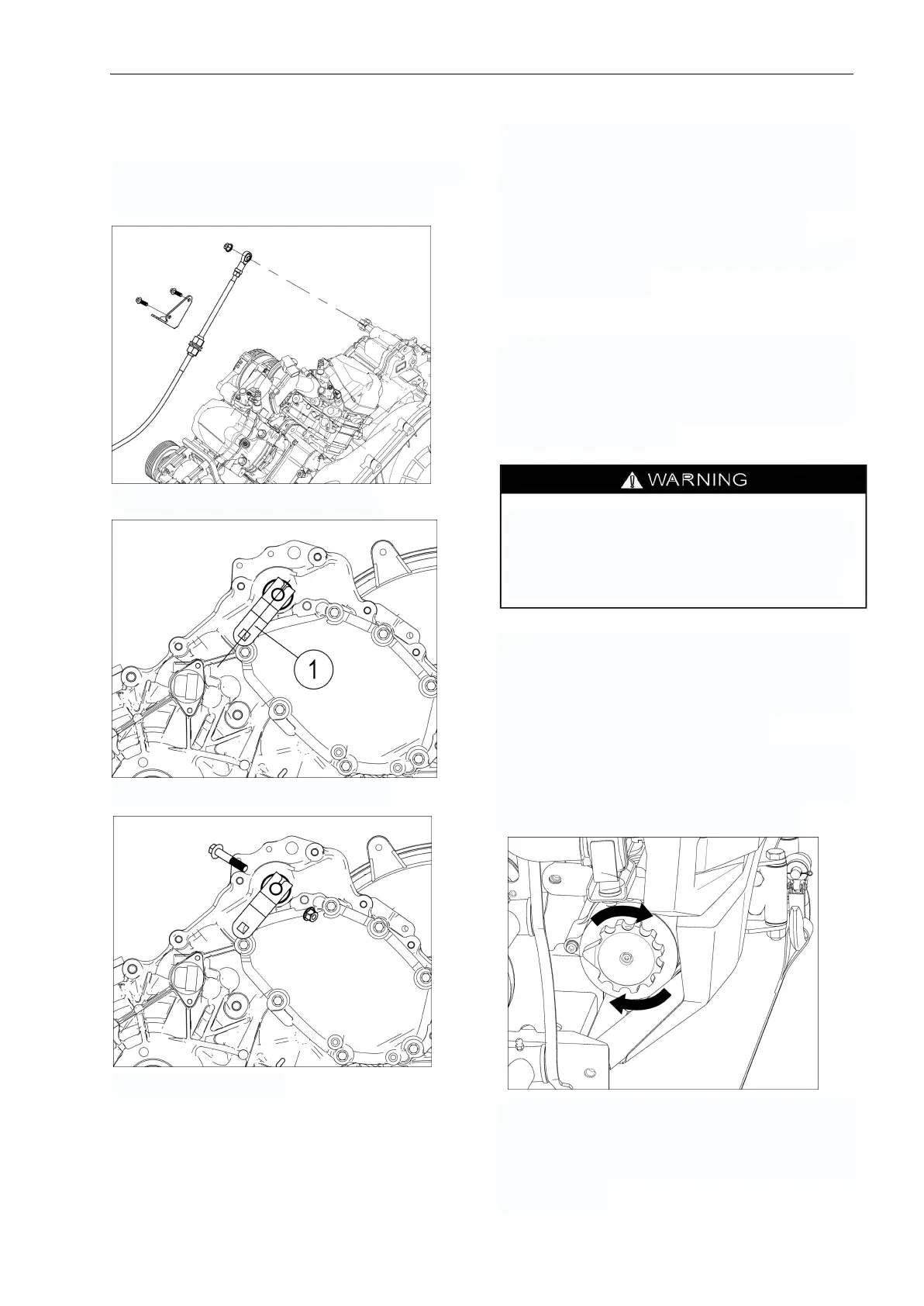

SHIFT PLATE
Shift Plate Removal
NOTE: Do not remove shift plate needlessly.
1. Remove shifter cable from shift plate.
2.Index shift plate and shift shaft.
3. Remove shift plate nut and bolt.
4. Remove shift plate.
Shift Plate Inspection
The installation is the reverse of the removal
procedure. However, pay attention to the
following. Place gearbox in NEUTRAL
position before shift plate installation.
Install and align shift plate using marks
previously tracked.
WINCH SAFETY
These safety warnings and instructions
apply if your vehicle came equipped with a
winch or if you choose to add an accessory
winch to your vehicle.
Improper winch use can result in SEVERE
INJURY or DEATH. Always follow all winch
instructions and warnings in this manual.
Your winch may have a cable made of either
wire rope or specially designed synthetic
rope. The term “winch cable” will be used
for either unless noted otherwise.
Rotate control handle of traction engine
clockwise , releasing lock-up status of cable.
Pull out cable for about 30cm along .
Remove the four fixing bolts at the bottom,
pull out the relevant connectors and cables,
and finally remove the hoist for routine
maintenance.
