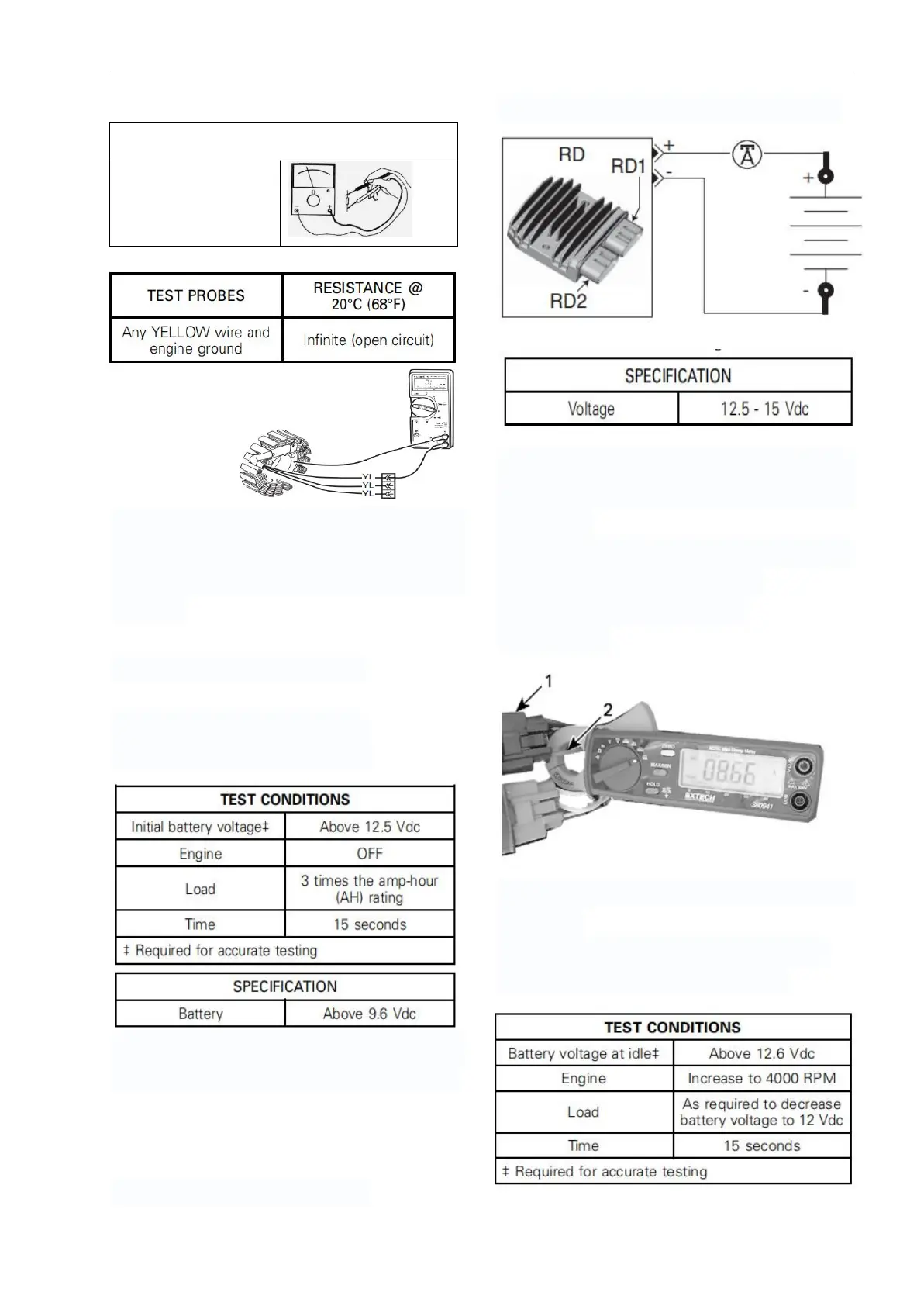

3. If there is a resistance or continuity, the
stator coils and/or the wiring is shorted to
ground and needs to be repaired or
replaced.
4. Re-plug connectors properly.
Check battery
1. Connect a battery load tester.
2. Ensure proper test conditions.
If battery voltage drops below specification
during test, replace battery and perform a
CHARGING SYSTEM LOAD TEST
1. Connect a battery load tester.
2. Start vehicle and read voltage on tester.
If voltage is above specification, replace
regulator and continue CHARGING SYSTEM
LOAD TEST.
3. Connect an ammeter around RD1-1 wire.
4. Ensure proper test conditions.
5.Read amperage on ammeter.
45±5A mps
DC CURRENT TEST WITH INDUCTIVE
AMMETER
a. Output connector of voltage regulator
b. Ammeter clamped over RED wire
