7
Publication No: US-ODY-TM-001 - April 2011
www.odysseybattery.com

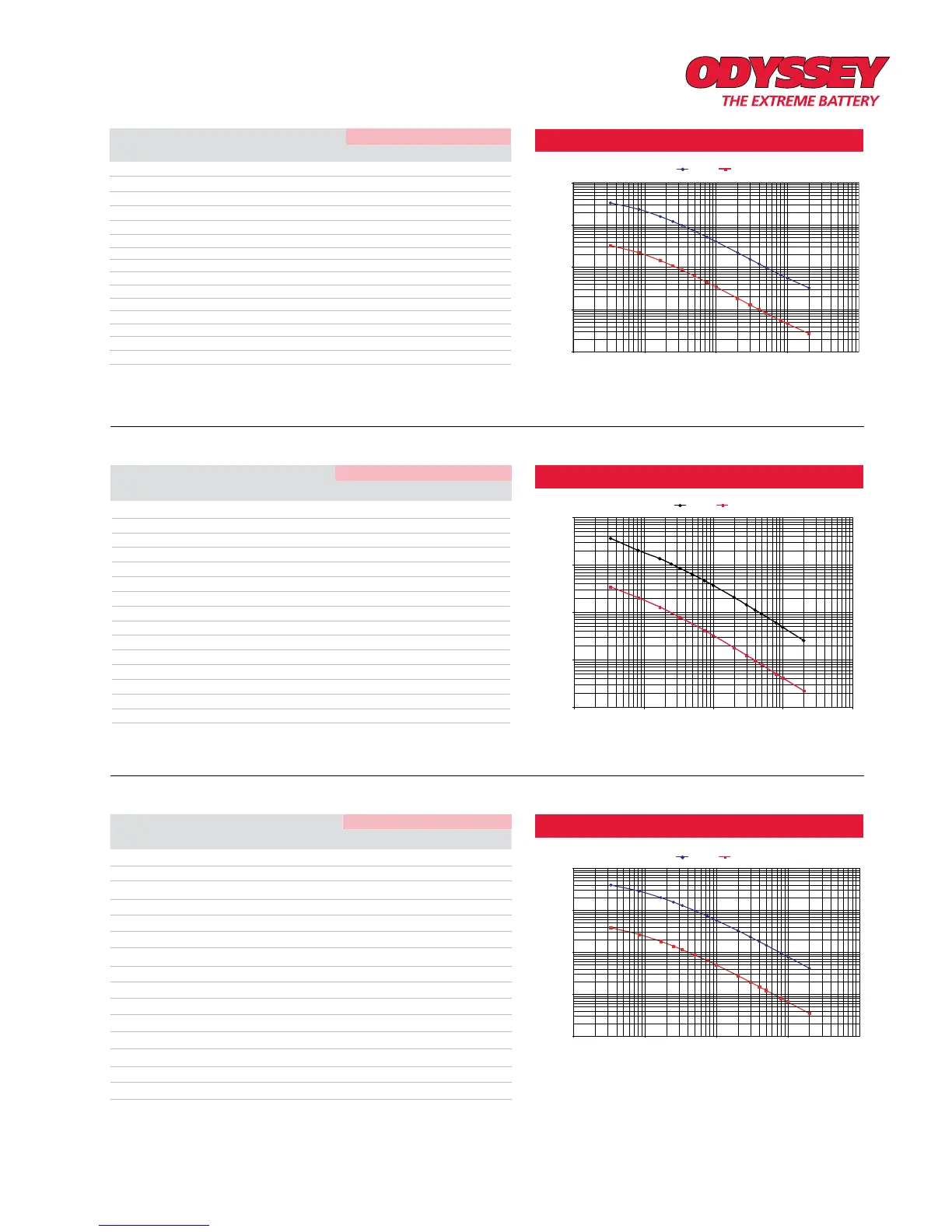

ER40 performance data at 25°C, per 12V module
Watts or amps per 12V unit
Hours to 10.02V @ 25˚C (77˚F)
0.01 0.1 1 10 100
1000
100
10
1
0.1
Watts
Amps
Time
Watts
(W)
Amps
(A)
Capacity
(Ah)
Energy
(Wh)
ENERGY AND POWER DENSITIES
W/litre Wh/litre W/kg Wh/kg
2 min 3307.2 326.8 10.9 110.2 668.1 22.3 264.6 8.8
5 min 2332.8 219.5 18.3 194.4 471.3 39.3 186.6 15.6
10 min 1575.0 143.2 23.9 262.5 318.2 53.0 126.0 21.0
15 min 1200.0 107.2 26.8 300.0 242.4 60.6 96.0 24.0
20 min 974.4 86.1 28.7 324.8 196.8 65.6 78.0 26.0
30 min 713.4 62.0 31.0 356.7 144.1 72.1 57.1 28.5
45 min 513.0 44.0 33.0 384.8 103.6 77.7 41.0 30.8
1 hr 402.6 34.3 34.3 402.6 81.3 81.3 32.2 32.2
2 hr 220.8 18.5 37.0 441.6 44.6 89.2 17.7 35.3
3 hr 154.2 12.9 38.7 462.6 31.2 93.5 12.3 37.0
4 hr 120.0 10.0 40.0 480.0 24.2 97.0 9.6 38.4
5 hr 99.0 8.2 41.0 495.0 20.0 100.0 7.9 39.6
8 hr 66.0 5.5 44.0 528.0 13.3 106.7 5.3 42.2
10 hr 55.2 4.6 46.0 552.0 11.2 111.5 4.4 44.2
20 hr 32.4 2.7 54.0 648.0 6.5 130.9 2.6 51.8
PC1200 performance data at 25°C, per 12V module
Watts or amps per 12V unit
Watts Amps
Hours to 10.02V @ 25˚C (77˚F)
0.01 0.1 1 10 100
10000
1000
100
10
1
2 min 3580 337.9 11.3 119.2 613.0 20.4 205.8 6.9
5 min 1992 199.1 16.6 165.9 341.1 28.4 114.5 9.5
10 min 1338 127.9 21.7 227.5 229.1 38.9 76.9 13.1
15 min 1026 96.0 24.0 256.5 175.7 43.9 59.0 14.7
20 min 840 77.5 25.6 277.2 143.8 47.5 48.3 15.9
30 min 624 56.6 28.3 312.0 106.8 53.4 35.9 17.9
45 min 458 40.8 30.6 343.4 78.4 58.8 26.3 19.7
1 hr 364 32.1 32.1 363.6 62.25 62.25 20.9 20.9
2 hr 203 17.7 35.4 406.8 34.8 69.7 11.7 23.4
3 hr 143 12.3 36.9 428.4 24.5 73.4 8.2 24.6
4 hr 110 9.5 38.0 441.6 18.9 75.6 6.3 25.4
5 hr 91 7.7 38.5 453.0 15.5 77.6 5.2 26.0
8 hr 59 5.0 40.0 475.2 10.2 81.4 3.4 27.3
10 hr 48 4.1 41.0 480.0 8.2 82.2 2.8 27.6
20 hr 25 2.2 44.0 504.0 4.3 86.3 1.5 29.0
Time Watts Amps Capacity Energy
(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg
ENERGY AND POWER DENSITIES
Time
Watts
(W)
Amps
(A)
Capacity
(Ah)
Energy
(Wh)
ENERGY AND POWER DENSITIES
W/litre Wh/litre W/kg Wh/kg
2 min 3982 384.3 12.8 132.7 396.6 13.2 192.4 6.4
5 min 2846 264.8 22.1 237.2 283.5 23.6 137.5 11.5
10 min 1993 180.8 30.1 332.1 198.5 33.1 96.3 16.0
15 min 1561 139.7 34.9 390.3 155.5 38.9 75.4 18.9
20 min 1294 114.8 38.3 431.4 128.9 43.0 62.5 20.8
30 min 976 85.5 42.8 487.9 97.2 48.6 47.1 23.6
45 min 722 62.6 46.9 541.2 71.9 53.9 34.9 26.1
1 hr 577 49.7 49.7 576.6 57.4 57.4 27.9 27.9
2 hr 326 27.7 55.4 652.1 32.5 64.9 15.8 31.5
3 hr 230 19.4 58.3 689.8 22.9 68.7 11.1 33.3
4 hr 179 15.0 60.1 714.0 17.8 71.1 8.6 34.5
5 hr 146 12.3 61.5 731.6 14.6 72.9 7.1 35.3
8 hr 96 8.0 64.2 766.2 9.5 76.3 4.6 37.0
10 hr 78 6.5 65.5 782.0 7.8 77.9 3.8 37.8
20 hr 42 3.5 69.9 832.1 4.1 82.9 2.0 40.2
Watts or amps per 12V unit
Hours to 10.02V @ 25ºC (77ºF)
Watts Amps
0.01 0.1 1 10 100
10000
1000
100
10
1
PC1220 performance data at 25°C, per 12V module
