10
36V BATTERY CONNECTION

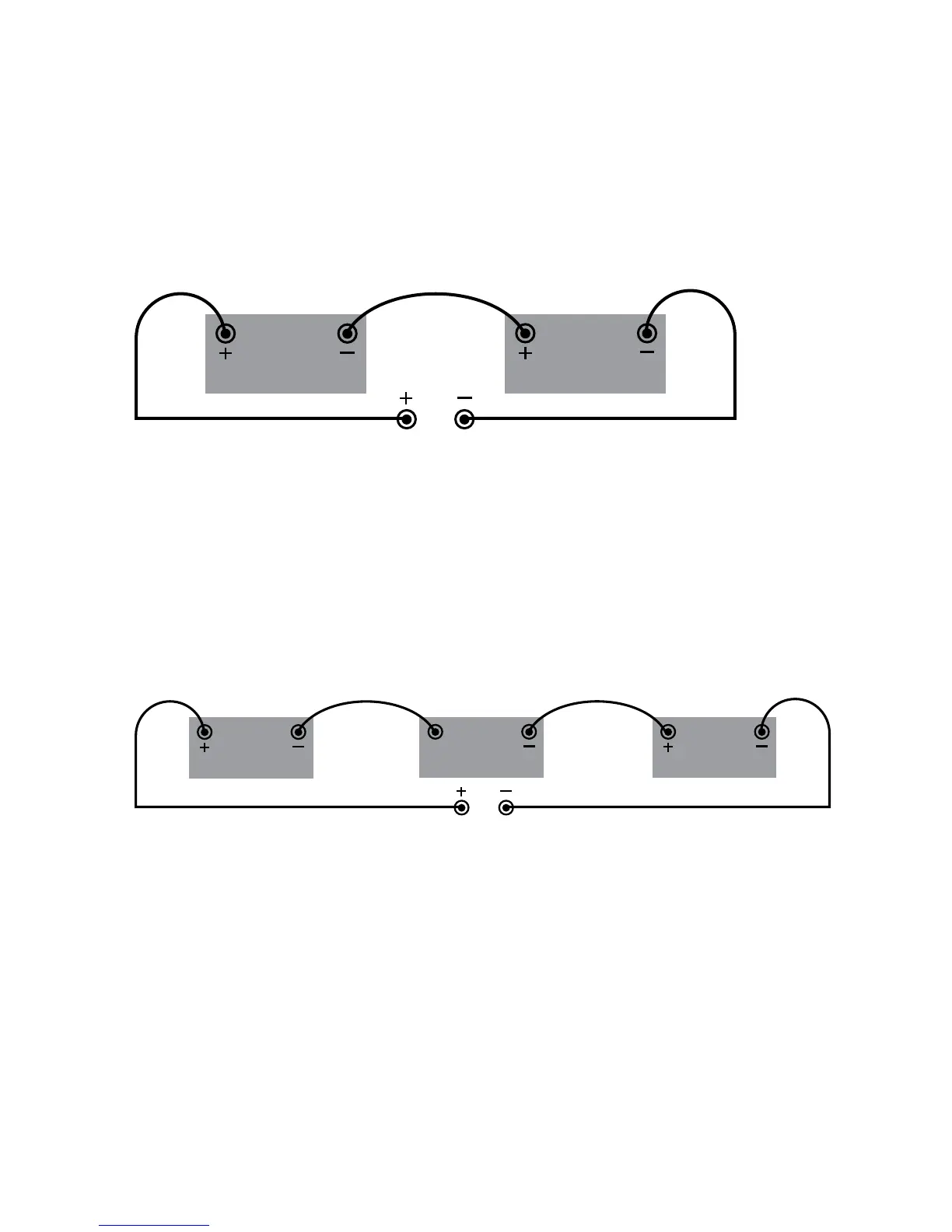

To power a 36V trolling motor, you will need to connect three ODYSSEY batteries in
series. As shown in the bottom illustration, the negative of Battery 1 is wired to the
positive of Battery 2; the negative of Battery 2 is then connected to the positive of
Battery 3. Finally, hook up the positive terminal of Battery 1 to the positive terminal
of your trolling motor and the negative terminal of Battery 3 to the negative terminal
of the trolling motor.
24V BATTERY CONNECTION
To power a 24V trolling motor, you will need to connect two ODYSSEY
®
batteries in
series. As shown in the top illustration, the negative of Battery 1 is wired to the positive
of Battery 2. Hook up the positive terminal of Battery 1 to the positive terminal of your
trolling motor and the negative terminal of Battery 2 to the negative terminal of the
trolling motor.
BATTERY 2 BATTERY 3
BATTERY 1
BATTERY 2
24V MOTOR
Publication No. 2602-0232, Rev AA - September 2016 www.odysseybattery.com
