Operating Instructions and Parts Manual 24492
20V MAX* LI-ION CORDLESS
ANGLE GRINDER
11/18
2018 OEMTOOLS
™
Figure Description Qty.
A
Outside Flange 1
B Grinding Wheel 1
C Rubber Ring 1
D Inner Flange 1
E 115 mm Wheel Guard 1
F Output Spindle 1
G Dust Proof Ring 1
H Screw 4
I Spring Washer 4
J Gear Cover 1
K Bearing 1
L C-Clip 1
M Big Gear 1
N Needle Bearing 1
O C-Clip 1
P Screw 4
Q Gear Housing 1
R Spindle Lock Spring 1
S Spindle Lock Button 1
T Needle Bearing 1
U Pinion 1
V O-Ring 1
W Bearing 1
X Bearing Clamp 1
Y Screw 1
Z Joint Shaft 1
AA Rubber Tray 1
BB Screw 2
CC Joint Tray 1
DD Fan 1
EE Air Deflector 1
FF Screw 2
GG Spring Washer 2
HH Motor Flange 1
II Motor 1
JJ Lock-Off Button Spring 1
KK Cotter Pin 1
LL Lock-Off Button 1
MM Switch Button 1
NN Switch 1
OO Magnetic Ring 1
PP Pole Plate 1
QQ Battery 1
RR Housing 1
SS Screw 6
TT Handle 1
UU Ring 1
VV Spanner Holder 1
WW Spanner 1
NOTE:
Not all components of the Cordless Angle Grinder are replacement
items, but are illustrated as a convenient reference for location and
position in the assembly sequence.

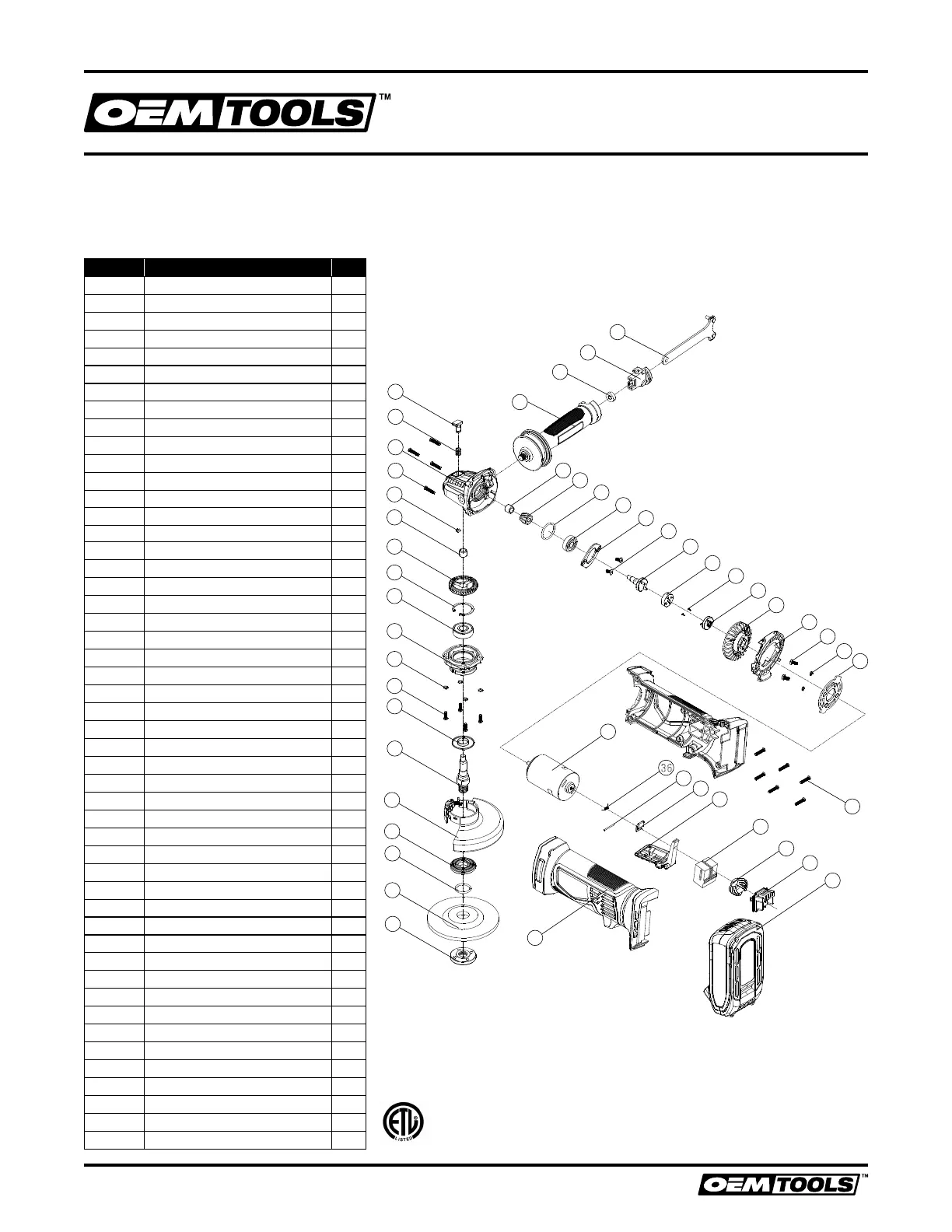

Parts Diagram
Don’t forget to register your new OEMTOOLS
®
product at www.oem-tools.com.
This symbol designates that this tool is listed with
U.S. requirements by ETL Testing Laboratories, Inc.
Conforms to UL Std. 60745-1 and 60745-2-2.
Intertek
3042597
