6
Operating Instructions and Parts Manual 24667
11/18
2018 OEMTOOLS
™
4V MAX* LITHIUM-ION
CORDLESS SCREWDRIVER
Item # Description Qty.
1 Stop 1
2 Steel Stop Rod 1
3 Retaining Ring 1
4 Collet 1
5 Sleeve 1
6 Gear Case 1
7 Pins 6
8 Nesting Ring 1
9 Gear Bushing 1
10 Planetary Gear Carrier 1
11 Planetary Gear 3
12 Planetary Drive Plate 1
13 Planetary Gear 3
14 Locking Plate 1
15 Motor Pinion Gear 1
16 Screw, M2.5 x 4.5 2
17 Motor Flange 1
18 Screw, ST2.5 x 8 3
19 Motor 1
20 Housing 1
21 Switch 1
22 PCB 1
23 Battery Pack 1
24 Self-Tapping Screw 6

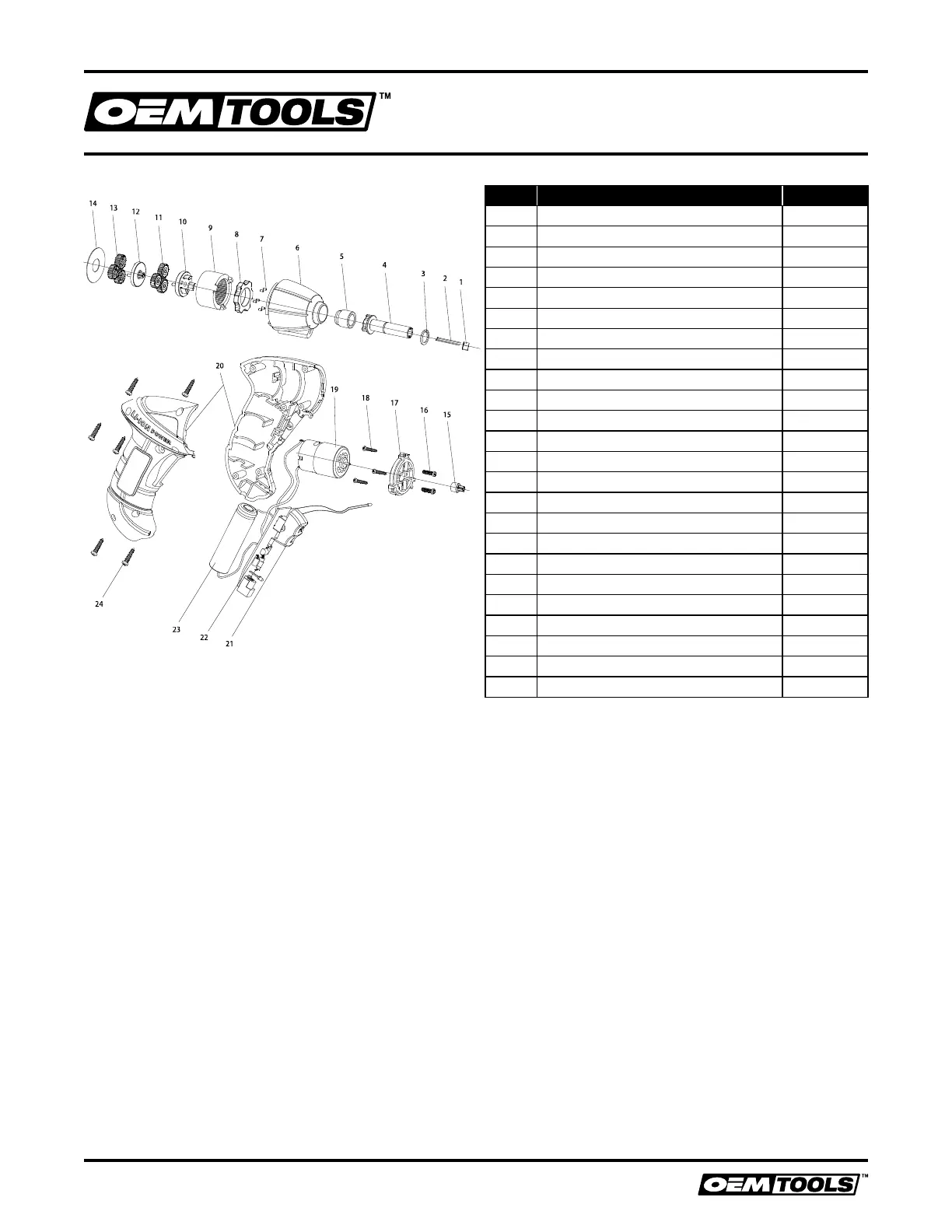

PARTS DIAGRAM
PARTS LIST
NOTE:
Not all components of the Cordless Screwdriver
are replacement items, but are illustrated as a convenient
reference for location and position in the assembly sequence.
