Instruction Manual
AC 02/2019-rev.1.1

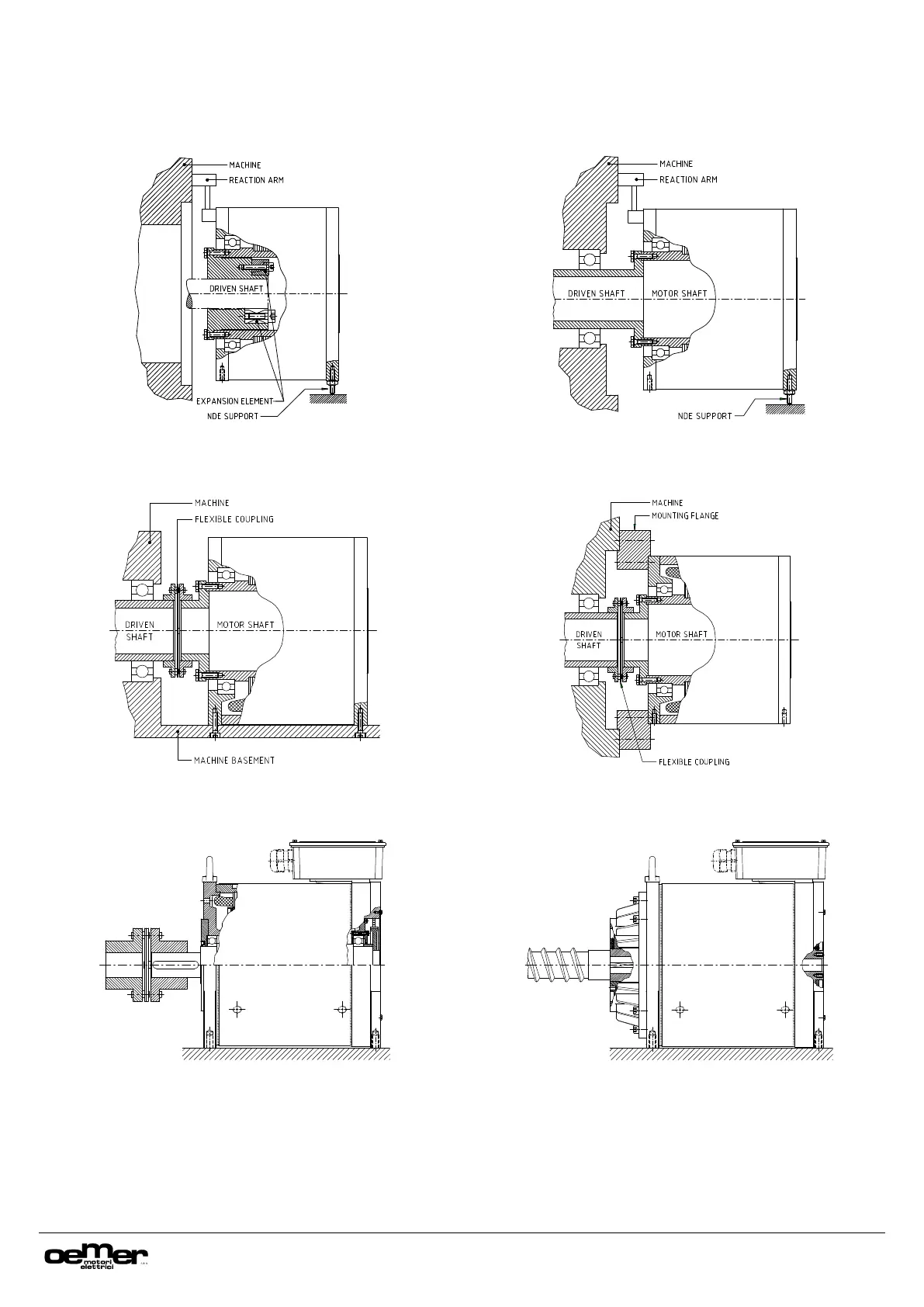

4.3.3 ESEMPI DI INSTALLAZIONE MOTORI
LTS – LTS-TB
4.3.3 INSTALLATION EXAMPLES LTS – LTS-
TB MOTORS
4.3.3 INSTALLATIONS BEISPIELE LTS – LTS-TB
MOTORE
EXPANSION ELEMENT + REACTION ARM
SCHRUMPFSCHEIBE + DREHMOMENTSTÜTZE
RIGID COUPLING + REACTION ARM
STARRE KUPPLUNG + DREHMOMENTSTÜTZE
FEET MOUNTING + FLEXIBLE COUPLING
FUSSMONTAGE + FLEXIBLE KUPPLUNG
FLANGE MOUNTING + FLEXIBLE COUPLING
FLANSCHMONTAGE + FLEXIBLE KUPPLUNG
FEET MOUNTING + FLEXIBLE COUPLING
FUSSMONTAGE + FLEXIBLE KUPPLUNG
FEET MOUNTING + THRUST BEARING
FUSSMONTAGE + DRUCKLAGER
