Operating Instructions and Parts Manual 24415
¼” DRIVE SUPER DUTY AIR
IMPACT RATCHET WRENCH
12/15
2015 OEMTOOLS
OEMTOOLS
®
ONE YEAR WARRANTY
If for up to one year from the date of purchase of this OEMTOOLS product you find any defect in material
or workmanship, through normal usage, return it to the place of purchase, or to OEMTOOLS for repair
or replacement at our discretion. In order to obtain this service send your tool and proof of purchase,
transportation pre-paid, to OEMTOOLS Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118. We will not
be responsible for lost or damaged goods during transportation, please insure your package. If our inspection
verifies the defect, we will either repair or replace the product at our election, or we may elect to refund
the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired
products at our expense, but if we determine there is no defect, or that the defect resulted from causes not
within the scope of our warranty, then you must bear the cost of returning the product.
OEMTOOLS does not provide warranty for products labeled other than OEM or OEMTOOLS. OEMTOOLS will
not provide any warranty for products subjected to abnormal use. Abnormal use includes, but is not limited to,
abuse, accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not
cover bits, blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or
replace blades, bits, files, and batteries as necessary. OEMTOOLS reserves the right to make any changes in
construction or design at any time without any obligation in incorporating such changes to tools or equipment
previously sold.
OEMTOOLS makes every effort to assure that its products meet high quality and durability standards, and
warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of one year from the date of purchase. This warranty does not apply to damage due directly or indirectly
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special
or consequential damages arising from the use of our product. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may
also have other rights, which vary from state to state.

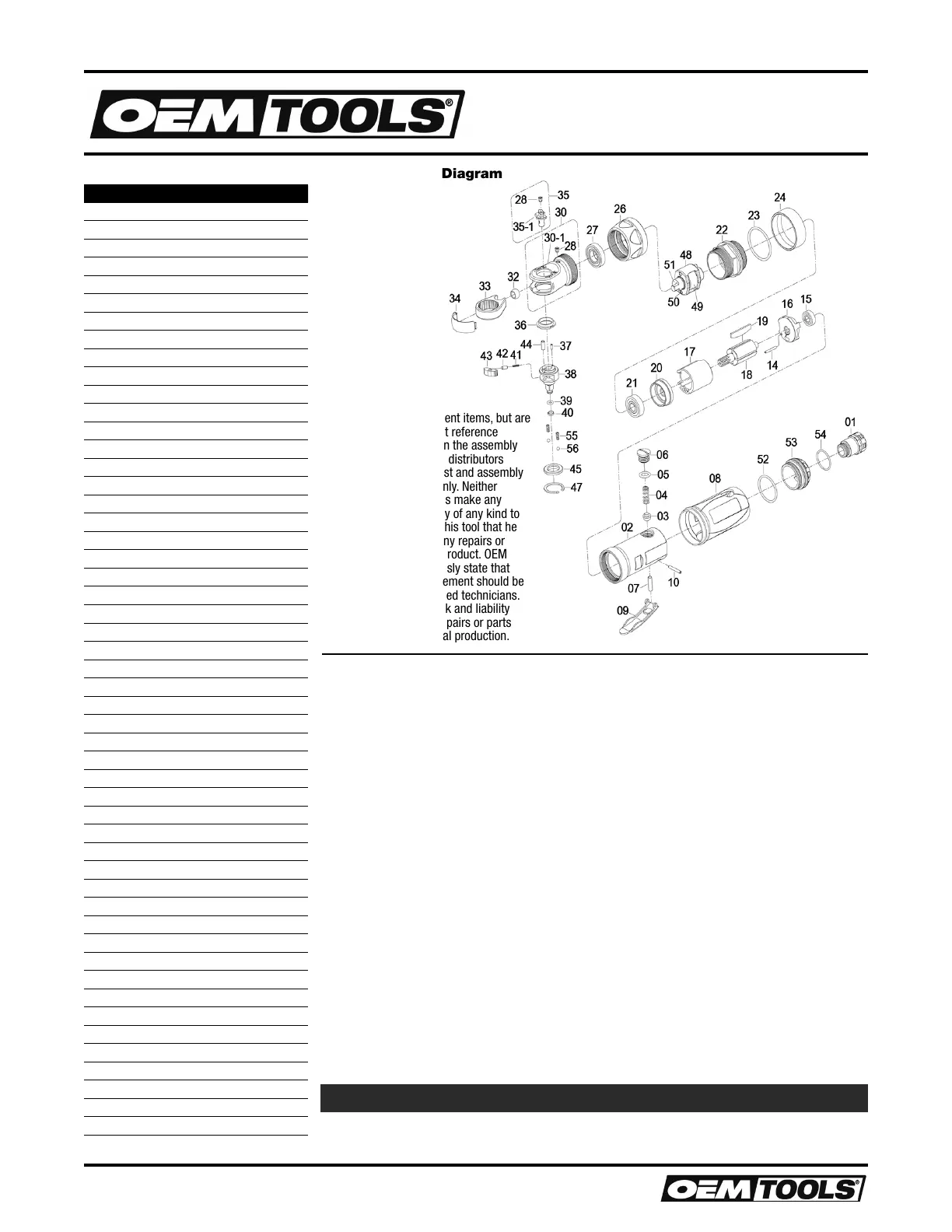

NOTE:
Not all components of the
Air Ratchet are replacement items, but are
illustrated as a convenient reference
for location and position in the assembly
sequence. OEM and/or its distributors
have provided the parts list and assembly
diagram as a reference only. Neither
OEM and/or its distributors make any
representation or warranty of any kind to
the buyer and/or user of this tool that he
or she is qualified to do any repairs or
replace any parts of this product. OEM
and its distributors expressly state that
all repairs or parts replacement should be
done by certified or licensed technicians.
The buyer assumes all risk and liability
arising out of his or her repairs or parts
replacement to the original production.
Item # Part Name Qty.
1 Air Inlet 1
2 Motor Housing 1
3 Throttle Valve 1
4 Spring 1
5 O-Ring 1
6 Valve Screw 1
7 Pin 1
8 Grip Ring 1
9 Trigger 1
10 Spring Pin 1
14 Spring Pin 1
15 Ball Bearing 1
16 Rear End Plate 1
17 Cylinder 1
18 Rotor 1
19 Rotor Blade 4
20 Front End Plate 1
21 Ball Bearing 1
22 Hammer Case 1
23 O-Ring 1
24 Rubber Ring 1
26 Coupling Nut 1
27 Ball Bearing 1
28 Grease Fitting 2
30 Ratchet Housing Assembly 1
30-1 Ratchet Housing 1
32 Drive Bushing 1
33 Ratchet Yoke 1
34 Ratchet Housing Cover 1
35 Reverse Knob Assembly 1
35-1 Reverse Knob 1
36 Thrust Washer 1
37 Spring Pin 1
38 Ratchet Anvil Assembly 1
39 O-Ring 1
40 Retainer 1
41 Spring 1
42 Pin 1
43 Ratchet Pawl 1
44 Pin 1
45 Thrust Washer 1
47 Retainer 1
48 Hammer Frame 1
49 Hammer 1
50 Hammer Pin 2
51 Standard Anvil 1
52 O-Ring 1
53 Exhaust Deflector 1
54 Retainer 1
55 Spring 2
56 Steel Ball 2
Parts List Parts Diagram
