Operating Instructions and Parts Manual 24503
MULTIPURPOSE DRILL
POWERED PUMP
PRODUCT SPECIFICATIONS
• Self Priming
• Delivery rate: without the inlet filter, delivery around
40-50 liters/min (550-650 gallons/hour.)With the filter
in use, delivery rate will be slightly reduced.
• Delivery pressure: Approximately (28psi) at ground
level.
• Maximum Inlet Head: up to 2 meters (6feet) vertically
above surface of liquid to be pumped.
• Maximum Pumping Head (Outlet): up to 15 meters
(50feet) vertically above pump, when pumping water.
(Note: These performance figures will vary according
to the type of fluid and operating speed of the drill).
• Requires minimum 350 Watt Drill Motor.
• Max RPM: 3000
OPERATING INSTRUCTIONS
1. Connect Drill Motor to Shaft.
2. Attach Inlet and Outlet Hoses.
3. For priming, on start-up, the pump should be as
close as possible to the liquid. When pumping, the
pump may be raised (but not more than 2 meters
above the surface of the liquid).
4. Make sure inlet hose is fixed or weighted so that it
remains in the liquid to be pumped.
5. Avoid severe bends or kinks in the inlet and supply
pipes.
MAINTENANCE
1. Always store the Drill Powered Pump in a well-
protected area where it will not be exposed to
inclement weather, corrosive vapors, abrasive
dust, or any other harmful elements.
2. If the nylon rotor blade tips become worn, they
may be reversed to expose the unworn surface.
3. After use, the pump should be cleaned by
pumping through water to which a little detergent
has been added, followed by clean water to rinse.
WARNING
03/14
2014 ©OEM-TOOLS
Always wear safety glasses
and gloves!

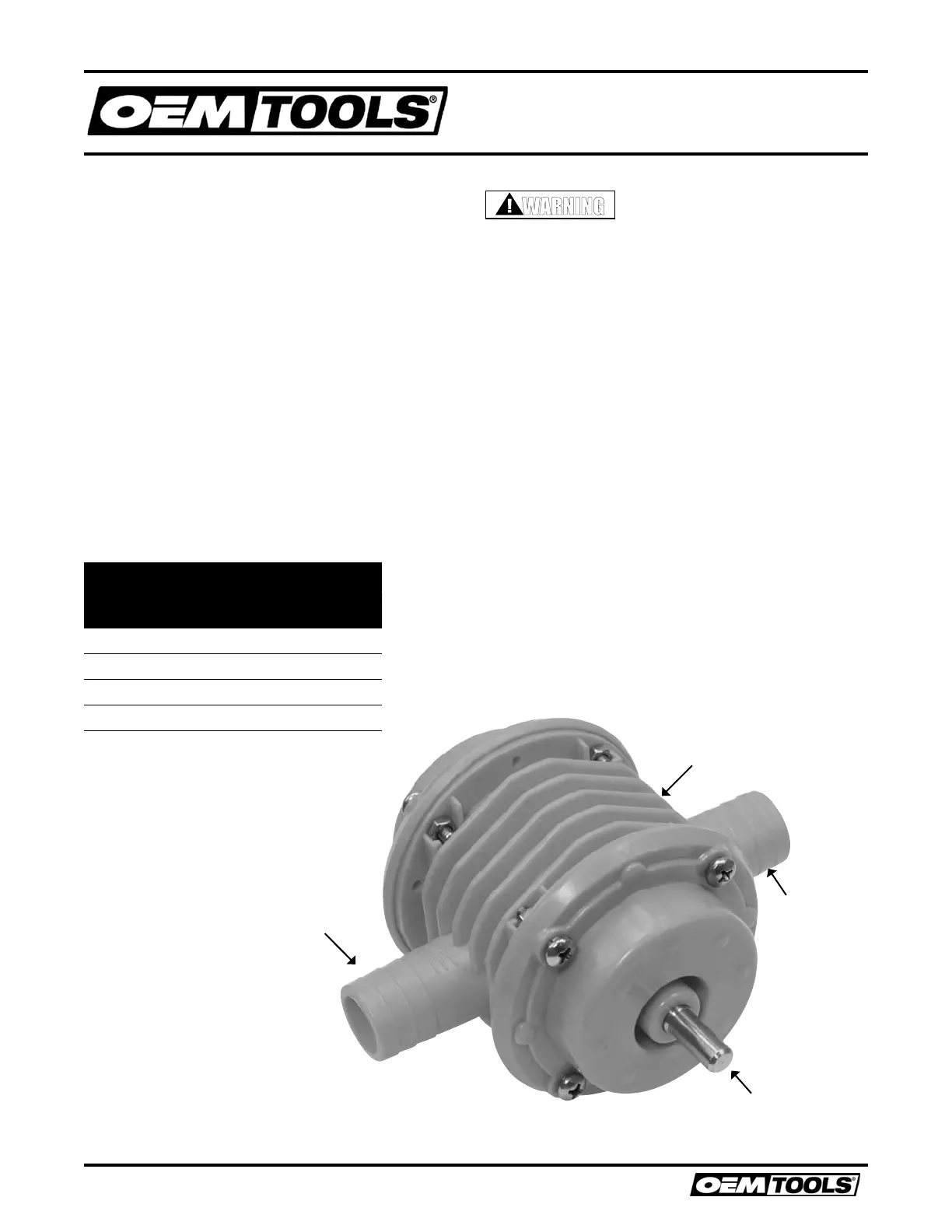

Figure Description Quantity
A Pump Housing 1
B Outlet 1
C Inlet 1
D Shaft 1
Lever Type Barrel Pump
(A)
Pump Housing
(B)
Outlet
(C)
Inlet
(D)
Shaft
