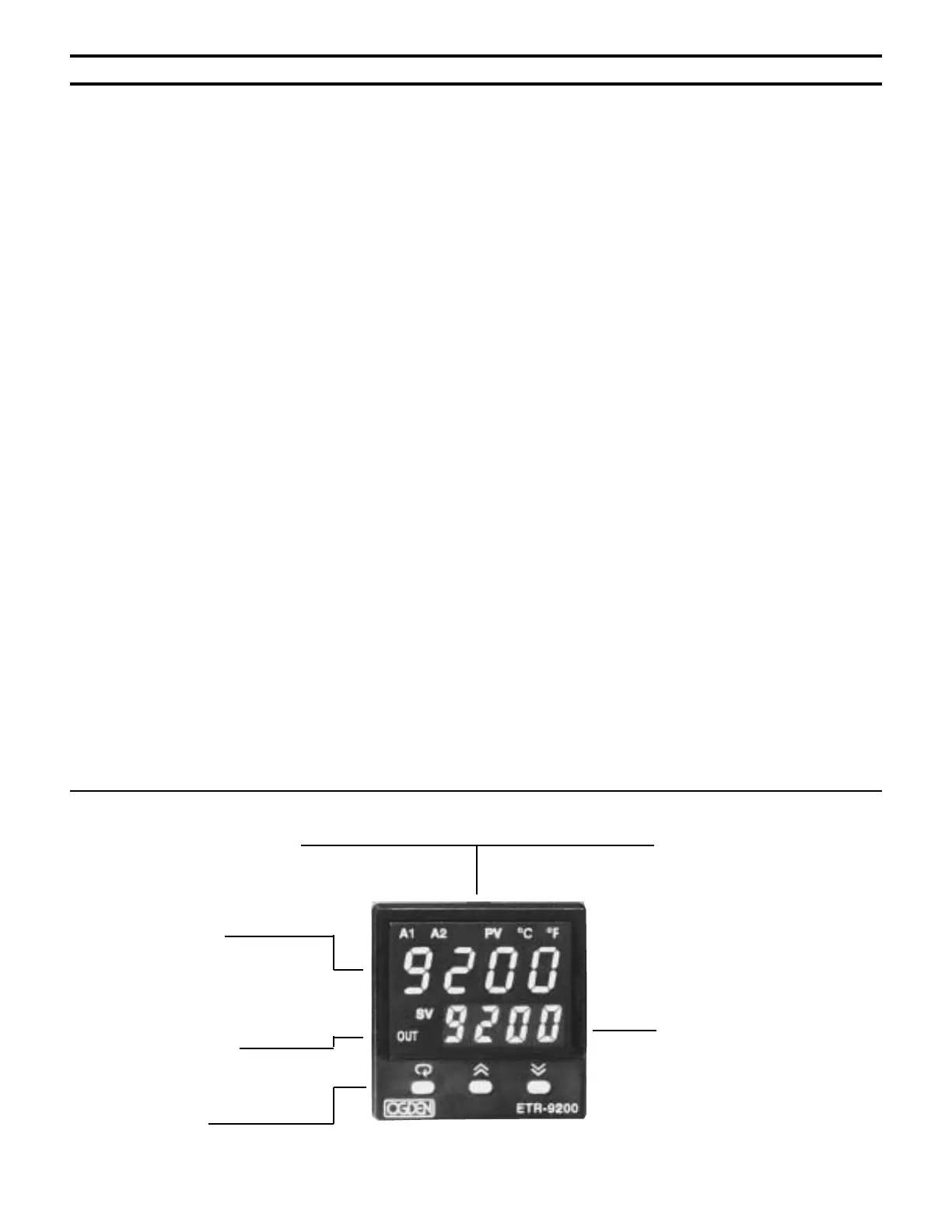

NON-VOLATILE MEMORY
Retains process parameters when power is off
EXTERNAL LOCKOUT CODE
• Prevents accidental or
unauthorized changes
PROCESS DISPLAY
• Process display updated 5
times per second
• Menu and error codes
STATUS INDICATORS
• Output and alarm condition
3 PUSHBUTTONS
• For ease of control set-up
AUTOMATIC TUNING
• Eliminates complicated and
time consuming manual
tuning procedures
• Smarter Logic practically
eliminates overshoot and
temperature variations
• Universal input
SET VALUE DISPLAY (SV)
• All control parameters and
set point displayed
• Output Percentage
* Calibration parameters
NEMA 4X/IP65 FRONT PANEL
• Water and corrosion resistant
Line Voltage: 90-264VAC, 50-60Hz,
20-32VAC/DC optional
Consumption: Less than 5VA.
Input: Thermocouple Type: J, K, T,
E, B, R, S, N
RTD 2 or 3 wire PT-100
DIN @ = .00385 or
JIS @ = .00392
0 – 10VDC, 0 - 20mA
Linear Voltage Input Impedance: 100k ohms
Cold Junction Compensation: .1C/C ambient typical
Sensor Break Protection: Operator selectable
External Resistance: 100 ohms max.
Sample Rate: 5 samples per second
Accuracy: ±.1%, ±least significant digit
Normal Mode Rejection: 60db
Common Mode Rejection: 120db
Operating Ambient for
Rated Accuracy: 14 - 120°F (-10 - 50°C)
Storage Temperature: -4 - 160°F (-20 - 70°C)
Humidity: 5 - 90% RH (non-condensing)
Insulation: 20M ohms min. (500VDC)
Breakdown: 2000V (AC), 50/60Hz,
1 minute
Shock: 200m/s
2
(20g)
Weight: 4 oz. (110 grams)
EMC Emission: EN50081-1, EN61326,
(EN55011 class B, EN61000-
3-2, EN61000-3-3)
EMC Immunity: EN50082-2, EN61326
(EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5,
EN61000-4-6, EN61000-4-11)
Section 3: SPECIFICATIONS
Dimensions: Front Panel H - 1
7
⁄8” (48mm)
W - 1
7
⁄8”(48mm)
D - 3
3
⁄8” (86mm)
Depth Behind Panel:
2
7
⁄8” (73mm)
Panel Cutout: 1
25
⁄32” x 1
25
⁄32” (45 x 45mm)
Proportional Band: 0 - 360°F (0 - 200°C)
Integral (Reset): 0 - 3600 seconds
Derivative (Rate): 0 - 1000 seconds
Ramp Rate: 0- 99.99°F (0 - 55.55°C)
/minute
Dwell: 0 - 9999 minutes
On-Off: Adjustable hysteresis
Proportional Cycle Time: 0 - 99 seconds
°F/°C: External keypad selectable
Linearization: Software driven
Outputs: Heating (and cooling) or
alarms
Output Modules:
–Current Output: 4-20mA isolated, max. load
500 ohms
–Voltage Output: 0 - 10V isolated, minimum
impedance 500K ohms
–Pulsed Voltage: 24VDC, unisolated Max.
current 20mA
–Relay: 3A/240V, resistive load for
heating, 2A/240V, resistive
load for alarm
Control Actions: Heating (relay closed on
temperature rise) or cooling
(relay open on temperature
rise) front panel selectable
