OHIOSTEEL 4222V2 - Assembly Instructions; Prepare Hopper Bag and Attach Bar; Install Bottom Frame Assembly; Insert Top Frame Tubes

37
41
M
46
49
37
41
40
40
DETAIL D
SCALE 1 : 4
Snap Button
DOWN
51
Snap Button
UP
Frame into Hopper
39
39
DETAIL M
SCALE 1 : 6
46
49

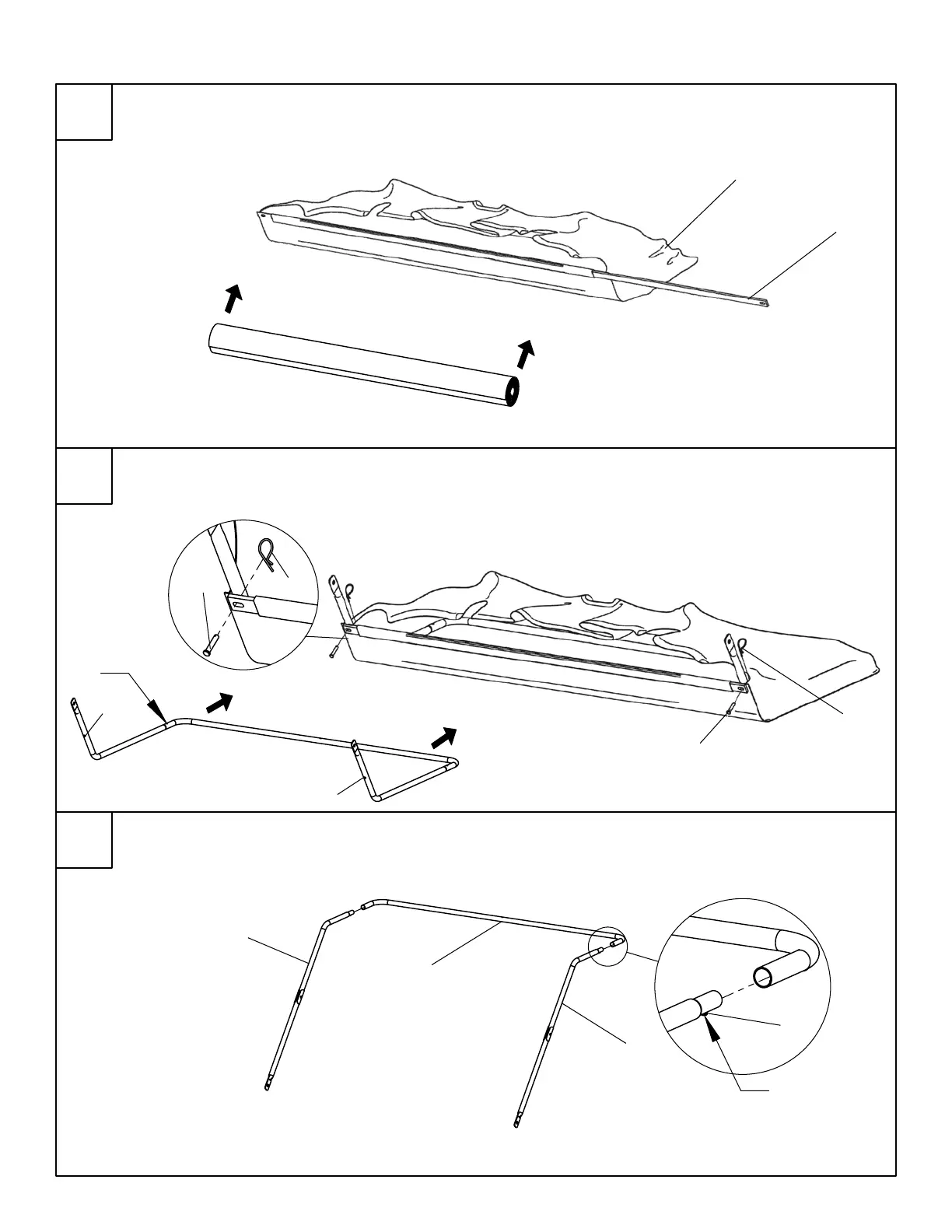

Unroll and flatten hopper bag (38) from shipping state. Then, slide Hopper Stop Bar (42) into
pocket of Hopper Bag as shown.
Insert Top Frame Tubes (40) into Center Frame Tube (41) and snap into position.
(Note that snap buttons (51) are oriented down)
Unroll Hopper Bag
38
44
First, place bottom frame assembly into bottom of Hopper Bag (38). Second, Install Clevis
Pins (46) through Hopper Bag (38), Hopper Stop Bar (42), and Bottom Frame Tubes (39)
then secure with Hairpins(49).
6
