OHM CRED Mark 2 2-4 - Output Equalisation; Output Limiters

Parametric Equalisation
Eight sections of equalisation are provided in a similar format to the input channel equalisation; two
shelving filters and six parametric.
ABC
A
B
C
Gain
0.0dB
12dB
Slope
Freq
100Hz
EQ>-
Out1
!
!
!

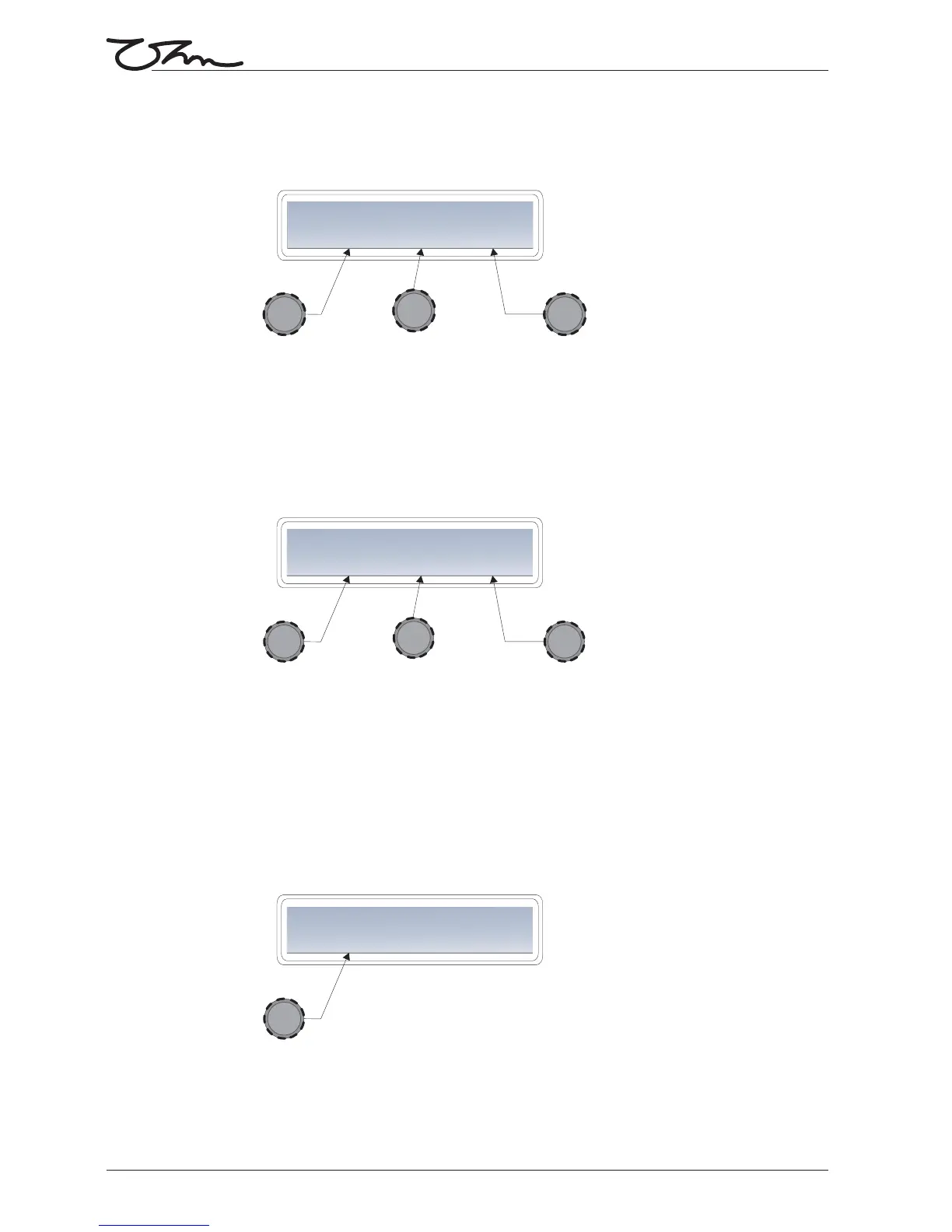

Knob A: Frequency, 10.0Hz to 25.6kHz in variable steps
Knob B: Slope, 6 to 12dB / octave in 1dB steps
Knob C: Gain, +/-15dB in 0.2dB steps
The frequency is specified as point where the filter deviates by 3dB from the gain value.
ABC
A
Thresh
4.0dB
LIM
Out1
!
!
!
Knob A: Centre Frequency, 10.0Hz to 25.6kHz in variable steps
Knob B: Width, display selectable, Q or BW (Bandwidth)
BW adjustable from 0.05 to 5 octaves in variable steps
Q adjustable from 14.2 to 0.2 in variable steps
Knob C: Gain, +/-15dB in 0.2dB steps
Limiters
ABC
A
B
C
Gain
0.0dB
1.4q
Slope
Freq
100HzEQ1
Out1
! Knob A: Threshold, -40Bu to 20Bu in 0.2dB steps
A high performance, low distortion limiter is provided on each output. Threshold is user adjustable;
all other parameters are carefully calculated dependant on configuration to provide clean and
effective control of signal dynamics.
