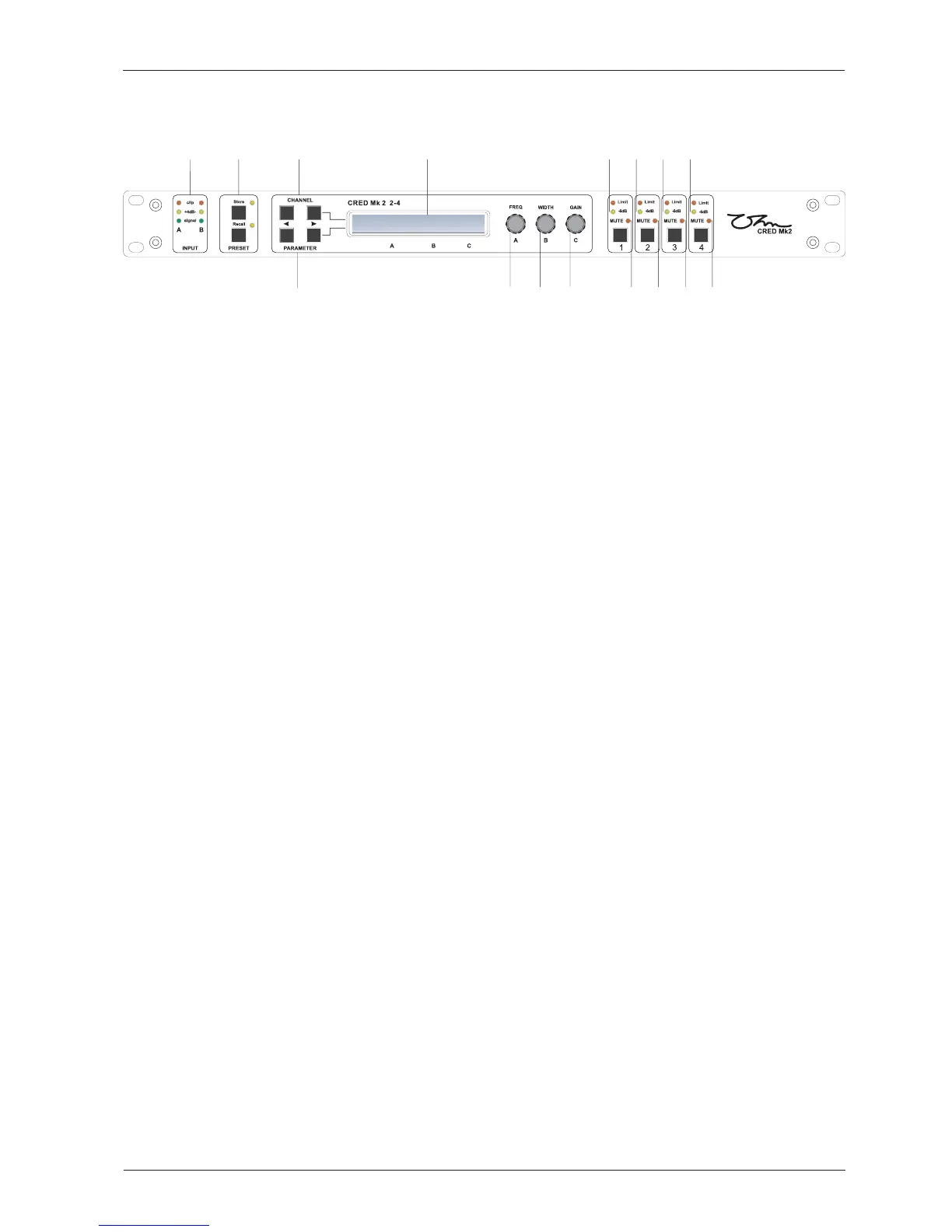

7 Output Signal / Limiter Indication
Two LEDs are provided for each output channel. These show the signal level relative to the limiter
threshold. The yellow LED will light when the signal is 6dB below the threshold and the red
8 Mute Buttons and Status LEDs
Each output has a mute button and associated status LED. Pressing the button toggles the mute on
and off. Note that the mute buttons do not function when the Secure mode is activated.
9 Secure Button (on the rear)
A momentary button is fitted behind the rear panel, between the output XLRs and the RS232 port.
When activated, this will disable all the front panel controls so they cannot affect the signal path,
making the unit secure against tampering. When in secure mode, the indicators still operate
normally. Note that the communications port is still active in secure mode.
666
1
23
4
5 7777
8888
7
CRED Mark 2 2-4/2-6
