OHNIYOU 020 - Install the Light Bulb

4

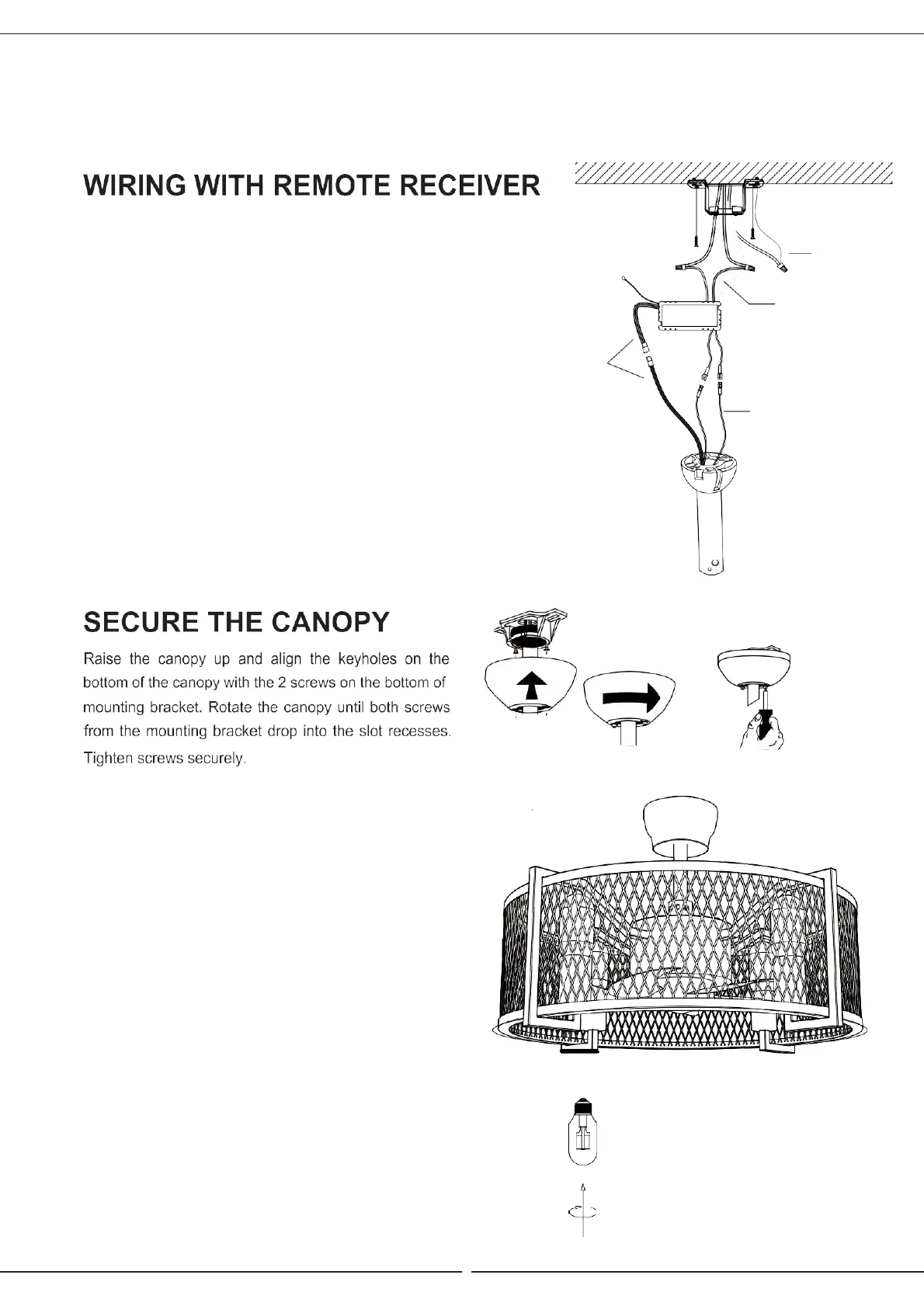

Plug the wires of the controller with the
corresponding color of the fan, and
then connect the other section of the
controller to the zero wire and the fire
wire, and then connect the ground
wire.
Motor Wire
Ground Wire
Zero wire
Fire wire
Light Wire
INSTALL THE LIGHT BULB
1. Make wiring connections. please refer to the figure right
for the electrician between fan motor and light bulb.
2.
Rotate the
5*
E26 bulb into the lamp slot.
4-E26
DC motor Control Driver
Model:XH-0SFS-24V-84 433
Input:AC110-265V 50/60HZ
LED OUT:50-200W 220816 C
