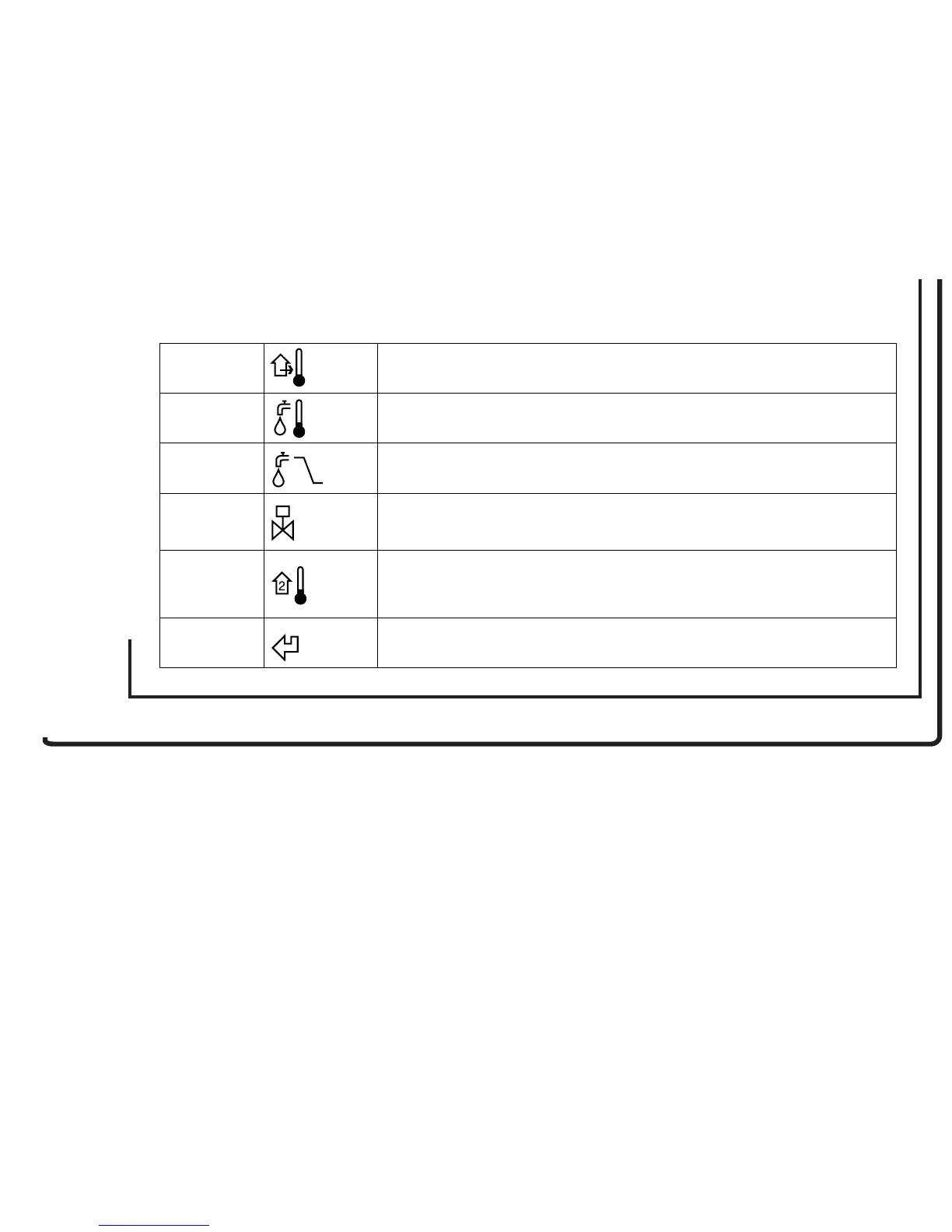

Master with Display Type WLM2
-2.4°C
Read-out
Outdoor temperature
⇄
49.2ºC
39.2ºC
Read-out
Actual supply water temperature
Actual application sensor temperature
44.4ºC
Read-out
Calculated setpoint by the controller for the supply water temperature
Push accept for 3 sec. to change PI-action & 0-10V out
3.5V
Read-out
Control signal for the mixing valve.
At 10 V the mixing valve is fully open (unless the output setting has been changed to 10-0, in which case at
10 V, the valve will be fully closed)
---
24.0°C
22.9°C
Read-out
Room temperature in the different rooms. Push accept (
✓
), and the up and down keys to select another
room. The actual room temperature is shown in the centre of the display. If a maximum limitation sensor
is connected the measured temperature is shown above the room temperature, and if a minimum limitation
sensor is connected, the temperature is shown below.
Return
To Next Page
