www.okinternational.com - 27 - P/N 7000-1370, Revision B
APR Head to Pick-Up Point Alignment Procedure
Tools Required
Large Vacuum
Gun Sight Tool
Calibration Mirror
Allen Keys

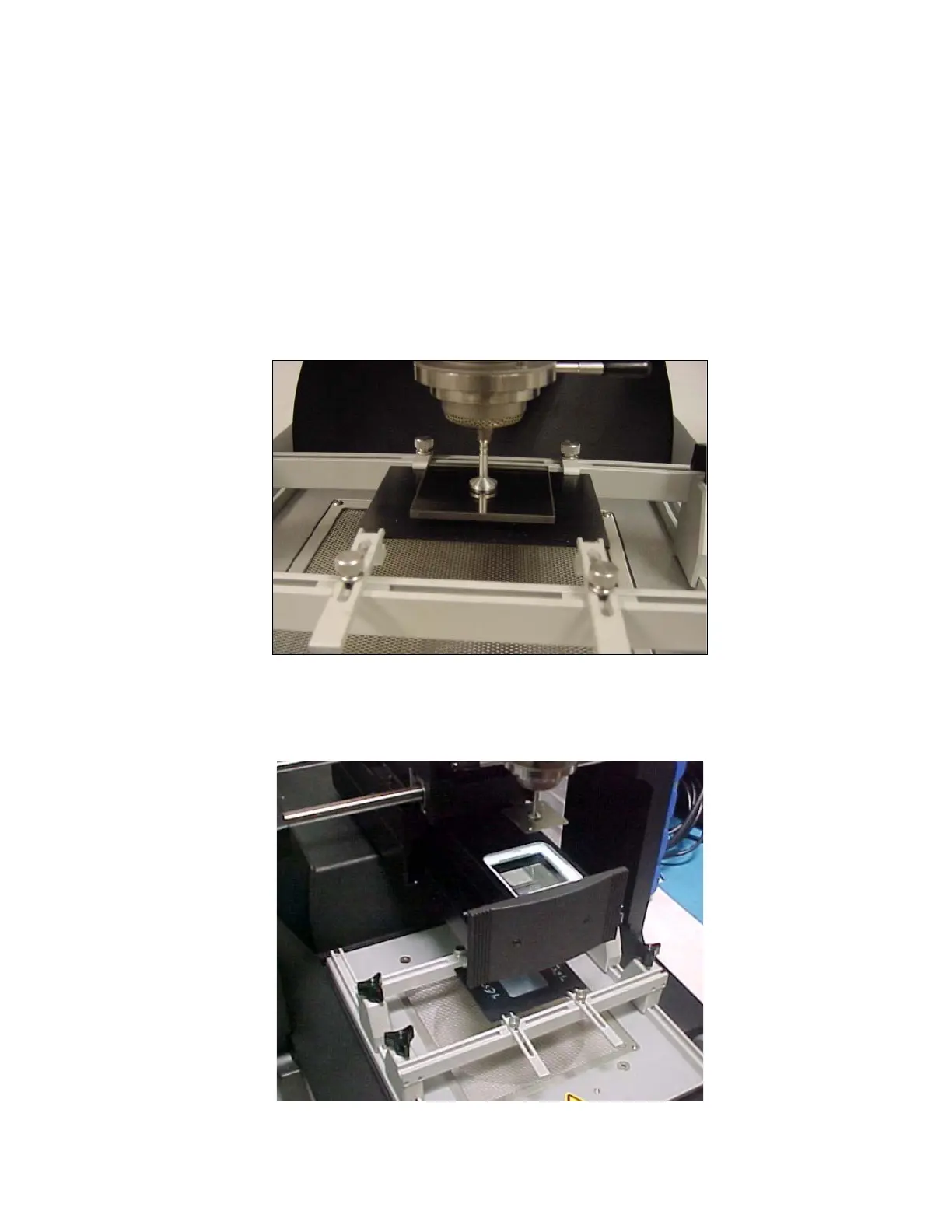

1. Drive the motor head down to the PCB pick up point and pick up the centered
mirror.
2. Drive motor up until the head is above the centering fixture. Pull out the camera.
