www.okinternational.com - 34 - P/N 7000-1370, Revision B
14. Click the “Next” key and follow the prompts on the monitor.

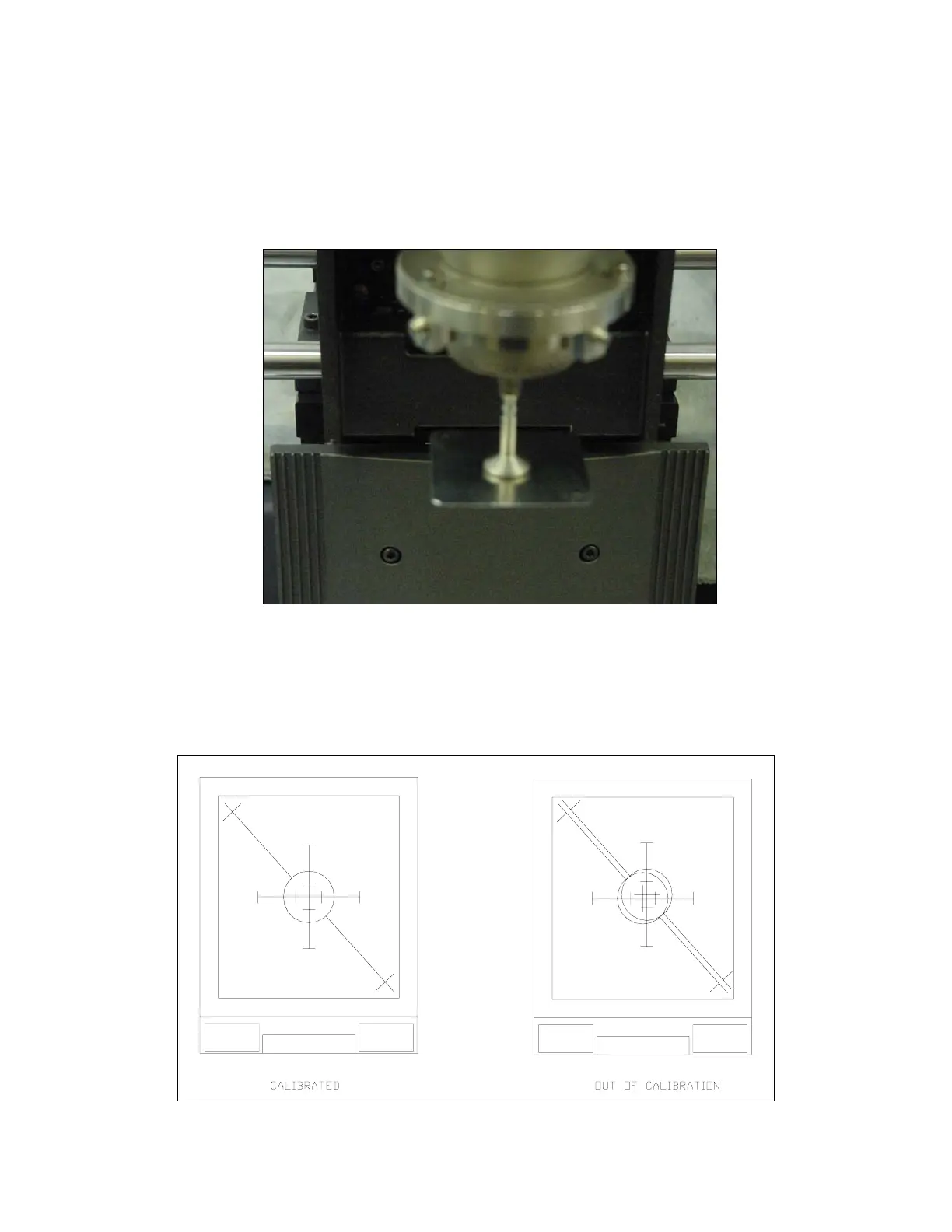

15. Pick up the component gun sight from the calibration fixture. The gun sight top
plate must be picked up from the board holder. The pins on the gun sight keep
both the top and bottom gun sights aligned prior to pick-up.
16. Using the Head Action Keys, align the focused vacuum cup image to the PCBA
gun sight image and to the component gun sight. DO NOT adjust the
micrometers.
