100 – C330/C530 Replacing Consumables and Maintenance

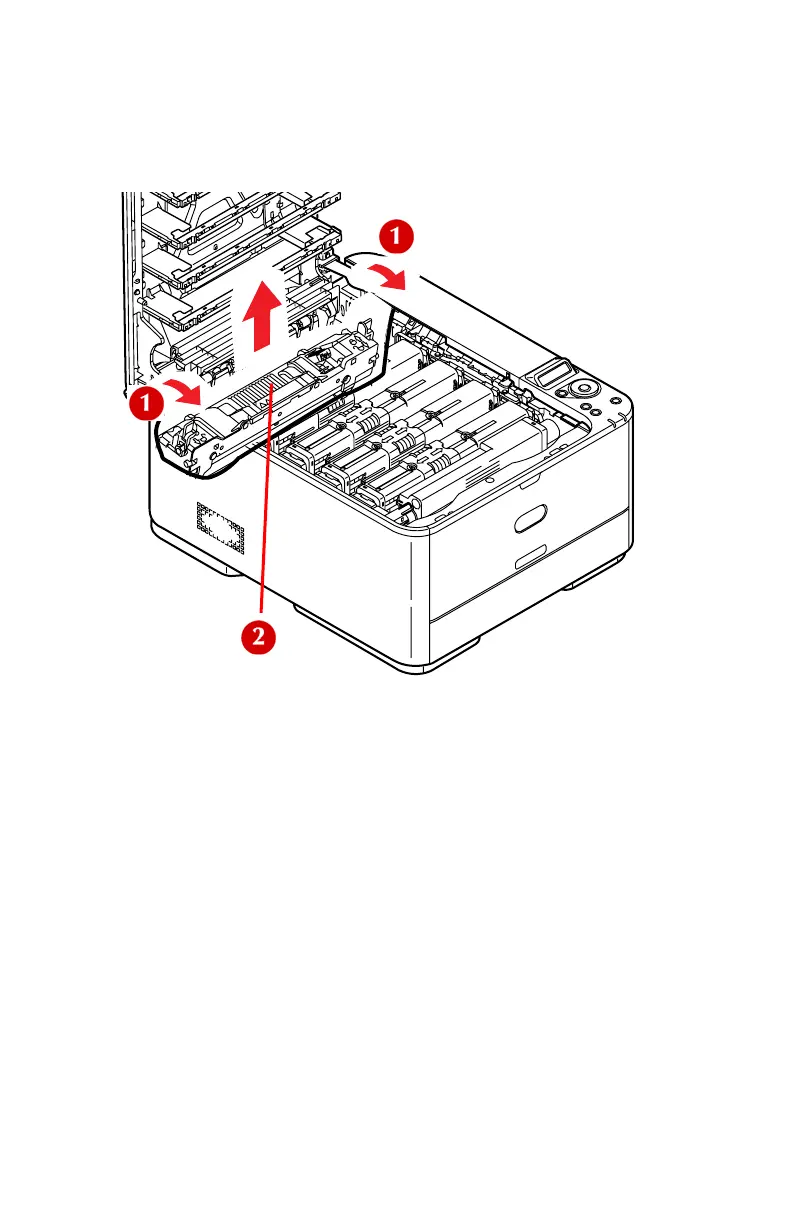

2. Pull the two fuser retaining levers (1) towards the front of
the printer so that they are fully upright. Holding the fuser by
its handle (2), lift the fuser straight up and out of the printer.
If the fuser is still warm, place it on a flat surface which will
not be damaged by heat.
3. Unpack the new fuser.
