Clearing paper jams > 64
7. Look into the printer to check whether any sheets of paper are visible on any part of
the belt unit.

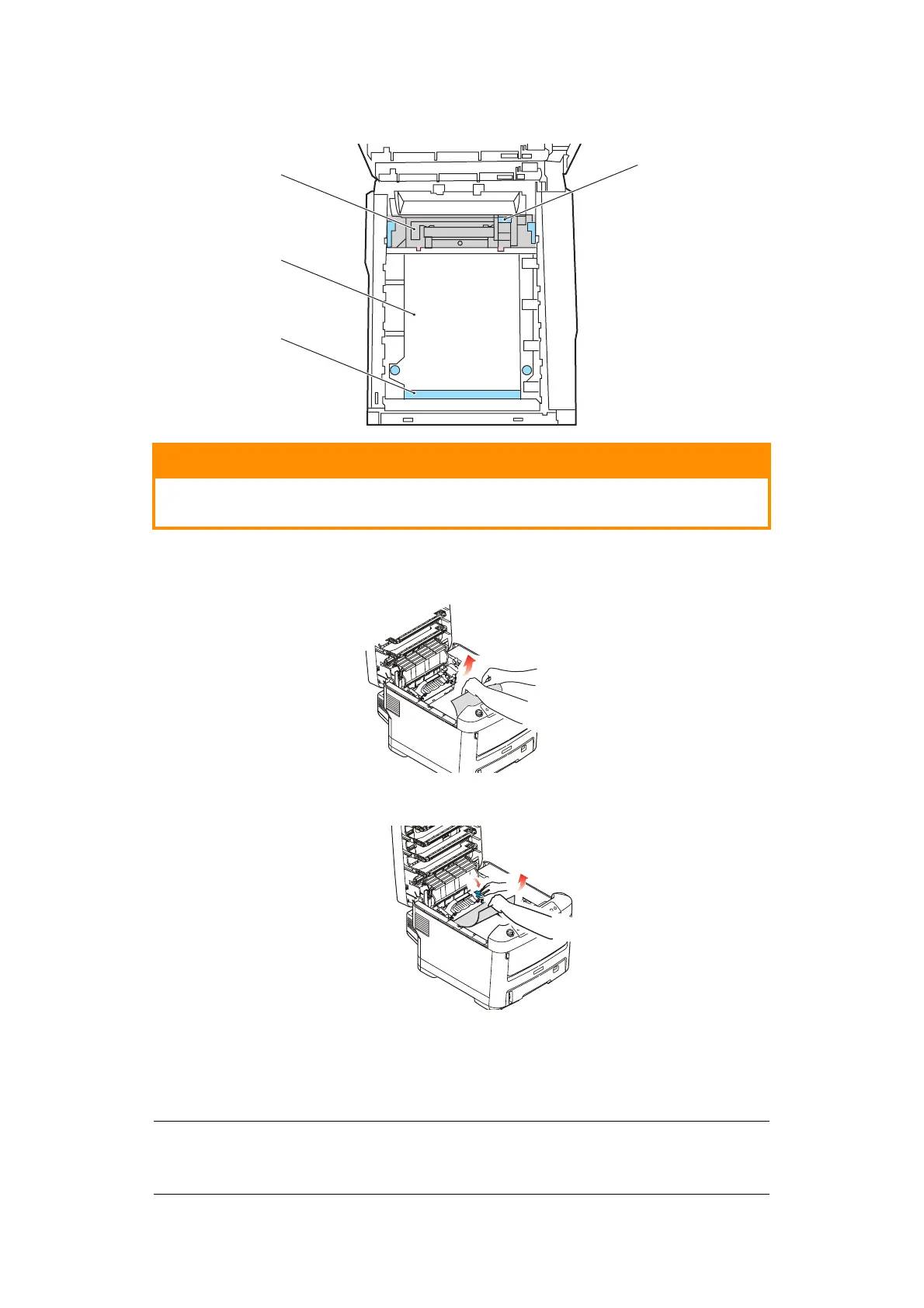

(a) To remove a sheet with its leading edge at the front of the belt (1), carefully lift
the sheet from the belt and pull it forwards into the internal drum cavity and
withdraw the sheet.
(b) To remove a sheet from the central area of the belt (2), carefully separate the
sheet from the belt surface and withdraw the sheet.
(c) To remove a sheet just entering the fuser (3), separate the trailing edge of the
sheet from the belt, push the fuser pressure release lever (4) towards the front
and down to release the fuser’s grip on the sheet, and withdraw the sheet
through the drum cavity area. Then allow the pressure release lever to rise
again.
CAUTION!
Do not use any sharp or abrasive objects to separate sheets from
the belt. This may damage the belt surface.
NOTE:
If the sheet is well advanced into the fuser (only a short length is still visible),
do not attempt to pull it back. Follow the next steps.
4
2
3
1
