Clearing paper jams> 108
9. Lower the top cover but do not press down to latch it
closed yet. This will protect the drums from excessive
exposure to room lighting while you check the remaining
areas for jammed sheets.

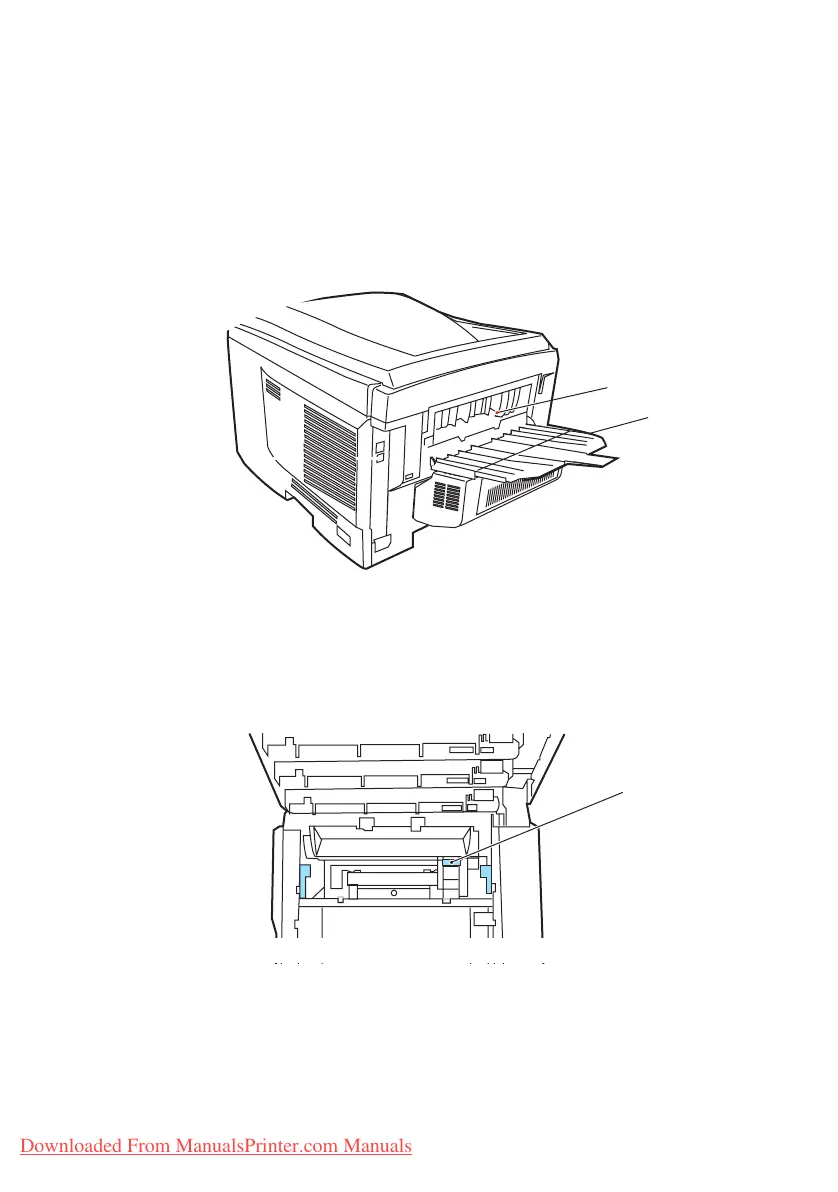

10. Open the rear exit tray (5) and check for a sheet of paper
in the rear path area (6).
• Pull out any sheets found in this area.
• If the sheet is low down in this area and difficult to
remove, it is probably still gripped by the fuser. In this
case raise the top cover, reach around and press down
on the fuser pressure release lever (4).
11. If you are not using the rear exit tray, close it once paper
has been removed from this area.
6
5
4
