Clearing paper jams > 104
> Pull out any sheets found in this area.
> If the sheet is low down in this area and difficult to
remove, it is probably still gripped by the fuser. In this

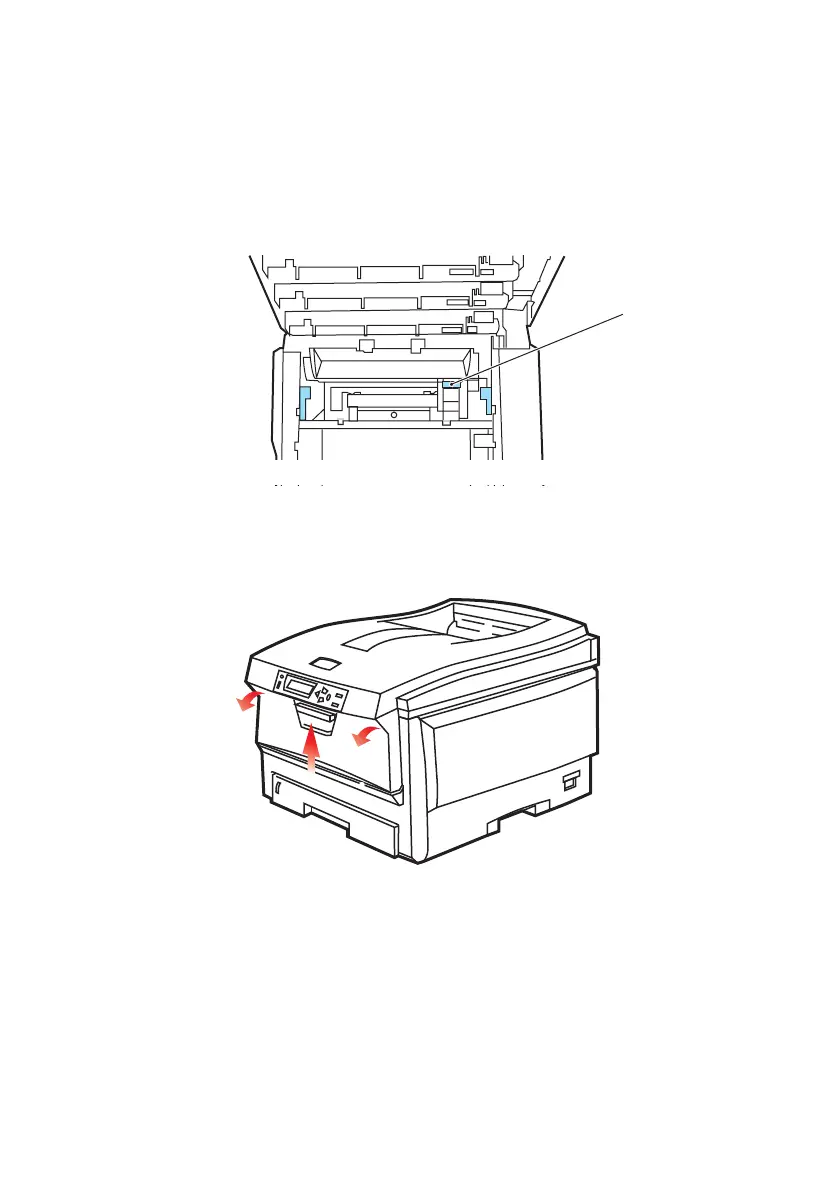

case raise the top cover, reach around and press down
on the fuser pressure release lever (4).
11. If you are not using the rear exit tray, close it once paper
has been removed from this area.
12. Lift the front cover release and pull open the front cover.
4
