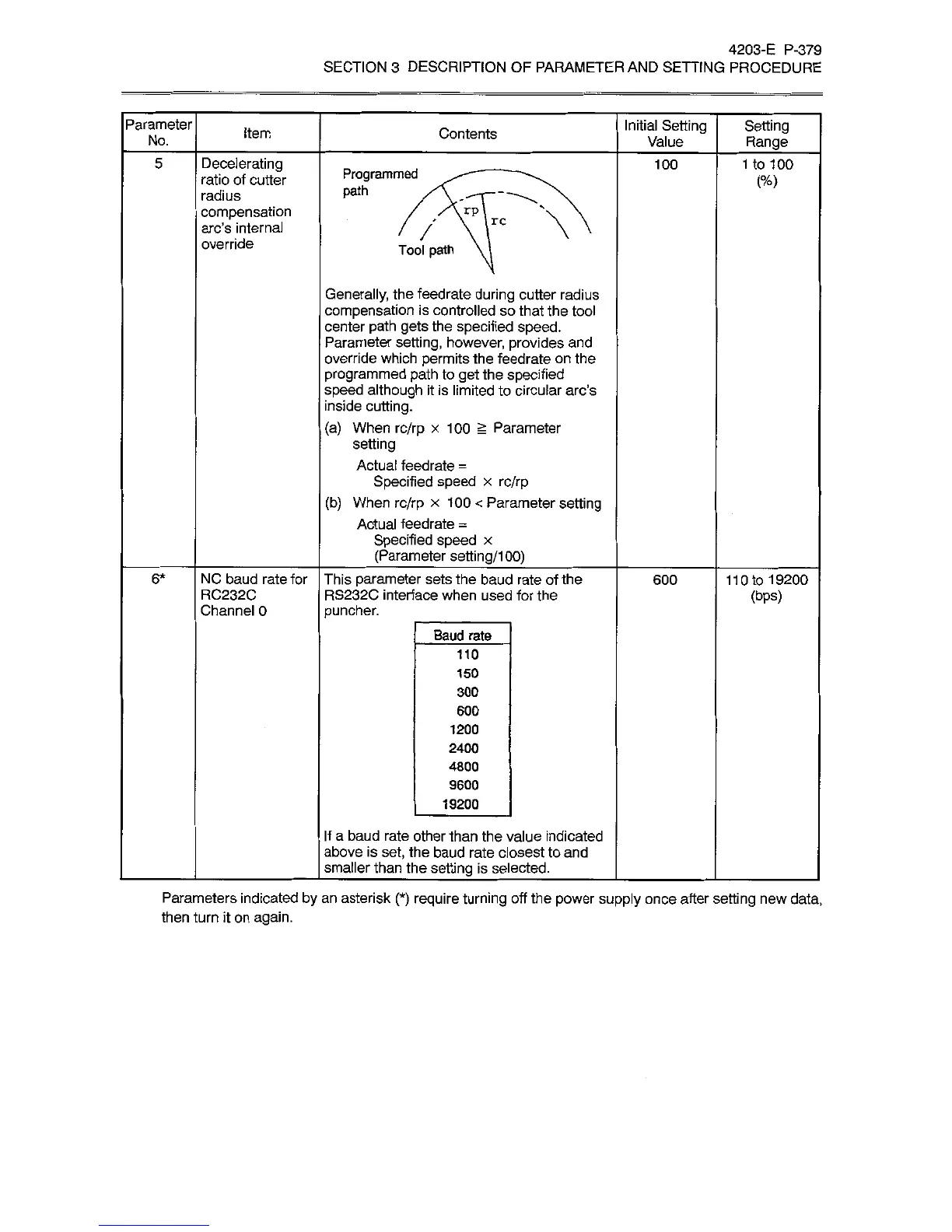

Okuma OSP-U100M - Page 401

4203-E
P-379
SECTION
3
DESCRIPTION
OF
PARAMETER
AND
SETTING
PROCEDURE
Parameter
Initial
Setting
Value
Setting
Range
item
Contents
No.
Decelerating
ratio
of
cutter
radius
compensation
arc’s
internal
override
5
100
1
to
100
Programmed
(%)
path
rP
rc
/
Tool
path
Generally,
the
feedrate
during
cutter
radius
compensation
is
controlled
so
that the
tool
center
path
gets
the
specified
speed.
Parameter
setting,
however,
provides
and
override
which
permits
the
feedrate
on
the
programmed
path
to
get
the
specified
speed
although
it
is
limited
to
circular
arc's
inside
cutting.
(a)
When
rc/rp
x
100
Parameter
setting
Actual
feedrate
=
Specified
speed
x
rc/rp
(b)
When
rc/rp
x
100
<
Parameter
setting
Actual
feedrate
=
Specified
speed
x
_
(Parameter
setting/1
00)
NC
baud
rate
for
RC232C
Channel
0
This
parameter
sets
the
baud
rate
of
the
RS232C
interface
when used
for
the
puncher.
6*
600
110
to
19200
(bps)
Baud
rate
110
150
300
600
1200
2400
4800
9600
19200
If
a
baud
rate
other than
the
value
indicated
above is
set,
the
baud
rate
closest
to
and
smaller
than
the
setting
is
selected.
Parameters indicated
by
an
asterisk
(*)
require
turning
off
the
power
supply
once
after
setting
new
data,
then
turn
it
on
again.
