6-17

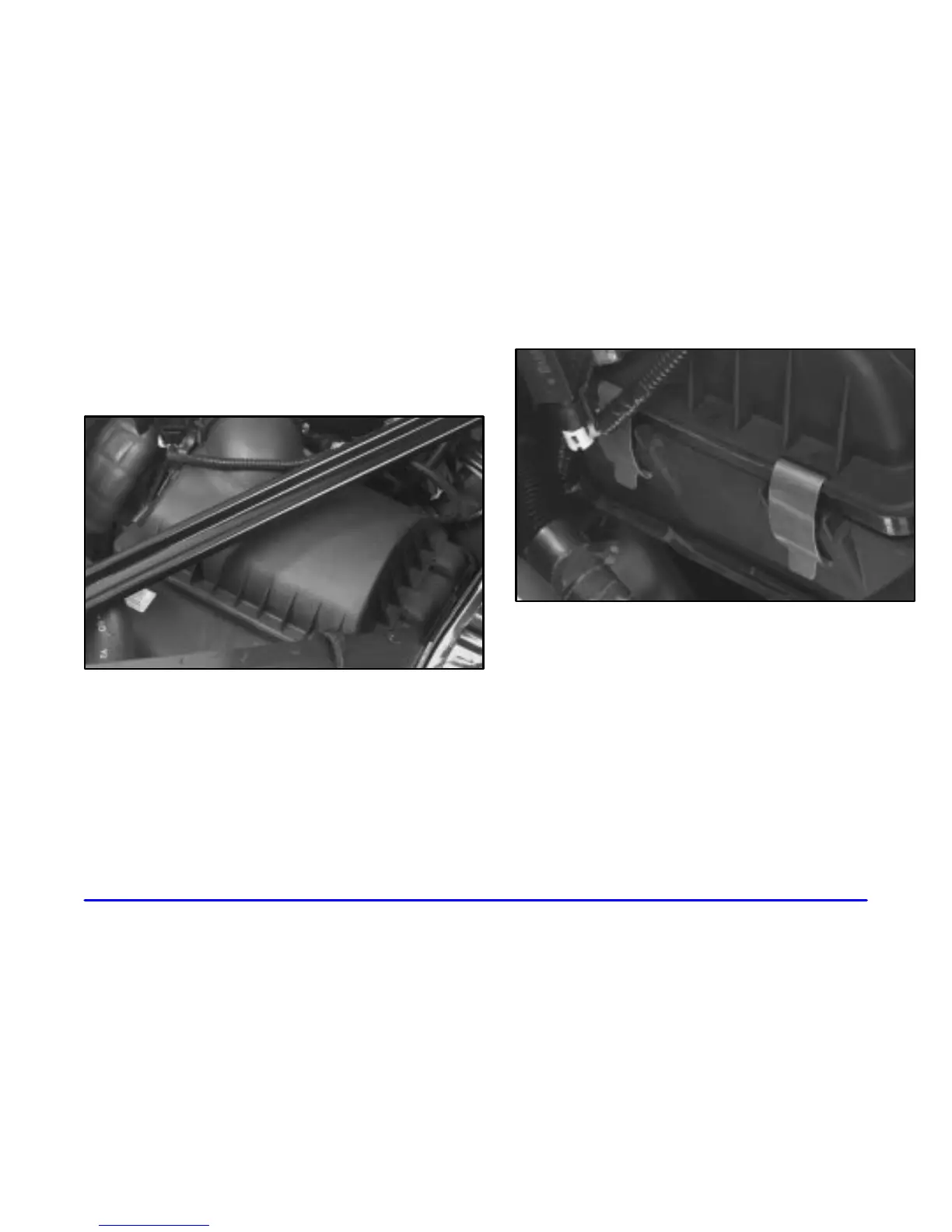

Engine Air Cleaner/Filter
To check or replace the air cleaner/filter:
1. Using a screwdriver, loosen the bolt on the air duct
clamp from the throttle body.
2. Remove the air duct from the throttle body.
3. Unhook the two hold down clips located on the air
box cover.
4. Lift the air box cover and air duct assembly away
from the air box, toward the engine.
