6-41

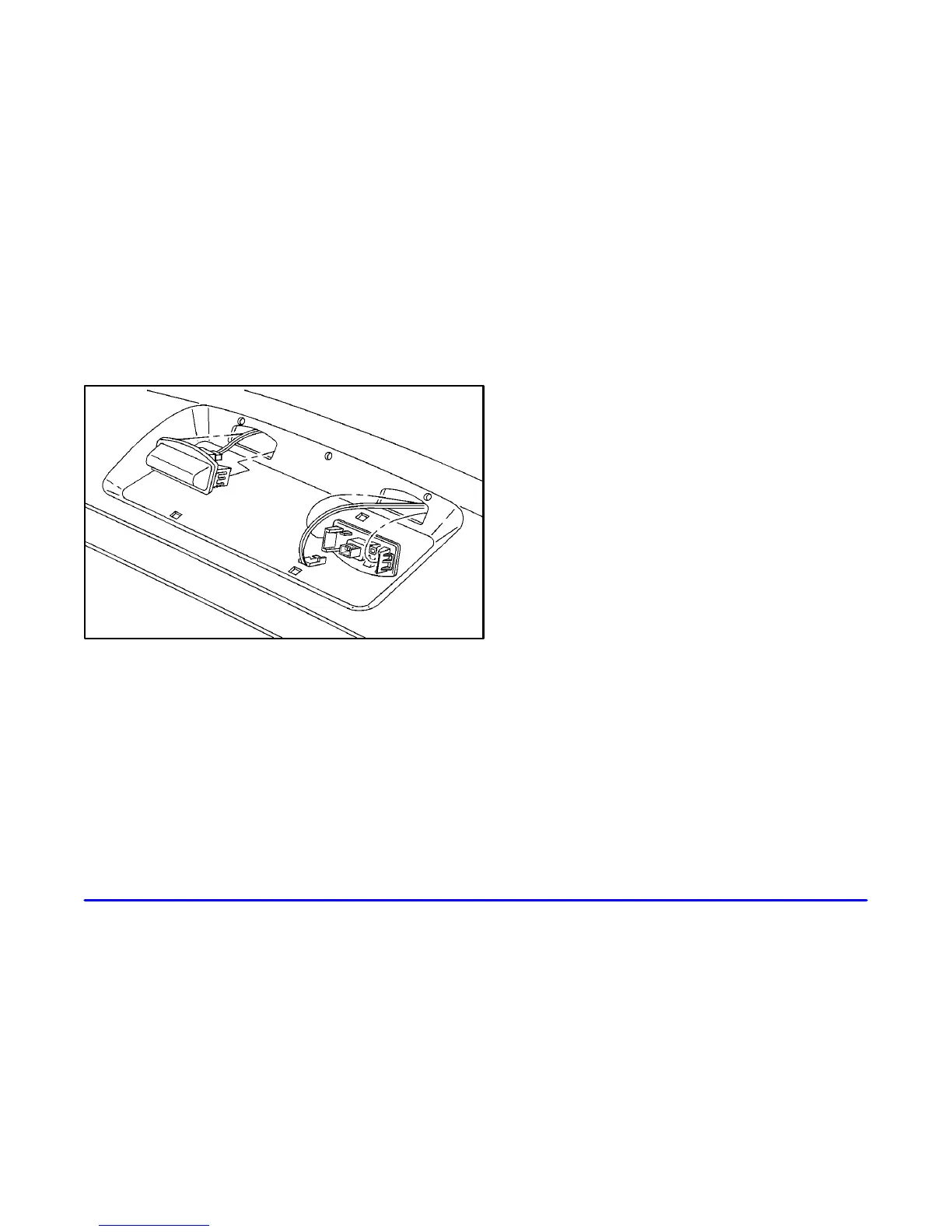

License Plate Lamp
1. Remove the four screws to remove the name plate.
2. Reach your hand up through underside of the trunk
into the slots.
3. Press the clip on one side of the bulb assembly
and pull out the assembly from the front with your
other hand.
4. Remove the bulb from the socket.
5. Place the new bulb into the socket.
6. Reverse the steps to reinstall.
When reinstalling bulb assembly, push in assembly
until you hear a snap. Make sure the assembly is tight
and not loose.
Windshield Wiper Blade Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See “Wiper Blade
Check” in Section 7 of this manual under Part B “Owner
Checks and Services” for more information.
Replacement blades come in different types and are
removed in different ways. For the proper type and
length, see “Normal Maintenance Replacement Parts” in
the Index.
