6-40
Tail/Stop/Turn Signal lamp

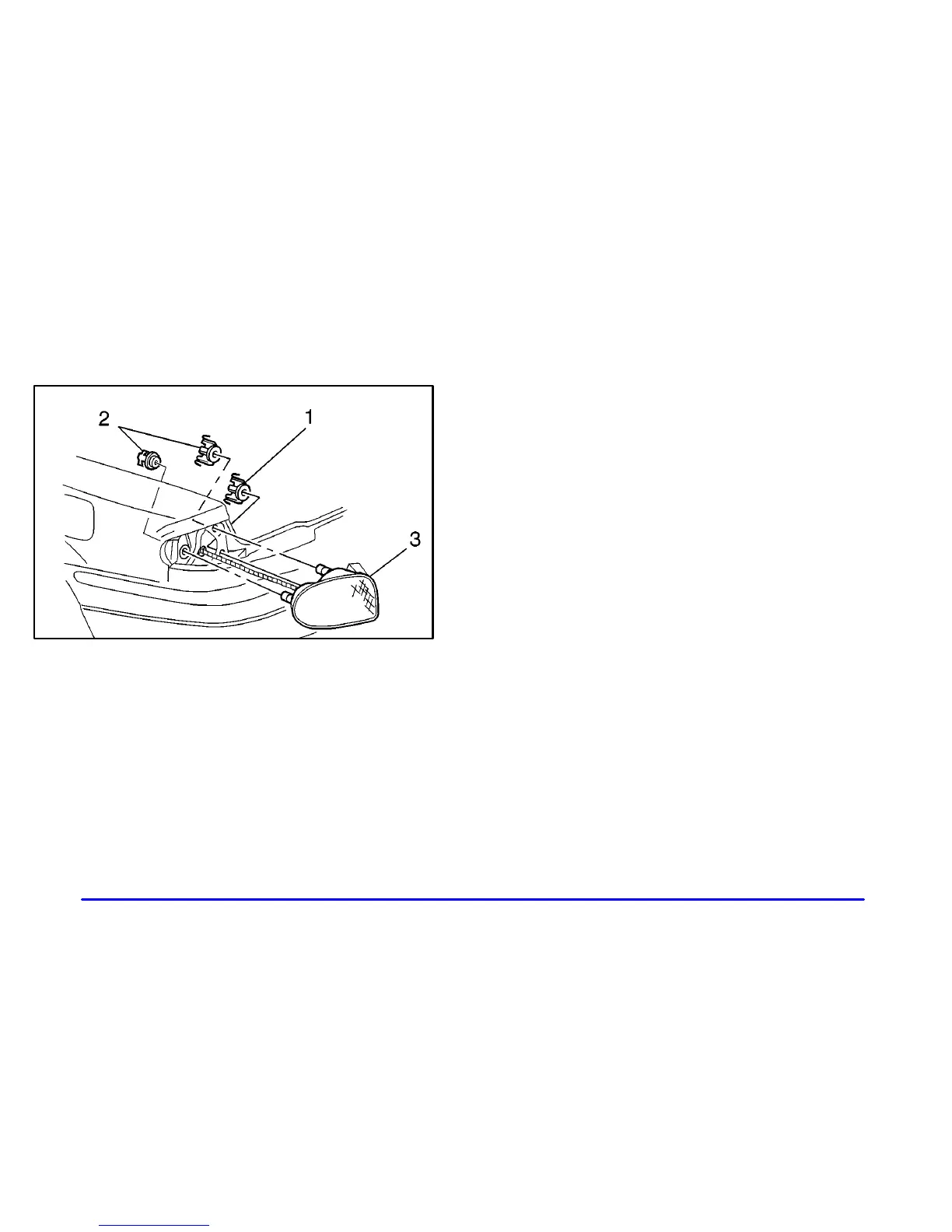

1. Unscrew the wing nut inside of the trunk (1) behind
the taillamp to be changed (if equipped with a
convenience net, unhook the net).
2. Pull back the carpeting.
3. Remove the plastic wing nuts (2).
(Pliers may be required to remove the wing nuts.)
4. Pull the taillamp housing away from the body
of the vehicle (3).
5. Squeeze the tab on the bulb socket and turn the
socket counterclockwise.
6. Pull out the bulb socket.
7. Pull the old bulb out of the socket.
(There are four bulbs on each taillamp.)
8. Push in a new bulb.
9. Reinstall the bulb socket into the housing and turn
it clockwise.
10. Reinstall the taillamp housing to the body
of the vehicle.
11. Reinstall the wing nuts.
12. Tighten the plastic nuts.
