Doc No.
Version 1.0
TITLE
Service Manual
LCD TV For 232-S12
Page 20/44

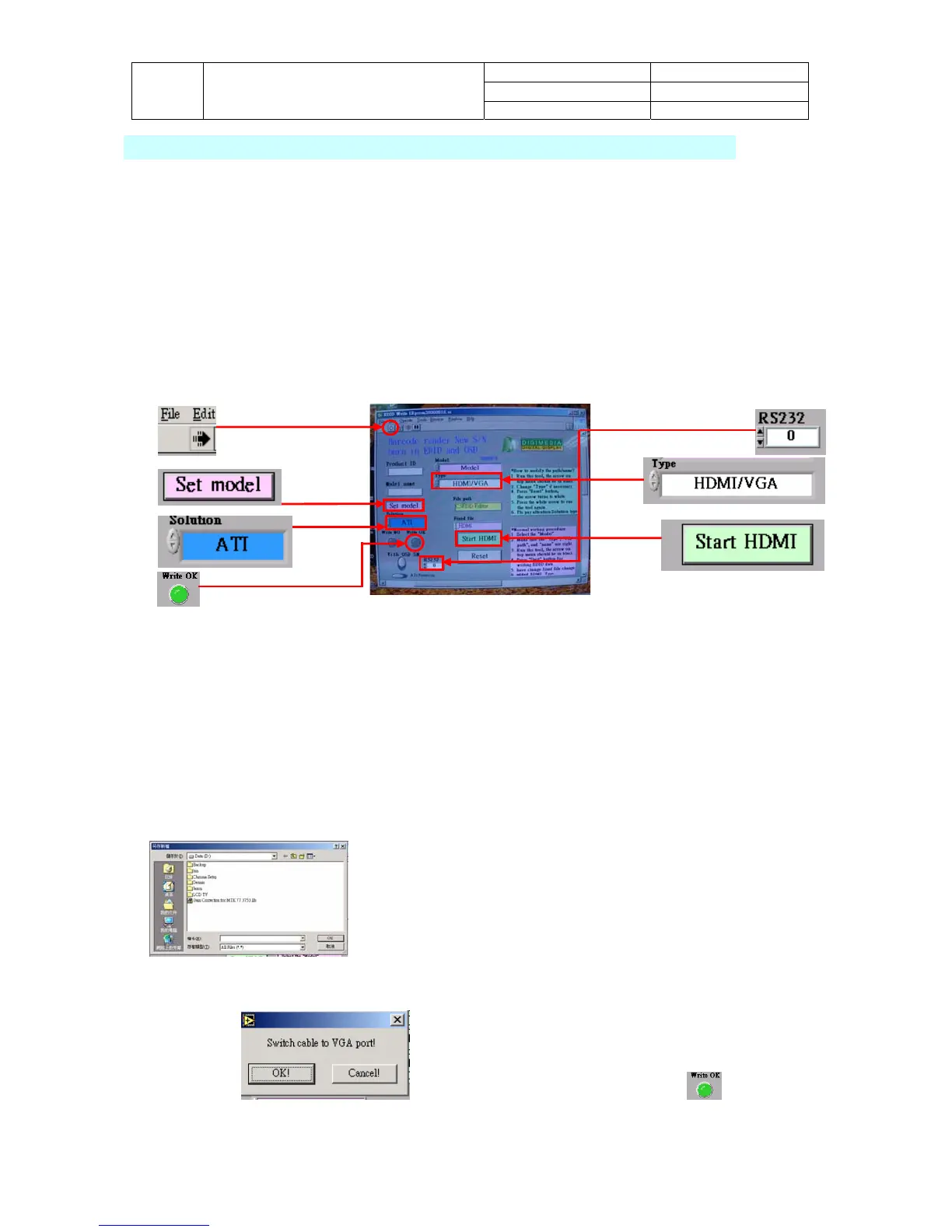

7. EDID write in and ADC correction and Parameter Adjustment
7-1 EDID write in
7-1.1 EDID tools
7-1.2 EDID write in
1. Open Labview EDID Writ Eeprom20060816 file, and confirm software Keep Running.（Refer
Step 1）
2. choice RS-232 (PC System)Port No.(Refer Step 2)，choice burn in type (Refer Step 3)
3. press Set Model button（Refer Step 4）, and key in 232-S12. and confirm Scalar solution （Refer
Step 5）
4. confirm EDID Jig PCBA (printer port and USB A-B Line connect to PC, HDMI line to TV first ,
MinDim RS-232 to TV)
5. and then press Button（Refer Step 6）, then open a save file path in widow.
operate Barcode scanner scan S/N stick No.
6. First write HDMI EDID code , if finish OK you can find green light.（Refer Step 7）
7. And have a message that change EDID Jip PCBA VGA Cable to TV.(HDMI line must leave
PCBA Jig.)
,if write OK you can fine green light and show the
1. PC（Notebook）
2. Software（EDID Write EEprom20060816.exe）and confirm Personal computer hard disk
Have 2 files (1. C:\EDID Editor(including Hex files) 2.C:\LCD TV\DATA(product and
record had No.)
3. EDID PCBA tool、USB cable、RS232 mini din、Print cable、VGA cable
Step 1
Step 4
Step 5
Step 2
Step 3
Step 6
Step 7
To Next Page
