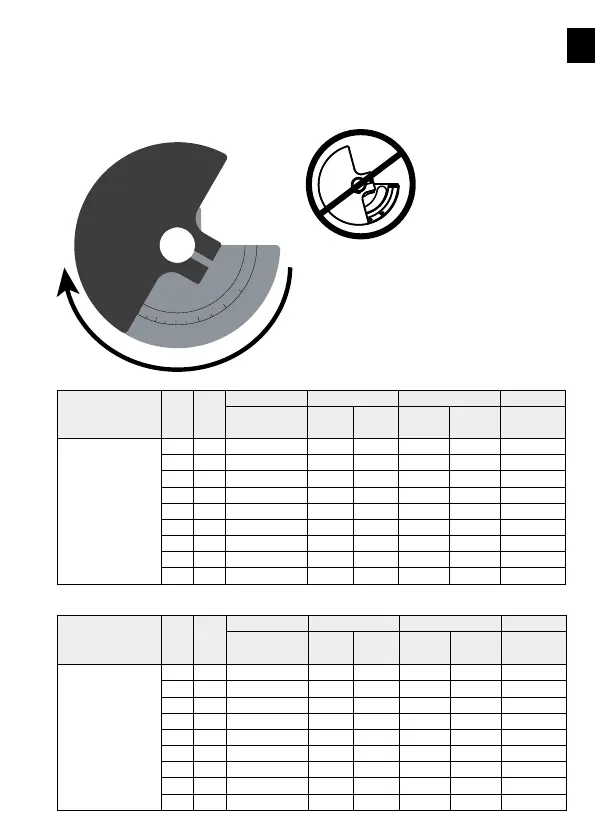

OLI MVE - Page 49

TAB
MVE 1300/6N-HF-50A0 - MVE 3100/2N-HF-50A0
MVE 1300/6N-HF-53A0 - MVE 3100/2N-HF-53A0
MVE 2000/6N-HF-53A0 - MVE 4100/2N-HF-53A0
50%
< 10%
4 0
6 0
5 0
8 0
7 0
9 0
3 0
2 0
LS
Hz RPM
Maximum Static Moment Centrifugal force Bearing life
Weight
position
in*lb Kg*cm lb Kg (hrs)
MVE 1300/6N-HF-50A0 MVE 3100/2N-HF-50A0 MVE 1300/6N-HF-53A0 MVE 3100/2N-HF-53A0
100 6000 50% 3,18 3,66 3250 1.474 1232
90 5400 60% 3,82 4,40 3158 1.432 1507
80 4800 70% 4,45 5,13 2908 1.319 2230
70 4200 90% 5,73 6,60 2867 1.300 2675
60 3600 100% 6,36 7,33 2340 1.061 6143
50 3000 100% 6,36 7,33 1625 737 24836
40 2400 100% 6,36 7,33 1039 471 >100000
30 1800 100% 6,36 7,33 584 265 >100000
20 1200 100% 6,36 7,33 260 118 >100000
Hz RPM
Maximum Static Moment Centrifugal force Bearing life
Weight
position
in*lb Kg*cm lb Kg (hrs)
MVE 2000/6N-HF-53A0 MVE 4100/2N-HF-53A0
100 6000 70% 3,18 3,66 4466 2030 424
90 5400 60% 3,82 4,40 3733,4 1697 770
80 4800 100% 6,45 7,44 4215,2 1916 514
70 4200 100% 6,45 7,44 3227,4 1467 1252
60 3600 100% 6,45 7,44 2371,6 1078 3496
50 3000 100% 6,45 7,44 1647,8 749 11767
40 2400 100% 6,45 7,44 1053,8 479 52218
30 1800 100% 6,45 7,44 591,8 269 >100000
20 1200 100% 6,45 7,44 264 120 >100000
