Notes to installation
Do install in accordance with the dimension stated in this manual; the incorrect
installation will directly affect the machine operation even cause failure
damaging the machine.
When the equipment is being installed, do tighten reliably to prevent the
machine from loosening to result in the incorrect identification of door and cause
vibration; meanwhile, it will also influence the door operation and service life of
machine.

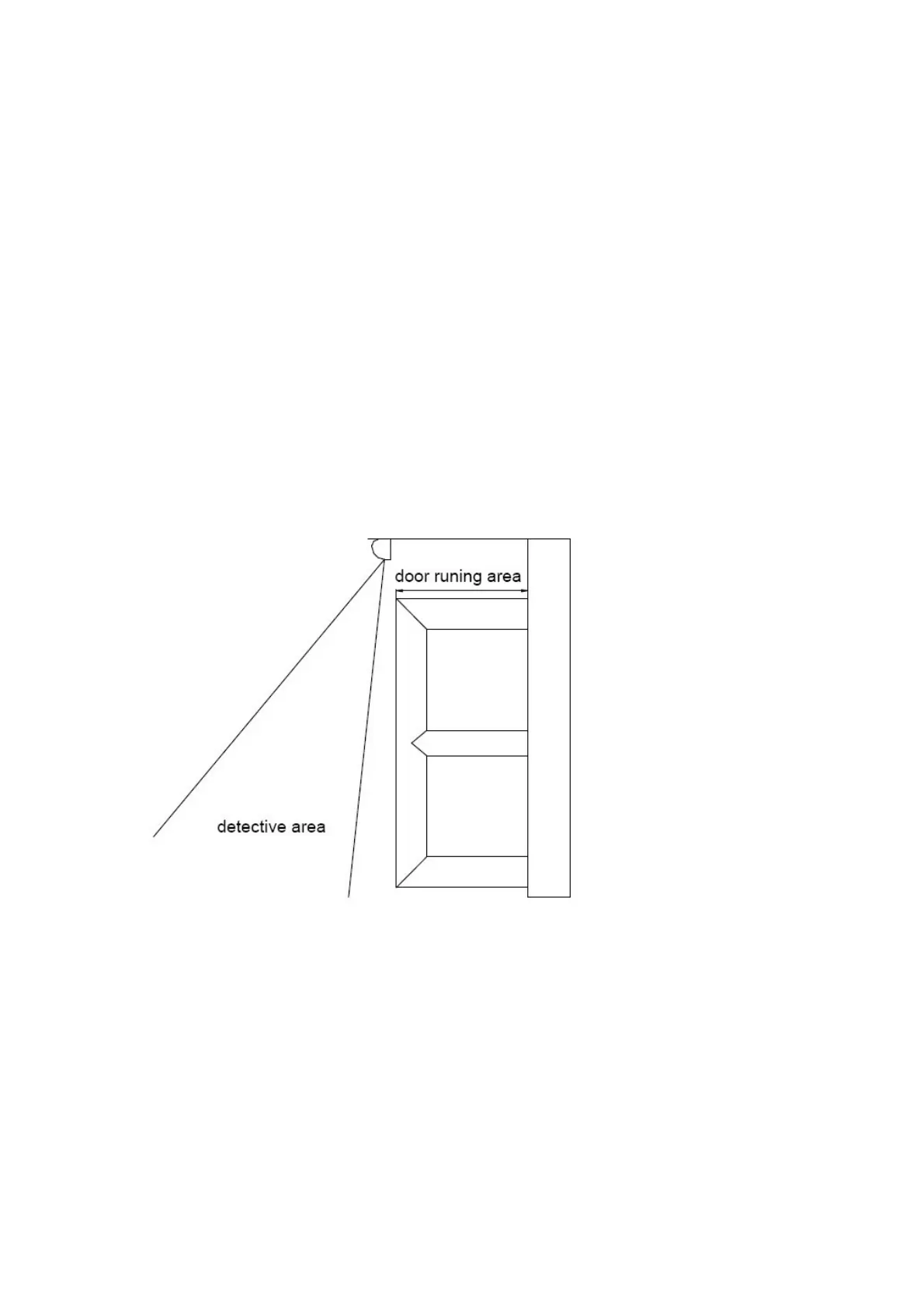

The body sensor can induce the movement of human body only. while, the other
types of sensor can induce all the moving objects. As long as the object moves,
the sensor will react; therefore, the automatic door operator will be triggered to
operate. All the other moving objects installed in the door body shall avoid the
detection scope.
3. Wiring Diagram
