Olimpia splendid CALDO UP - Appliance Operation and Features; Remote Control and Display Symbols

I GB F
5
POWER
LOW HIGH TEMP TIMER
FAN °C SWING
SW1
S7
S5 S6
S4
S2 S1
D1
S3
SW4
SW5
SW2
SW3
SW6
38

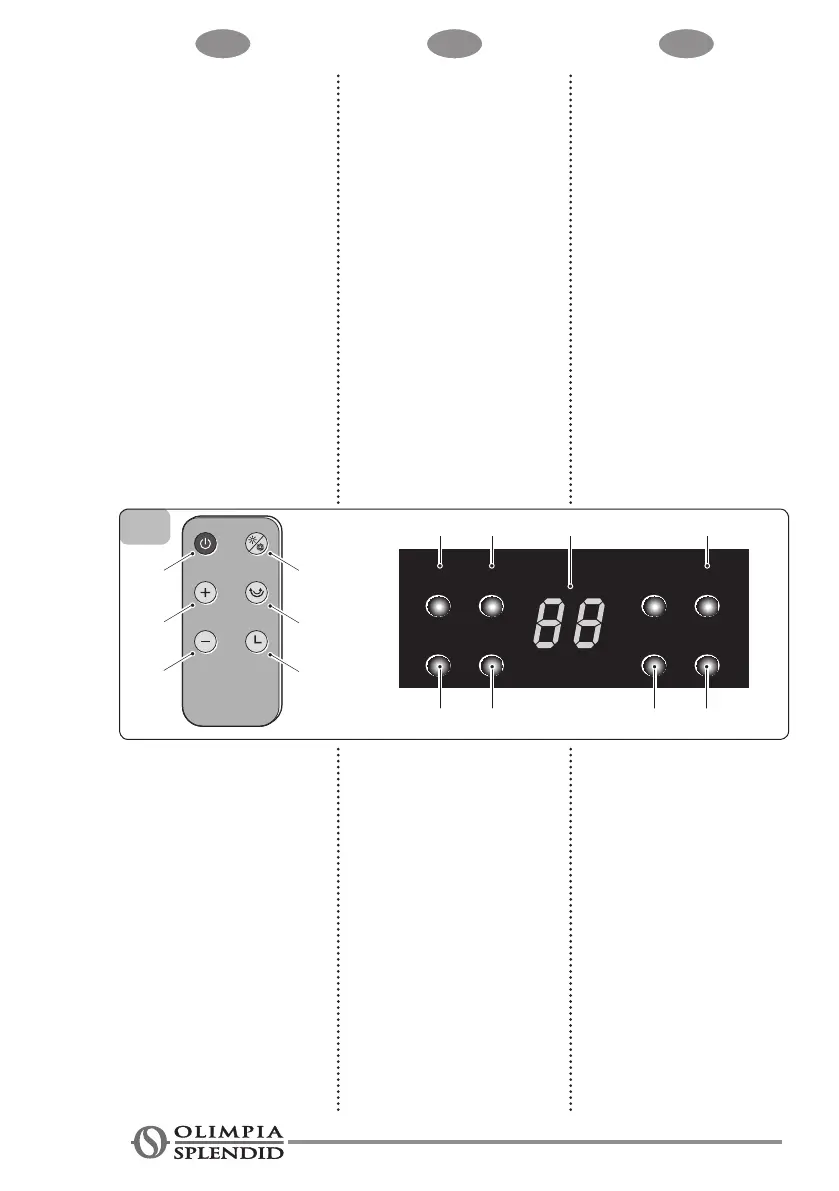

LEGENDA DEI
TASTI DEL
TELECOMANDO
SW1: Funzionamento/Standby
SW2: Selezione modalità ope-
rativa (ventilazione - po-
tenza minima - potenza
massima)
SW3: Oscillazione ap uscita
aria
SW4: Aumento temperatura
SW5: Riduzione temperatura
SW6: Conferma/annullamen-
to ritardo accensione/
spegnimento unità
KEY OF REMOTE
CONTROL SYM-
BOLS AND KEYS
SW1: Operating/Standby
SW2: Operating mode selec-
tion (ventilation - mini-
mum power - maximum
power)
SW3: Air outlet ap oscillation
SW4: Increase temperature
SW5: Decrease temperature
SW6: Conrm/cancel unit on/
off delay
LEGENDE DES
SYMBOLES ET
TOUCHES DU
TÉLÉCOMMANDE
SW1: Fonctionnement /Veille
SW2: Sélection mode de fonc-
tionnement (ventilation
- puissance minimum -
puissance maximum)
SW3: Oscillation du volet de
sortie d’air
SW4: Augmentation tempéra-
ture
SW5: Réduction température
SW6: Confirmation/annula-
tion retard allumage/
extinction unité
LEGENDA DEI
SIMBOLI
DEL DISPLAY
D1: Temperatura impostata
/Timer
S1: Modalità timer attiva
S2: Modalità ECO attiva
S3: Rotazione ap attiva
S4: Modalità ventilazione attiva
S5: Modalità riscaldamento
MIN
S6: Modalità riscaldamento
MAX
S7: Modalità STANDBY
KEY TO SYMBOLS
ON DISPLAY
D1: Set temperature/Timer
S1: Timer mode active
S2: ECO mode active
S3: Flap rotation active
S4: Ventilation mode active
S5: Heating mode MIN
S6: Heating mode MAX
S7: STANDBY mode
LEGENDE DES
SYMBOLES DE
L’AFFICHEUR
D1: Température paramé-
trée/Temporisateur
S1: Mode temporisateur
actif
S2: Mode ECO actif
S3: Rotation du volet acti-
vée
S4: Mode ventilation actif
S5: Mode chauffage MIN
S6: Mode chauffage MAX
S7: Mode STANDBY
