MODEL 702-N, 702-NSE and 702-NSS BUN SLICERS
0702S20038
CHANGING THE BLADE
WARNING
NEVER ATTEMPT TO CLEAN OR SERVICE THIS MACHINE UNTIL
IT HAS BEEN DISCONNECTED FROM THE POWER SUPPLY AND
YOU ARE SURE THE BLADE HAS STOPPED. ALSO REMEMBER
TO USE CARE WHENEVER YOU ARE WORKING NEAR THE BLADE.

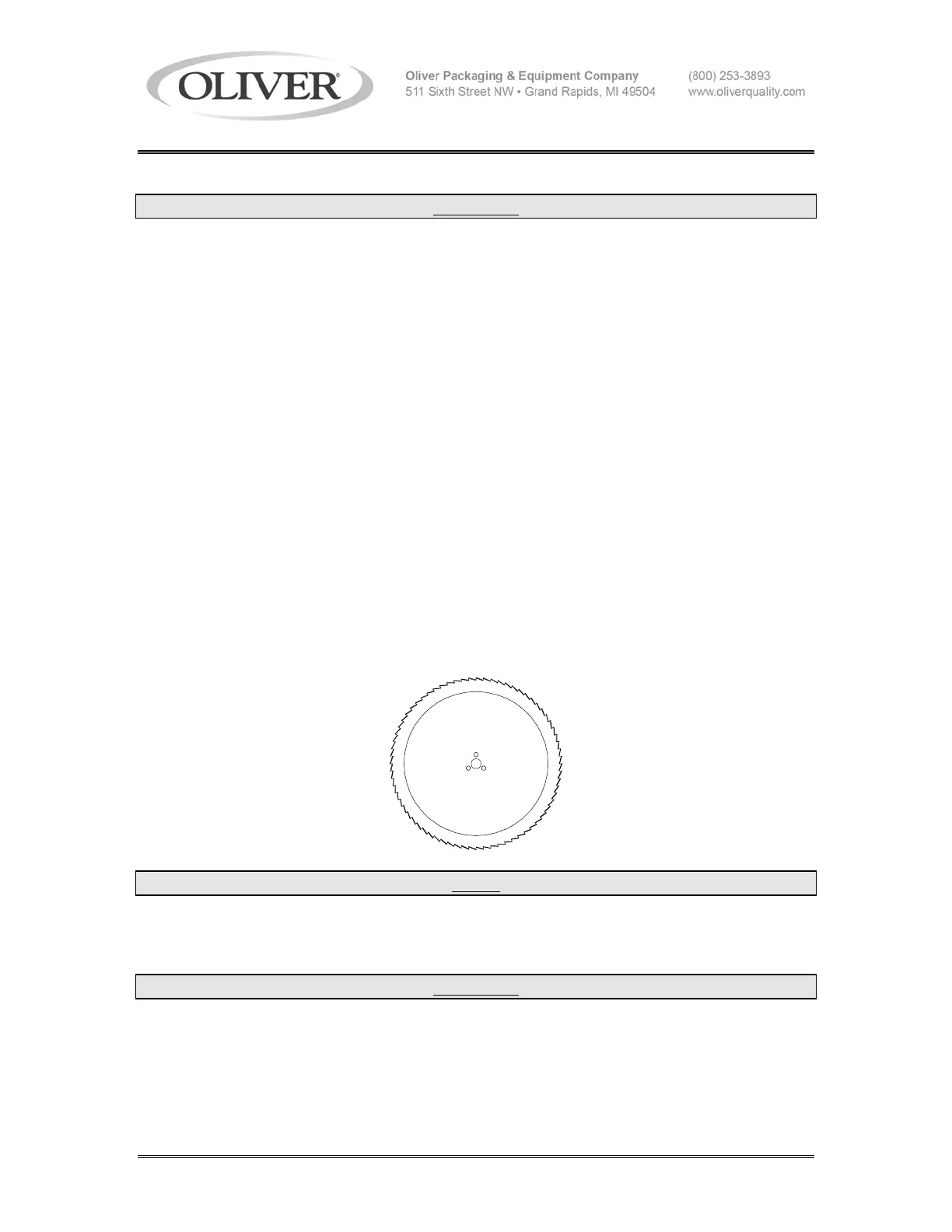

CHANGING THE BLADE
• Remove the BLADE GUARD by removing the three knobs which hold it in place. Lift
it clear of the machine and set it aside.
• Remove the OUTSIDE GUIDE AND CHUTE GUARD ASSEMBLY by loosening both
knobs which secure it in place. Then slide the assembly off the machine and set it
aside.
• Using a 7/16 inch hex wrench remove the three screws securing the BLADE to the
hub and lift the BLADE from the machine.
• The BLADE can then be replaced by reversing the above procedure.
• When reinstalling the BLADE, make sure that the points on the teeth are pointed in a
counter clockwise direction.
NOTE
LOOKING AT THE SHAFT END OF THE MOTOR THE BLADE SHOULD
ALWAYS ROTATE CLOCKWISE.
WARNING
DO NOT START THE SLICER UNTIL ALL GUARDS ARE IN PLACE
AND SECURELY FASTENED AND YOU HAVE MADE SURE THAT
THE BLADE IS NOT HITTING ANY OF THE METAL PARTS.
