OLT 6x6 Maximizer - Miscellaneous Shed Components; Securing Roof with Ties and Rafter Screws

4 - 90 degree
Simpson Ties / Gable
53. Further secure roof by attaching rafters to
roof with 3 - 2 1/2” screws (Part B) per rafter.
Mid Rafter
Roof Plywood
3 - 2 1/2” angle screwed
into each mid rafter. rill
1/8” pilot hole first
52. Attach 2 Simpson Strong Ties (Part
G) per outside rafter with 4 - 1 1/4”
screws (Part C). Total of 8 ties.
4. Miscellaneous Section
Front and
Rear Facia
- 2 pcs.
(Part 4L)
Horizontal Gable
Trim - 4 pcs.
(Part 4H)
Narrow Trims Side
Wall - 2 pcs.
(Part 4I)
Pentagon Facia
- 2 pcs. (Part 4M)
Note - missing from exploded drawing: Interior
Cane Bolt, Door Stops, Door Threshold.

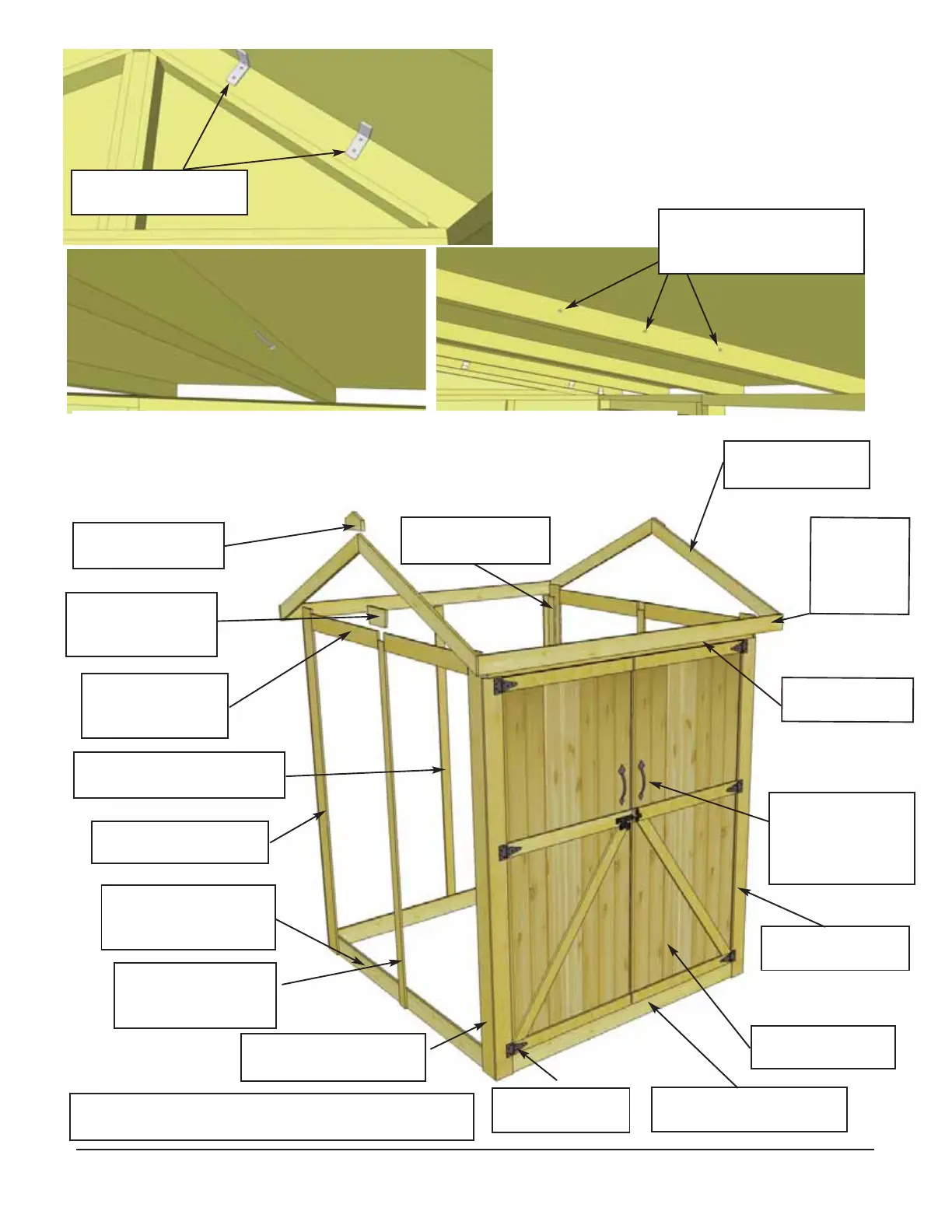

Exploded view of all parts necessary to complete the
Miscellaneous Section. Identify all parts prior to starting.
Rear Filler Trim
- 2 pcs. (Part 4D)
Front Bottom Skirting
(Part 4B)
Side Facia
- 4 pcs (Part 4K)
Tee Hinges
- 6 pcs. (Part H)
Solid Door - L/R
(Parts 4N &4O)
Door Hardware -
Pull Handle &
Barrel Bolt
(Parts K & L)
Door Trim
- 2 pcs. (Part 4A)
Above Door
Trim (Part 4Q)
Side & Rear Bottom
Skirting - 6 pcs.
(Part 4C)
Side Front Wide Trim
- 2 pcs. (Part 4G)
Side Rear Wide Trim
- 2 pcs. (Part 4E)
Narrow Trims Rear Wall
- 3 pcs. (Part 4F)
Gable Trim Detail
Plate - 2 pcs.
(Part 4J)
