Detail Plate

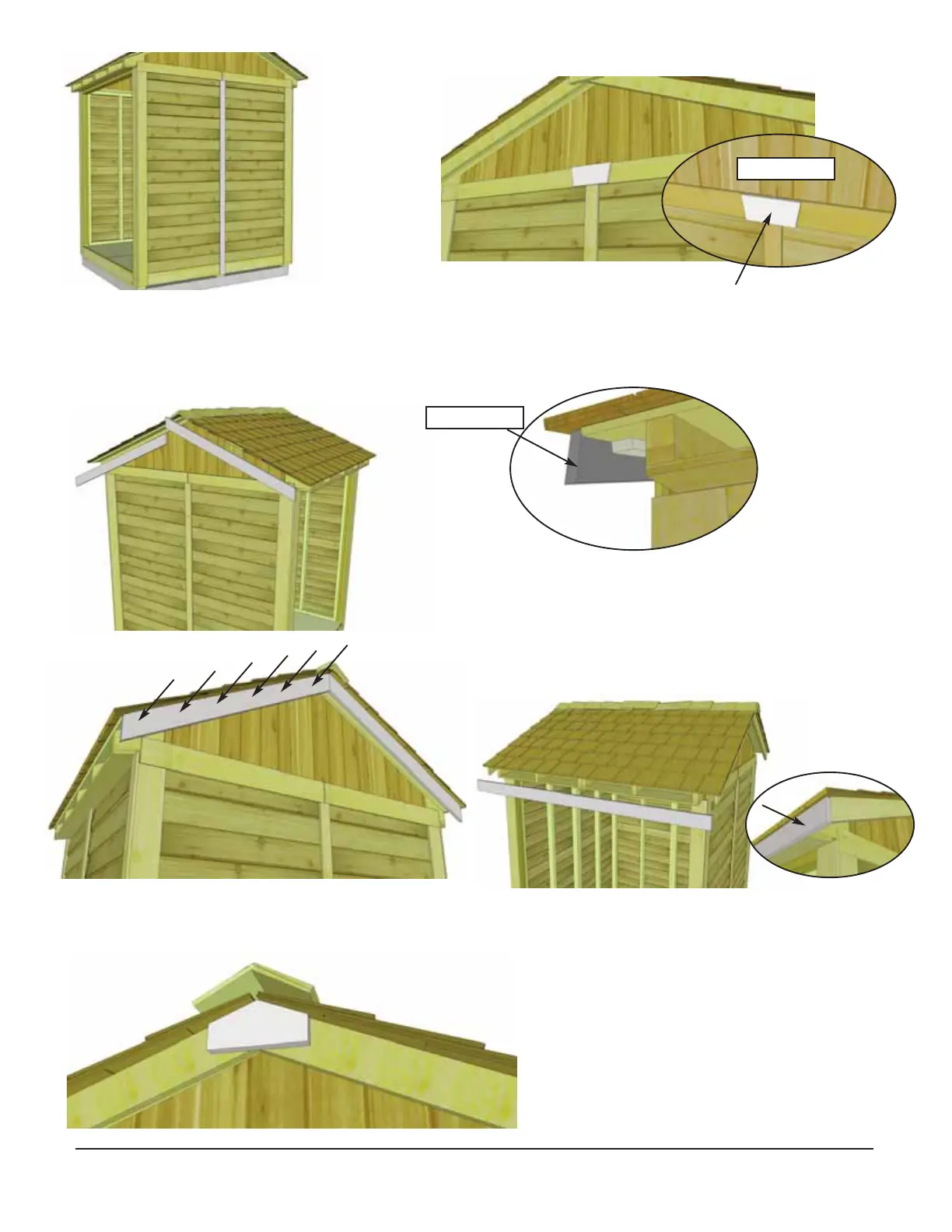

61. Attach Narrow Trim (Side Wall) - 1/2” x 2 1/2”
x 77 1/2” (Part 4I) with 8 - 1 1/2” Finishing
Nails (Part F).
62. Attach Horizontal Gable Detail Plate
(Part 4J) with 4 - 1 1/2” Finishing Nails
(Part F).
63. Attach Side Facia 3/4” x 3 1/2” x 46” (Part 4K)
to edge of plywood roof sheathing and roof cleat with
6 - 1 1/2” Finishing Nails (Part F).
64. Attach Front and Rear Facia - 3/4” x 3 1/2” x 79 1/2” (Part 4L) to ends of rafters with
10 - 1 1/2” Finishing Nails (Part F). Front Facia will cap side facia in corners.
65. Attach Pentagon Facia Plate
(Part 4M) where Side Facia meet at
the peak with 4 - 1 1/2” Finishing
Nails (Part F).
Side Facia
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 28
