67. Starting with the Left Door (Part 4N), position in opening with a 1/2” gap on bottom and
approximately 3/8” on the side. Use Shim Shingle (Part 4P) to shim door in place at the bottom.
3/4” screw
2“ Screws

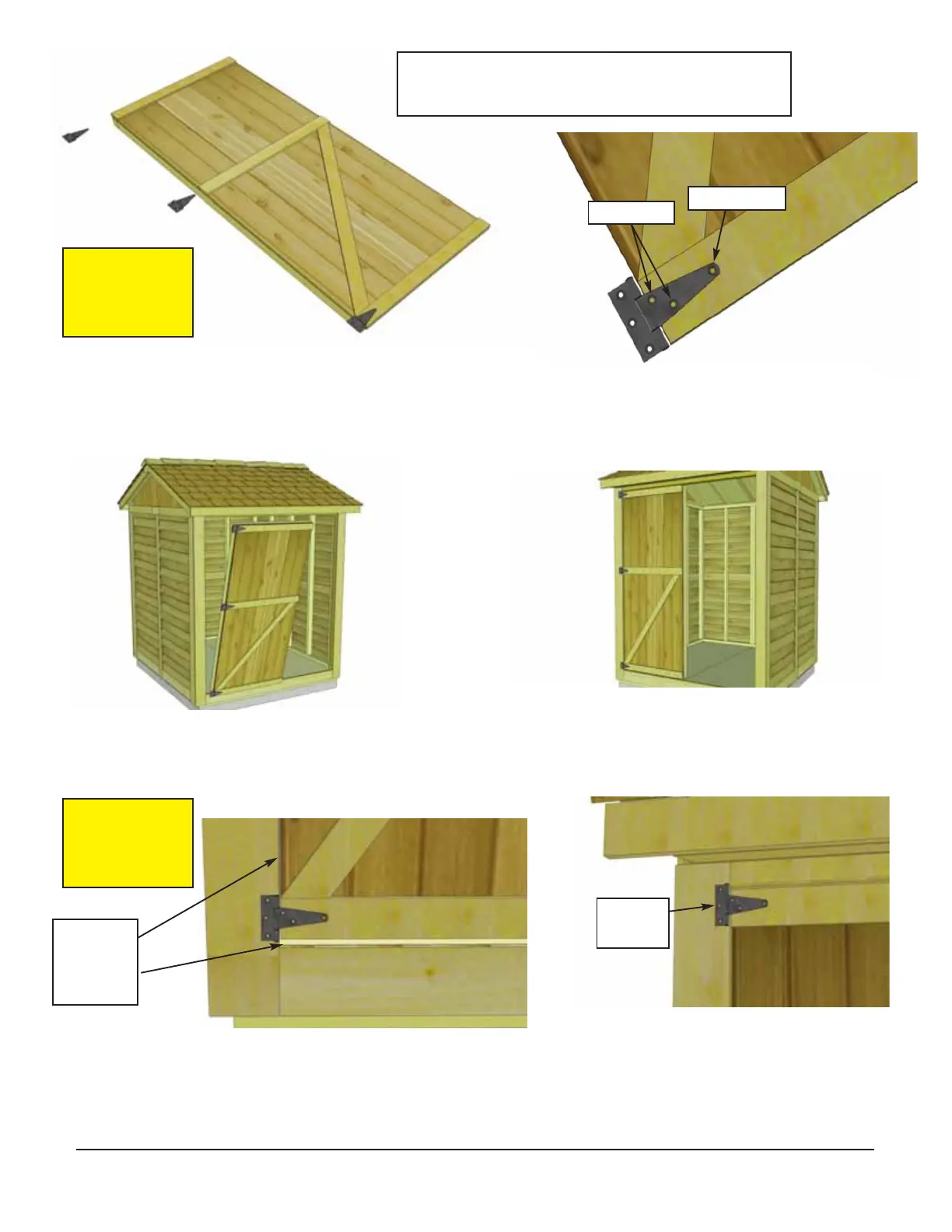

66. Locate Left and Right Doors (Parts 4N & 4O). Lay with framing down. Attach 3 Door Tee
Hinges (Part H) using Black Headed 3/4” and 2” screws (Parts I & J) as shown above.
Position hinges equally on door trim with barrel of hinge tight to edge of door. Complete both doors.
Bottom of Door
3/8” on
side.
1/2” gap
at bottom
68. With door aligned, attach door hinge to door trim with 3 - 2” Black Headed Screws (Part I).
Hint: Do not attach all the 2” screws in each hinge until both doors are positioned correctly into place.
Drill pilot holes in door trim prevent wood from splitting. When satisfied with door positioning,
complete all 2” screws then.
2” Black
Screws
Note, illustration of Hinge may not be
accurate. The # of screw holes in the hinge may
vary from three to four depending on model.
Bottom
Important-
Drill Pilot Holes
to prevent
splitting.
Important-
Drill Pilot Holes
to prevent
splitting.
