Page 15

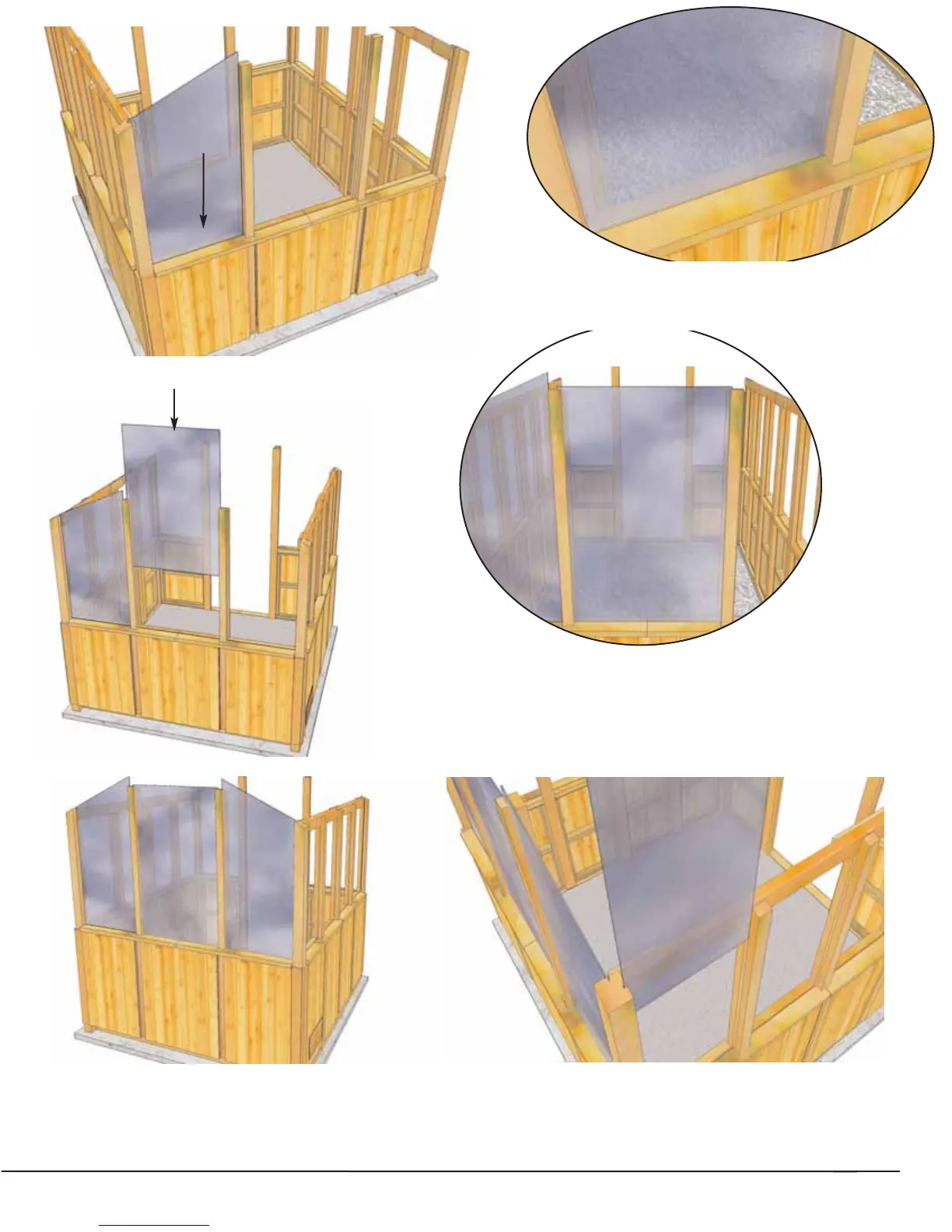

25. Slide Window down into the dado cut of the
Top Cap.
26. Locate Part L - Rear Center Polygal Window -
33 3/4” wide. Once again, peel protective plastic layer off first
and note correct side out. On a step ladder, lift window up and
position between gap of Doorway Posts. Slide down and
position as per Step 25.
27. Locate a second Part K - Outside Angle
Cut Polygal Window - 26 1/2” wide. Position
as per Step 24-25.
28. Locate Part W - Side Polygal Windows -
21” wide x 37” long.
Position as per Step 24-25.
