Page 19

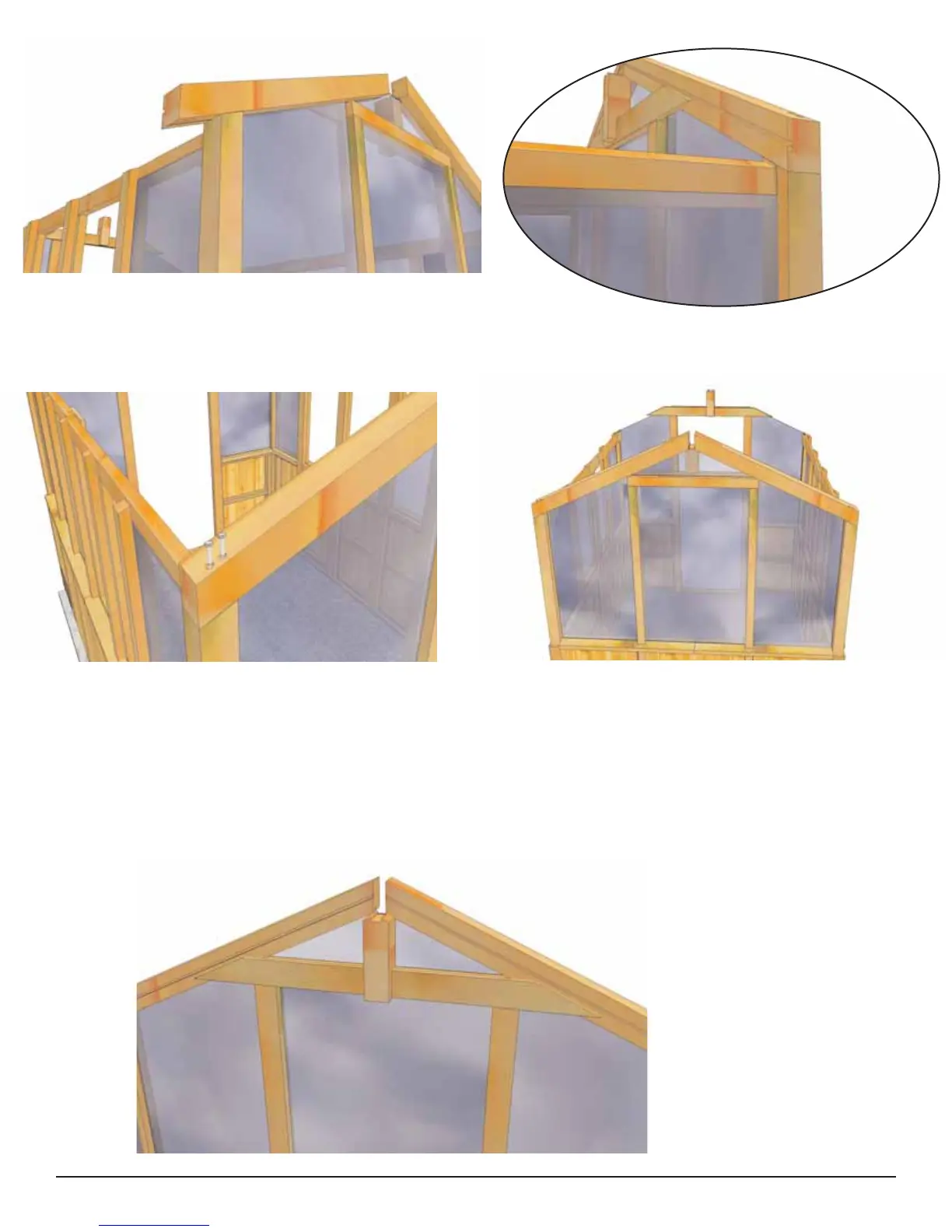

36. Carefully Slide Rafter up until end of Rafter is flush with Post as shown above. Make sure
Angle Cut Window and Triangular Window stays in dado cut of Rafter.
37. When Rafter is orientated correctly, start 2 - 6” Lag Screws with Washers with a hammer
and tighten with 9/16” socket. From the inside, attach Gable Support Frame to Rafters with
4 - 1 1/4” screws. See illustration below.
Rear Wall shown with
Rafters, King Stud and
Gable Support Frame
configured correctly.
