Page 23

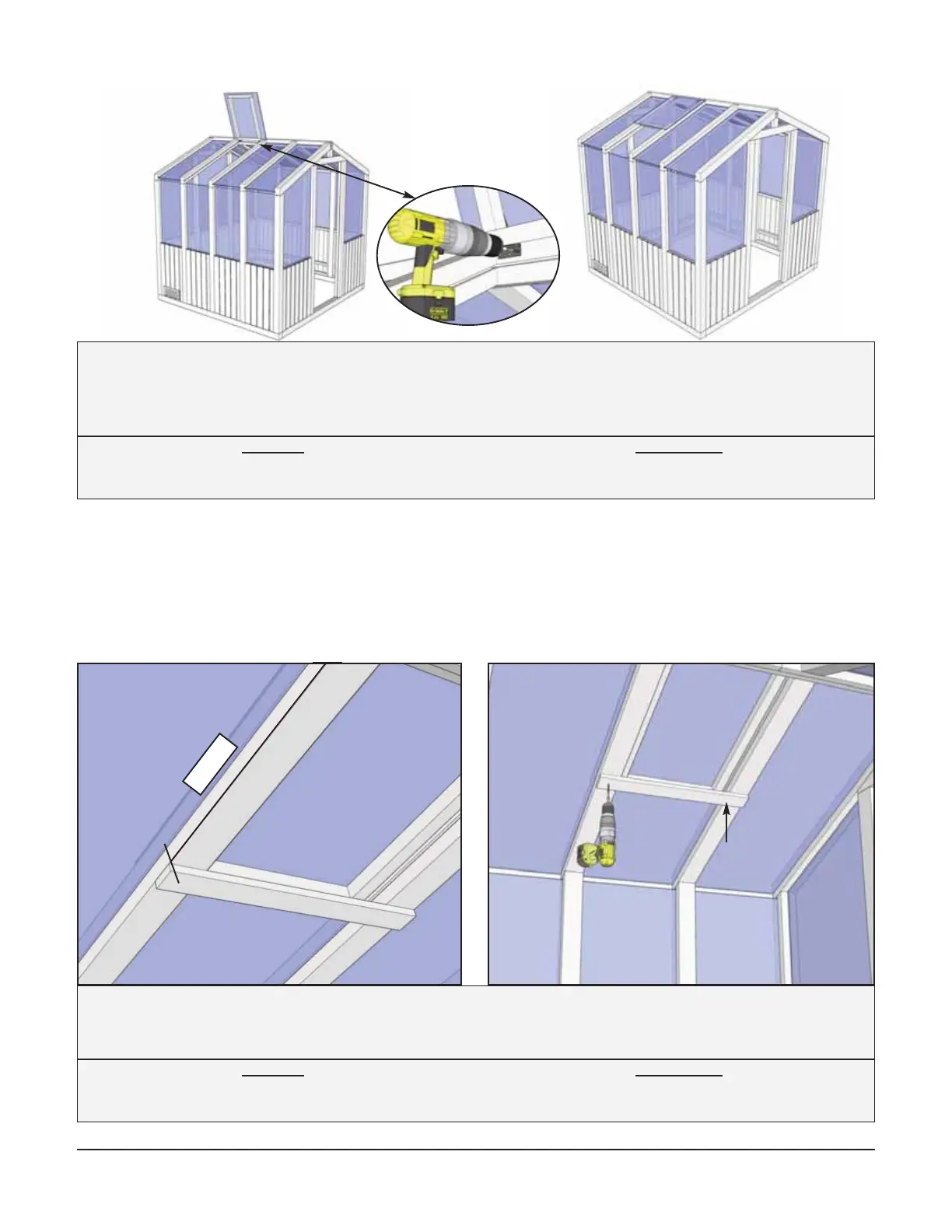

21. Locate Vent Window. Vent Window has pre installed hinges. Position window over open rafter
section left in the previous step. Poly on window will overhang the rafters. Leave 1/4” on either side
of window framing. Have one person hold the window open while the second screws the hinges into
the Ridge Board.
Pieces:
- 1x Vent Window
(1/4” x 26 1/2” x 31”)
Hardware:
- 6x 3/4” Black Headed Screws
22. Position Vent Window Cleat on underside of Rafters below the Vent Window. The Cleat should
be approximately 24 1/2” from the Ridge Board. Fasten Cleat to Rafters with 1 - 2 1/2” Brown Screw
on each end.
Pieces:
- 1x Vent Window Cleat
(3/4” x 2 1/2” x 26 1/2”)
Hardware:
- 2x 2 1/2” Brown Screws
24 1/2”
